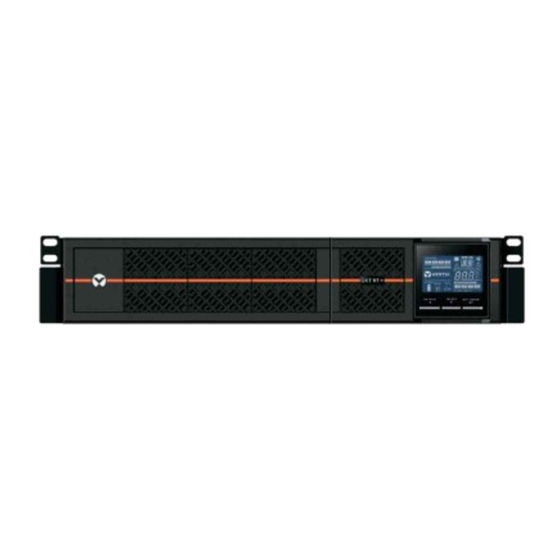

Vertiv Liebert GXT RT Series Quick Installation Manual

Liebert® GXT RT+ 1-3 kVA, 220V
Quick Installation Guide
Available Models
GXTRT-1000IRT2UXLB
IMPORTANT: Before installing,
connecting to supply or operating your
Liebert GXT RT+ UPS, please review the
Safety and Regulatory Statements sheet.
For detailed installation, operating,
maintenance and troubleshooting
information refer to the GXT RT+ User
Guide for your model available at www.
Vertiv.com.
INSTALLATION

1. Inspecting the UPS

Inspect the UPS for any signs of obvious
damage. If damage is visible, do not
proceed and calll your local Vertiv
representative.
Thank you for your recent purchase of a Vertiv UPS! We appreciate your business and
are confident that your new product will provide many years of uninterruptible power to
your connected equipment. With this purchase, you may also want to consider Vertiv's
complete line-up of Racks, PDUs, Thermal Solutions, KVM Switches, and Serial
Consoles. Vertiv also offers a broad array of Services and Extended Warranties. If you
require any support, please don't hesitate to reach out to Vertiv or one of our Resellers
or Local Rep Firms. We stand ready to support you. We sincerely hope that you'll contin-
ue to select Vertiv for all of your future infrastructure needs!
The Vertiv Team
GXTRT-3000IRT2UXLB
# Description
1

AC Input

2

Input circuit breaker

3

USB communication port

4

RS-232 communication port

5

SNMP intelligent slot (optional)

6

External battery connection

7

Output receptacles

GXTRT-1500IRT2UXLB
GXTRT-2000IRT2UXLB
1
SL-70693BR_REVB_12-20
