Vertiv Liebert GXT RT Series Quick Installation Manual

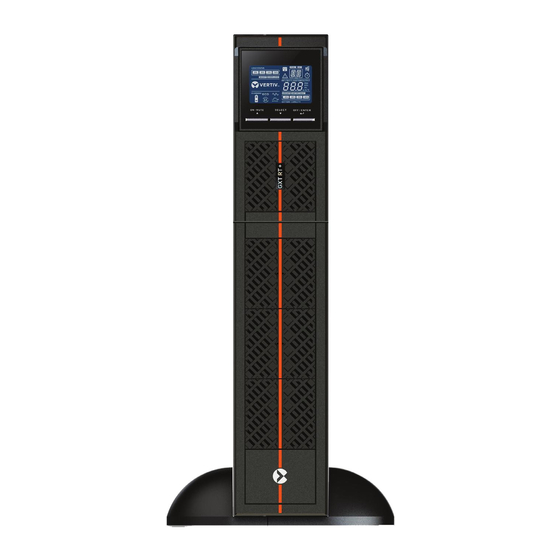

Liebert® GXT RT+ 1-3 kVA, 127 V
Quick Installation Guide
Available Models
GXTRT-1000LVRT2UXLB
GXTRT-2000LVRT2UXLB
IMPORTANT: Before installing,
connecting to supply or operating your
Liebert® GXT RT+ UPS, please review
the Safety and Regulatory Statements
sheet. For detailed installation, operating,
maintenance and troubleshooting
information refer to the GXT RT+ User
Guide for your model available at www.
Vertiv.com.
Installation
1. Inspecting the UPS
Inspect the UPS for any signs of
obvious damage. If damage is visible, do
not proceed and calll your Vertiv
represenatative.
Thank you for your recent purchase of a Vertiv UPS! We appreciate your business and
are confident that your new product will provide many years of uninterruptible power to
your connected equipment. With this purchase, you may also want to consider Vertiv's
complete line-up of Racks, PDUs, Thermal Solutions, KVM Switches, and Serial Con-
soles. Vertiv also offers a broad array of Services and Extended Warranties. If you re-
quire any support, please don't hesitate to reach out to Vertiv or one of our Resellers or
Local Rep Firms. We stand ready to support you. We sincerely hope that you'll continue
to select Vertiv for all of your future infrastructure needs!
The Vertiv Team
GXTRT-1500LVRT2UXLB
GXTRT-3000LVRT2UXLB
# Description
1 AC Input
2 Input circuit breaker
3 USB communication port
4 RS-232 communication port
SNMP intelligent slot (optional)
5
External battery connection
6
7 Output receptacles
1
SL-70692BR_REVA_10-20
