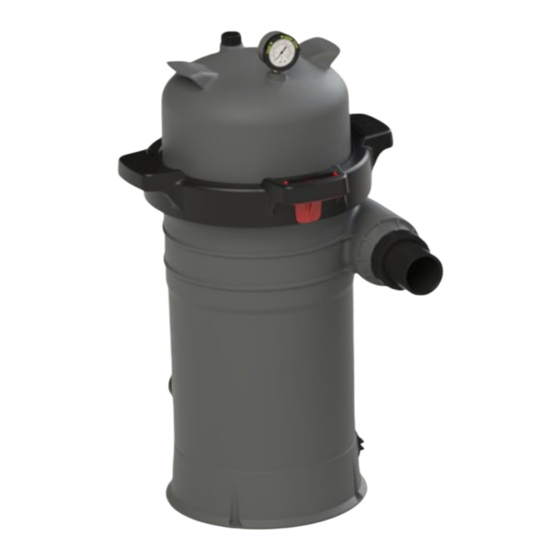

- Page 1 SINGLE ELEMENT CARTRIDGE FILTER Installation and Operation Manual EMAUX WATER TECHNOLOGY CO., LTD USER MANUAL STRIVE FOR CLEAR WATER www.emauxgroup.com Models: ICF 100 / ICF 150 ICF 200 EMFI22021501...
- Page 2 IMPORTANT SAFETY INSTRUCTIONS TABLE OF THESE OPERATING INSTRUCTIONS CONTAIN IMPORTANT INFORMATION ON THE SAFE, PROPER AND ECONOMICAL OPERATION OF THIS SWIMMING POOL CONTENT APPLIANCE. STRICT OBSERVATION OF THE OPERATING INSTRUCTIONS WILL HELP TO AVOID DANGERS, REDUCE REPAIR COSTS, SHUTDOWN TIMES AND INCREASE THE RELIABILITY AND WORKING LIFE OF THE PRODUCT.
- Page 3 Failure to follow all operating instructions and warning messages can result in property damage or severe personal injury or death. FT² M² 9140401 ICF 100 9.29 9140402 ICF 150 13.94 To reduce the risk of injury, do not permit children to use this product unless they are closely supervised at all times.
- Page 4 4.Place the manual air release valve in an OPEN position. REQUIRED CLEARANCE Pressure gauge Air release valve Release valve in open position MODEL “B” side “C” above Upper body ICF 100 32.6 82.7 18.3 46.4 11.8 Figure 3 Locking Ring Latch 91.2 18.3...
- Page 5 4.4.2 CLEAN SEAL RING AND SEAL SURFACE 4. MAINTAINING YOUR FILTER 1.Remove filter tank sealing O Ring. 2.With a clean cloth, wipe the lower filter body seal surface and clean seal of all dirt and debris. Do not use a 4.1 FILTER DISASSEMBLY INSTRUCTIONS solvent.
- Page 6 Upper filter body 5. WINTERIZING FILTER In areas where subfreezing temperatures can be expected, the filter should be drained to protect the filter from damage. Locking Ring unit 1.The filter should be disassembled and the filter cartridges elements cleaned or replaced. 2.Follow directions under FILTER DISASSEMBLY INSTRUCTIONS 3.Then follow REMOVING CARTRIDGES per instructions 4.Reassemble per FILTER RE-ASSEMBLY INSTRUCTIONS.
- Page 7 550188199 Upper Body ICF150 During the warranty period, Emaux authorized reseller will repair or replace defective parts with new parts or, at the option of Emaux, serviceable used parts that are equivalent or superior to new parts in performance. 550188200...
