Summary of Contents for emaux SSC mini

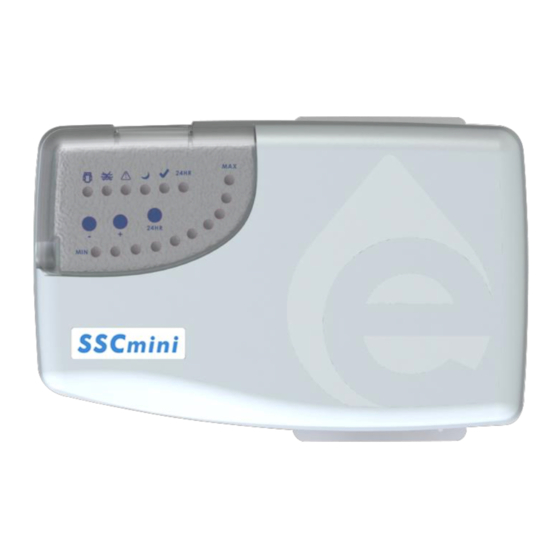

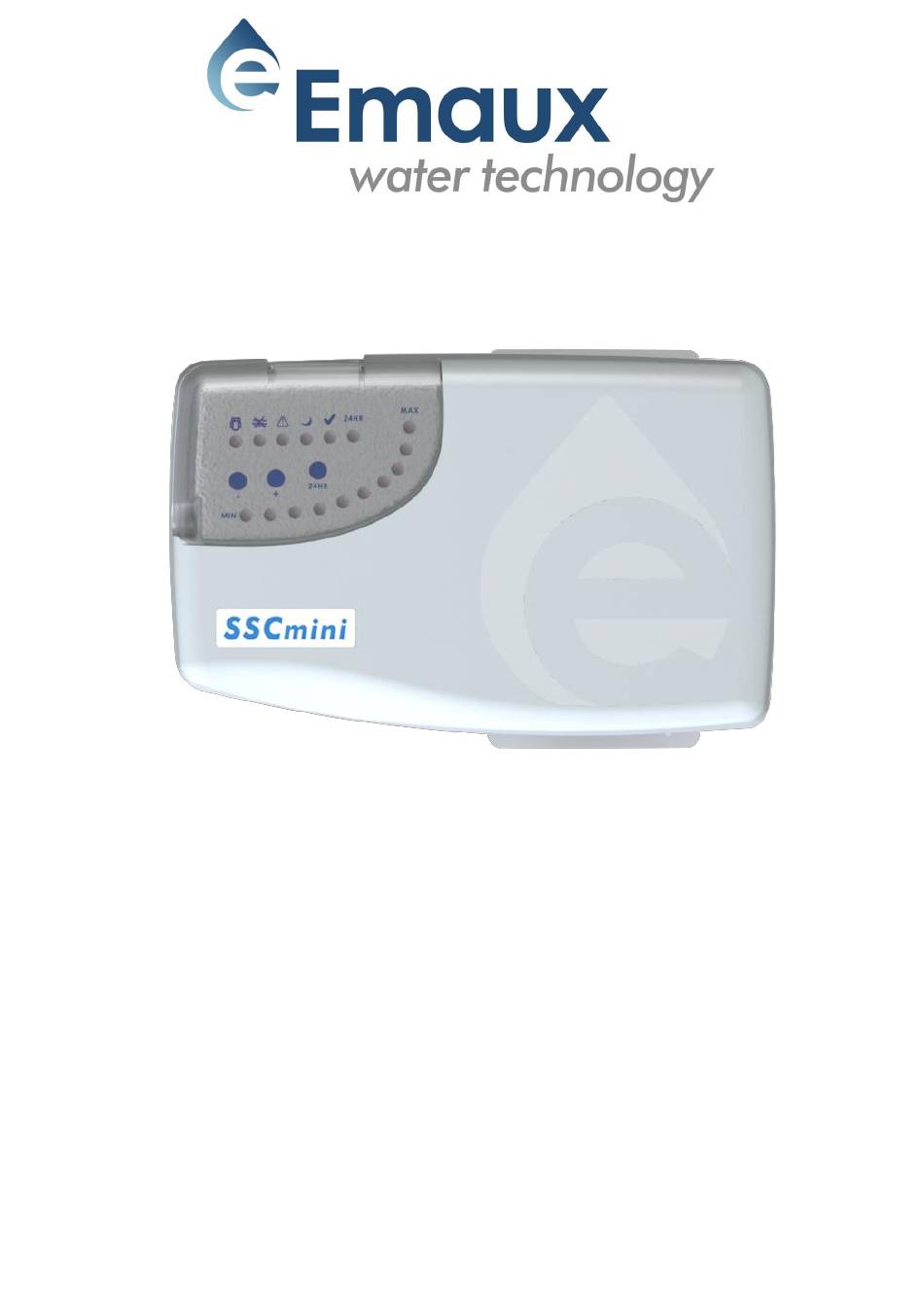

- Page 1 ® mini SALT CHLORINATOR USER MANUAL...
-
Page 2: Safety Guide
1. SAFETY GUIDE IMPORTANT: The instruction manual you are holding includes essential information on the safety measures to be implemented for installation and start-up. Therefore, the installer as well as the user must read the instructions before beginning installation and start-up. Keep this manual for future reference. -
Page 3: Control Unit
Before installing and replacing any component, disconnect the control unit from the main power supply; only replacements provided by Emaux can be used for replacing. The control unit must be installed in places with sufficient ventilation. The equipment should not be installed... -
Page 4: Water Chemistry
The following table shows the recommended levels of the chemical parameters required for a proper quality ® of water in the pool by using Emaux SSCmini Test your water periodically and ensure the levels are within the recommended range. Salt Level 4000 –... -
Page 5: Type Of Salt
The only way to remove the salt in the pool water is to partially drain the pool and refill with fresh water. 7. INSTALLATION 7.1 CONTROL UNIT INSTALLATION The Emaux SSCmini ® control unit is contained in a raintight enclosure that is suitable for outdoor mounting (IPX4 rating). - Page 6 Note: the cell can also be installed in a vertical position. 8. START-UP ® Before starting up Emaux SSCmini unit, the following points have to be taken into consideration: 1. Check if the filter is completely clean, and ensure that the swimming pool and the installation do not contain any metals dissolved or algae.
-
Page 7: Operation
The desired level of chlorine generation should be modified according the following parameters: 1. Pool water temperatures increases or decreases significantly 2. When there is a higher load of bather than normally 3. When the cell’s life time is finishing 4. - Page 8 EXAMPLE ® If you start SSCmini at 9:00 and set the work schedule at 5, then the unit will be working from 9:00 to 9:30 (Normal operation LED is ON) and in stand-by mode from 9:30 to 10:00 (Stand-by LED is ON). 09:00 –...
-
Page 9: Maintenance
10. MAINTENANCE Due to the Reverse Polarity system that avoids scale in the plates of the cell, the first action to consider for ensuring a long cell lifetime is to keep the chemical parameters always in the recommended range, especially the amount of salt, the pH and the water hardness. -
Page 10: Troubleshooting
12. TROUBLESHOOTING SSCmini ® salt chlorinator informs the user about operation status and alerts about any problems that may have occurred. Apart from “Cell life low” and “No flow” indicators, a combination of “Alarm” and one of “Work schedule” LEDs (from 1 to 10) will illuminate to inform about a fault type. INDICATOR POSSIBLE PROBLEM SOLUTION... -
Page 11: Warranty Policy
Description of the complaint/failure. c. Pictures 2. Revision: Once the complaint is received, the product quality incident will then be reviewed by Emaux Quality Department following the “Emaux Warranty Policy”. 3. Conclusion: After the investigation is completed, Emaux will inform the distributor accordingly. - Page 12 Emaux warrants any of above items from workmanship and/or material(s). Should a defect become evident during the term of warranty, Emaux will, at its option, repair or replace such item or part at its own cost and expense. Customer will need to follow the warranty claim procedures from Emaux in order to obtain the benefit on this warranty.
