- Page 1 GALAXY IDE FILTER Installation and Operation USER MANUAL Models: IDE36 / IDE48 IDE60 IDE72 EMFI23120180...
-
Page 2: Table Of Contents
TABLE OF CONTENT ..IMPORTANT SAFETY INSTRUCTIONS ..1. OVERVIEW 1.1 PRODUCT INFORMATION 1.2 DIMENSIONS ..2. INSTALLATION 3. STARTING THE PUMP AND FILTER SYSTEM ..3.1 BEFORE STARTING THE PUMP 3.2 STARTING PUMP 3.3 OPERATION ..4. MAINTAINING YOUR FILTER 4.1 VACUUMING 4.2 REMOVING THE AIR RELIEF VALVE 4.3 RE-INSTALLATION OF THE AIR RELIEF VALVE... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS THESE OPERATING INSTRUCTIONS CONTAIN IMPORTANT INFORMATION ON THE SAFE, PROPER, AND ECONOMICAL OPERATION OF THIS SWIMMING POOL APPLIANCE. STRICT OBSERVATION OF THE OPERATING INSTRUCTIONS WILL HELP TO AVOID DANGERS, REDUCE REPAIR COSTS, AND SHUTDOWN TIMES AND INCREASE THE RELIABILITY AND WORKING LIFE OF THE PRODUCT. Failure to follow the instructions in this manual may result in serious adverse health effects or even serious or fatal injury. -
Page 4: Overview

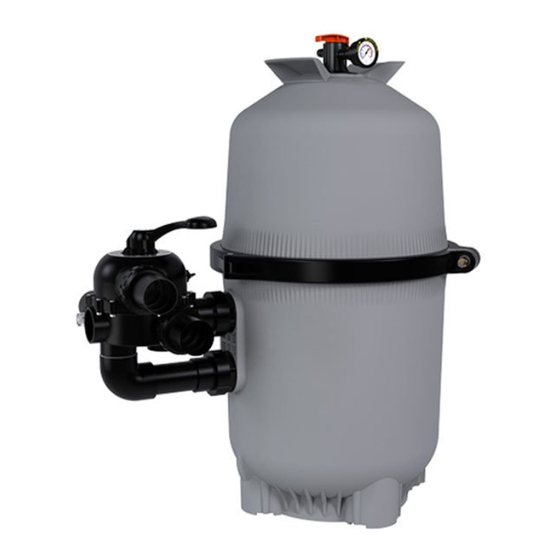

Emaux IDE is designed to use with perlite powder to replace DE powder. Perlite is a highly effective filter media that can provide superior filtration compared to DE. It has a large surface area and microscopic pores that can capture smaller particles, debris, and impurities, leading to cleaner and clearer pool water. -
Page 5: Product Information
1.1 PRODUCT INFORMATION EFFECTIVE FITRATION RECOMMANDED RECOMMANDED DESIGN FLOW RATE AREA AMOUNT OF D.E. AMOUNT OF PERLITE CODE Model FT² M² IDE36 9220001 IDE48 9220002 IDE60 9220003 IDE72 9220004 [ Flow rate is based on 2 GPM per sq. ft. of filter area. Maximum pressure 50 psi (3.45 BAR) ] 1.2 DIMENSIONS Filter body: Model... -
Page 6: Starting The Pump And Filter System
Air Relief valve Pressure gauge Handle Clamp Inlet Outlet Bottom Body REQUIRED CLEARANCE “B” side “C” above MODEL IDE36 34.88 88.6 IDE48 40.7 103.5 IDE60 48.15 122.3 IDE72 53.6 136.2 3. STARTING THE PUMP AND FILTER SYSTEM 3.1 BEFORE STARTING THE PUMP 1. - Page 7 Multiport valve Always shot off pumps in-system before switch multiport valve position. Emaux IDE DE filter pair with 6-Way Multiport Valve for IDE Filter which functions are: 1. Filter: Normal filtration 2. Waste: By-passes filter, used for vacuuming to waste or lowering water level 3.
-
Page 8: Starting Pump
1. Record the pre-coat pressure. When pressure increase 0.55 - 0.70 bar (8-10 psi) above pre-coat pressure, it is time to backwash. 2. Emaux pressure gauge provides a gauge cover. During record the pre-coat pressure, turn the START arrow to pre-coat pressure position. Monitor the... -
Page 9: Maintaining Your Filter
4. MAINTAINING YOUR FILTER This product should be installed and serviced only by qualified pool professional. Manual cleaning This product should be installed and serviced only by qualified pool technician. 1. Run backwash before manual cleaning. 2. Turn off all system pumps. 3. -
Page 10: Vacuuming
4.1 VACUUMING Vacuuming can be direct performed into the filter. If required, backwash the filter after completing the vacuuming process. 4.2 REMOVING THE AIR RELIEF VALVE The filter comes with a preinstalled manual air relief valve. Servicing the Air Relief Valve should be carried out by pool professionals only by carefully following the instructions: 1. -
Page 11: Winterizing Filter
5. WINTERIZING FILTER In areas where sub-freezing temperatures can be expected, the filter should be drained to protect the filter from damage. 1. Follow the steps in”Filter disassemble instruction” to remove and clean the filter. 2. Follow steps: FILTER REASSEMBLY INSTRUCTIONS, reassemble the filter “without” filter element cluster. 3. -
Page 12: Spare Part List
7. SPARE PART LIST 15 16 Key No. Part No. Description 550178232 Air release valve Handle 111040077 O-ring d14.3×2.5 111040078 O-ring d6×3.5 550178233 Air Release valve 117038519 Pressure gauge 60psi,plastic casing 111040079 O-ring d50×5 111000048 O-ring D76×d65.6x4.8 430138225 Handle 550058225 Handle nut 550188173 IDE36 upper body... -
Page 13: Terms Of The Warranty
It excludes all expendable parts. During the warranty period, Emaux authorized reseller will repair or replace defective parts with new parts or, at the option of Emaux, serviceable used parts that are equivalent or superior to new parts in performance. - Page 14 EMAUX WATER TECHNOLOGY CO., LTD YOUR PREMIER SUPPLIER www.emauxgroup.com...
