- Page 1 SSCnano INSTALLATION AND OPERATION MANUAL USER MANUAL DIRECTIVE 2011/65/Eu Model: SSCnano EMSW23101285...
-
Page 2: Table Of Contents
TABLE OF CONTENT ..WARNING ..1. PRODUCT INTRODUCTION 2. SPECIFICATIONS ..2.1 DIMENSION 2.2 ACCESSORIES ..3. INSTALLATION & OPERATION 3.1 INSTALLATION 3.1 .1 CONNECT WITH 50MM (1½”) UNION .2 CONNECT WITH THE 32MM(1¼”) & 38MM(1½”) FLEXI HOSE CONNECTOR 3.2 OPERATION .. -
Page 3: Warning

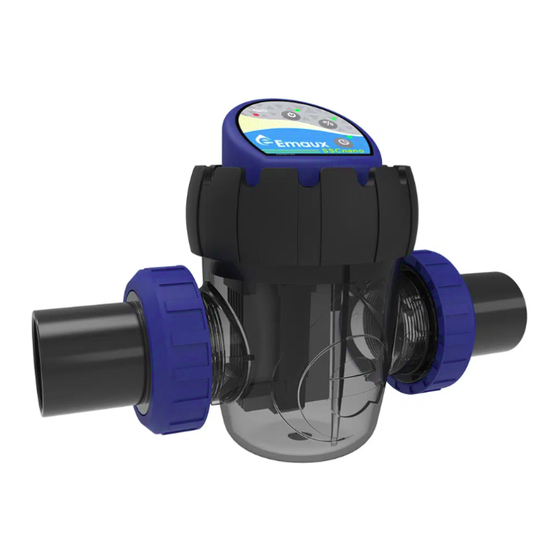

Improper installation and/or operation will void the warranty. 1. PRODUCT INTRODUCTION SSCnano is an innovative inline salt chlorinator that seamlessly synchronizes with the pump. With its preset timer offering flexible options and 4 chlorine production modes, SSCnano provides complete control over the chlorination process. Enjoy the benefits of long cell life and reduced chemical usage, thanks to its efficient and environmentally friendly design. -
Page 4: Dimension
32mm(1¼”) & 38mm(1½”) Flexi hose connector and 50mm (1½”) union installation, please refer to Part 3, Installation & Operation. The mounting stand is allowed the SSCnano place stand on the floor or wall mount. [Fig.1] Stand and Wall Mount P3 SPECIFICATIONS... -
Page 5: Installation & Operation
Flow rate 3 to 10 mᶾ/h INSTALLATION The SSCnano has an arrow mark on its body [Fig.2] showing the water flow direction. It is designed to operate with water flow rates between 3-10 mᶾ/h. Please refer to the pipe manufacturer specifications for recommended maximum flow rate. -
Page 6: Connect With 50Mm (1½") Union
3.1.1 CONNECT WITH 50MM (1½”) UNION [Fig.5] SSCnano can be installed either horizontal or vertical. The union is designed for imperial 1½” pipe and metric 50mm pipe. Pipes are required gluing to fix. [Fig.4] 3.1.2 CONNECT WITH THE 32MM(1¼”) & 38MM(1½”) FLEXI HOSE CONNECTOR The 32mm(1¼”) &... -
Page 7: Chlorine Percentage
3.2.2 CHLORINE PERCENTAGE Optimize the chlorine percentage, to suit pool size/ temperature. If the pool size is smaller than the max pool size of the SSCnano, lower the chlorine percentage proportionally. (e.g. Using SSCnano4 for a 10m³ pool, press twice to 50% of the max chlorine percentage rate.) -
Page 8: Memory Mode
The chlorine percentage setting will be saved after power down. (e.g. The chlorine percentage of the SSCnano was set to 50%. The setting will be kept if the power is cut and turned back on.) Note: The set time will not be saved and reset to default when power down. -
Page 9: Troubleshooting
NaCl Make sure the unit is connected Incorrect input voltage to the SSCnano paired adaptor. Check the wiring connection, and restart SSCnano. Cell lifetime ran out If all the lights still flash, please contact customer support for a replacement. -
Page 10: Spare Parts List
SSCnano4 Electrolytic cell （4 grams) E1330069 SSCnano6 Electrolytic cell（6 grams) E1330070 SSCnano8 Electrolytic cell（8 grams) E1330071 E1330072 SSCnano10 Electrolytic cell（10 grams) 1062510186 SSCnano PCB 111010013 SSCnano O-Ring 111040010 D116.6X1.5 O-Ring 5300410081 Electrolyser housing 111202472 O-Ring D70 x d60 x 6 430170991 2.0"... -
Page 11: Terms Of The Warranty
It excludes all expendable parts. During the warranty period, Emaux authorized reseller will repair or replace defective parts with new parts or, at the option of Emaux, serviceable used parts that are equivalent or superior to new parts in performance. - Page 12 EMAUX WATER TECHNOLOGY CO., LTD YOUR PREMIER SUPPLIER www.emauxgroup.com...
