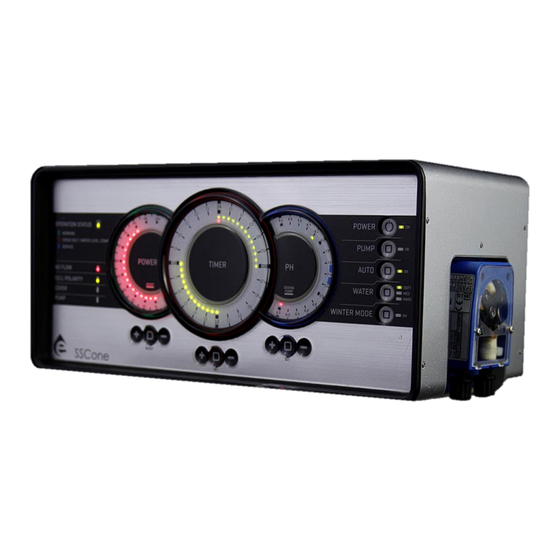

emaux SSC one User Manual

Salt chlorinator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SSC
®
one
SALT CHLORINATOR
USER MANUAL
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSC one and is the answer not in the manual?

Questions and answers

Related Manuals for emaux SSC one

Summary of Contents for emaux SSC one

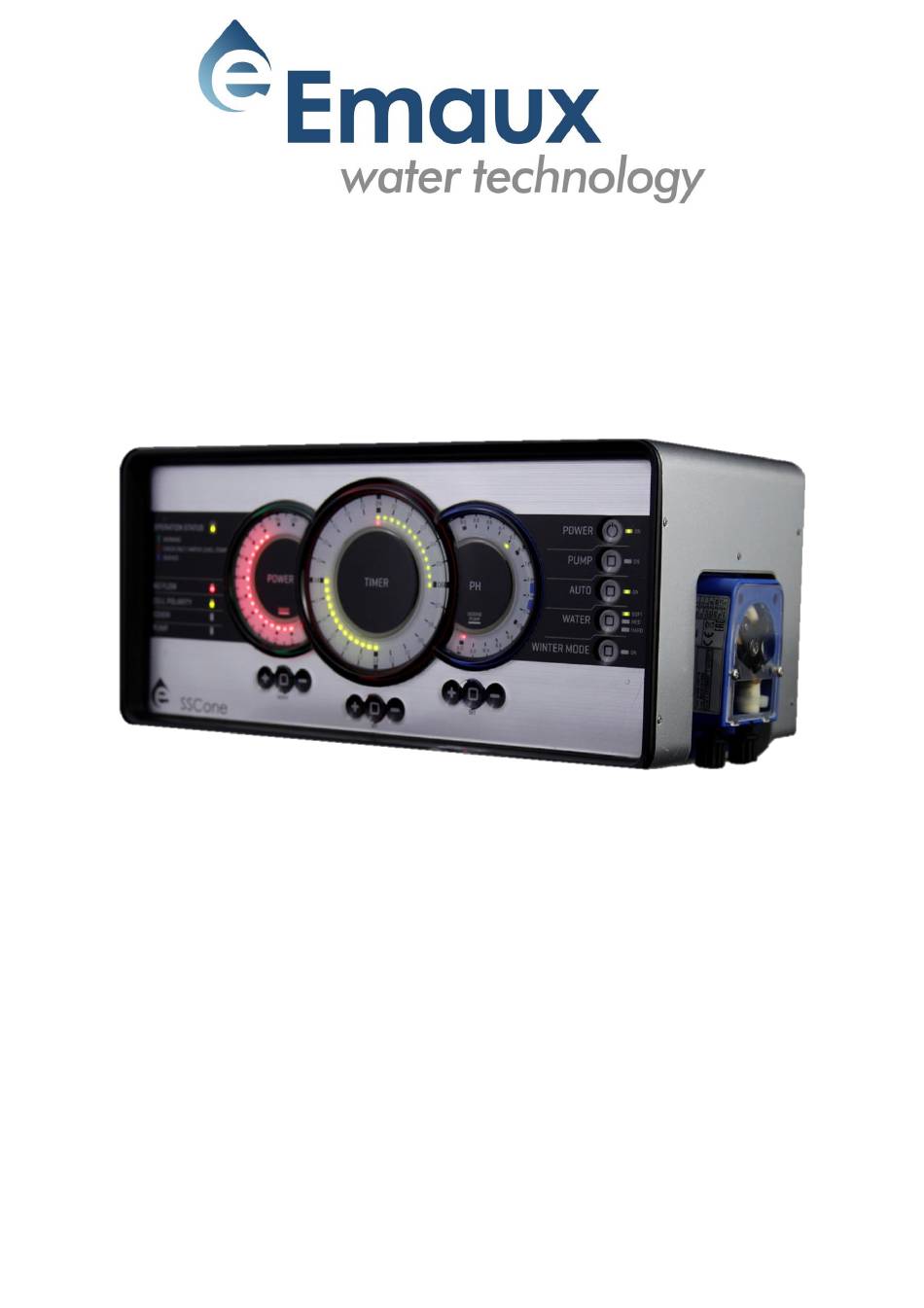

  • Page 1 ® SALT CHLORINATOR USER MANUAL...

  • Page 2: Important Safety Instructions

    3 meters of the pool or spa shall be bonded to the equipment grounding bus with copper conductors. CONTENTS OF THE PACKAGING The following component should be found inside the box: ® SSC one Control unit Buffer solution pH 7.0 Electrolytic cell Buffer solution pH 4.0 1.5 - 2”...

  • Page 3: The Control Unit

    + OH  HClO + Cl The operation requires a certain concentration of salt (4000 ppm), low enough that it normally will not be tasted. The SSC one ® automatically sanitizes your pool by converting the salt into Hypochlorous acid which kills bacteria and algae in the pool through a process called electrolysis.

  • Page 4: Water Chemistry

    The following table shows the recommended levels of the chemical parameters required for a ® proper quality of water in the pool by using Emaux SSC one Test your water periodically and ensure the levels are between the recommended range.

  • Page 5: Installation

    (IPX4 waterproof). However, the following points must be taken into consideration for ® a correct installation of the Emaux SSC one unit: 1. Install the Control Unit using the template paper sheet provided with the package in a minimum distance of 3.5 meters (11.5 ft.) from the swimming pool, 1.5 meters (5 ft.) from...

  • Page 6: Electrical Installation

    Proceed with the interconnections between the cell and the Control Unit according to the following drawing (Fig 2). 1. Connect the Control Unit to the general control box of the installation (A), so that the pump and Emaux SSC one ® unit are turned on and off simultaneously.
  • Page 7 Fig. 2 INSTALLATION OF THE PH SENSOR Install the pH saddle in a pipe with minimum diameter 50 mm and before the electrolytic cell. The pH injector saddle must be installed always after the electrolytic cell for its protection. Both must be always installed in a horizontal position. a) Saddle for the pH sensor (Fig.
  • Page 8 START-UP For starting-up the installation with the Emaux SSC one ® unit, the following points have to be taken into consideration: 1. Check if the filter is completely clean, and ensure that the swimming pool and the installation do not contain any metals dissolved or algae.

  • Page 9: Operation

    Left side indicators, right side indicators and three circle controllers (Fig. 5): Fig. 5 LEFT SIDE INDICATORS 9.1.1. Operation Status informs about the state and operation of the Emaux SSC one ® unit: SOLID LIGHTS FAST FLASHING LIGHTS SLOW FLASHING LIGHTS System is running normally.

  • Page 10: Flashing Light

    On the other hand, the pH dosing pump will continue working as normally. 9.1.3. ® Emaux SSC one unit has a self-cleaning cycle which reverses the cell polarity, reducing scale build-up into the titanium plates and maximizing the cell life time.
  • Page 11 (Auto Mode). working. 9.2.3. SOLID LIGHT NO LIGHT The mode AUTO is switched off and the system will not Emaux SSC one ® unit produce chlorine, even if the filtration pump is working. AUTO will operate according If filtration pump is working in mode Auto, it will be to the time scheduled.
  • Page 12 9.2.5. As in the Pool Cover indicator (chapter 9.1.4), in Winter Mode the system will turn down the chlorine production slowly to 50% of the current setting. If any automatic pool cover is installed due to winterizing the pool, the system will detect when the cover is closed and will drop down the power value 50% more.

  • Page 13: Power Controller

    In this cases, by using BOOST button, the Emaux SSC one ® will generate chlorine at 100% of output power during 24 hours or until the same button is pressed again by the user. How to proceed: 1.
  • Page 14 9.3.3. PH CONTROLLER pH Controller regulates pH value of a swimming pool thanks to the pH Probe readings and the control of a peristaltic dosing pump. Emaux SSC one ® unit will read the signal from the pH probe, will compare it with the desired pH value, and will switch on/off the dosing pump accordingly.
  • Page 15 The dosage is carried out in cycles of 5 minutes dosing followed by 20 minutes of stand-by. These cycles avoid over-dosage of acid in the pool. If after 20 minutes the current pH does not reach the Set Point, the dosing pump will switch on again for 5 minutes more or until the pH reaches the set point.

  • Page 16: Maintenance

    If scale has been formed in the plates of the cell, the first cleaning procedure is the following: ® 1 . Turn off power to the SSC one unit before removing the electrolytic cell. 2 . Once removed, look inside the cell and inspect for scale formation (light colored crusty or flaky deposits) on the plates and for any debris which has passed through the filter and caught on the plates.
  • Page 17 During a period of low operation, such as winter, the procedures are as following: a) Minimum working operation  Activate WINTER MODE. The production of chlorine will drop at half.  If an automatic pool cover is installed and connected to the SSC one ® unit, the system will detect it and the production will drop the half again.

  • Page 18: Troubleshooting

    12. TROUBLESHOOTING PROBLEM SOLUTION Check the cell plates. 1. Solid red light: Cell fault. No Verify the electrical cables between the cell and cell connected. the Control unit. Check the salinity of the water. Renew the water of the pool with fresh water. 2.

  • Page 19: Warranty Policy

    7. Damage caused by water freezing inside the product. 8. Accident damage, fire or other circumstances outside the control of Emaux. 9. Items repaired or altered in any way by any person that is not authorized by Emaux. 10. Wear & tear parts.
  • Page 20 Emaux warrants any of above items from workmanship and/or material(s). Should a defect become evident during the term of warranty, Emaux will, at its option, repair or replace such item or part at its own cost and expense. Customer will need to follow the warranty claim procedures from Emaux in order to obtain the benefit on this warranty.
