2.4/5 GHz 6 dBi Wi-Fi Quad Patch Ceiling Mounted
Specifications
SKU
Model Number
Frequency Range
Gain
Vertical Beamwidth:
Horizontal Beamwidth:
Polarization:
VSWR
Maximum Input Power
# of Ports
Connector Type
Cable Length
Dimensions
Weight
Mounting Method(s)
Terrawave by Ventev
www.ventevinfra.com
Antenna with 4 RPTNC Male Connectors
280856
M6060060P23602NBC
2.4/2.5 GHz
6 dBi
55° ± 10°/ 35° ± 10°
55° ± 10°/ 35° ± 10°
Vertical
≤ 2/ ≤ 2.5
20 Watts
4
RPTNC Male
36"
10.3 x 10.3 x 1.4"
4.1 lb
Ceiling Mounting
Ventev's 2.4/5 GHz 6 dBi Quad Patch Ceiling Mounted
Antenna is ideal for high density venues such as lecture halls,
auditoriums and convention centers. With dual-band leads,
each cable supports both 2.4 and 5 GHz to support demanding
indoor applications in 802.11n, 802.11ac and Wi-Fi 6 wireless
communication systems. It features four cables with RPTNC
plugs exiting from the back of the antenna and a low-profile
design.
Every Ventev antenna is covered by the company's two-year
TerraNet warranty program.
For more information or to purchase, contact Ventev:
800.851.4965 or sales@ventev.com.

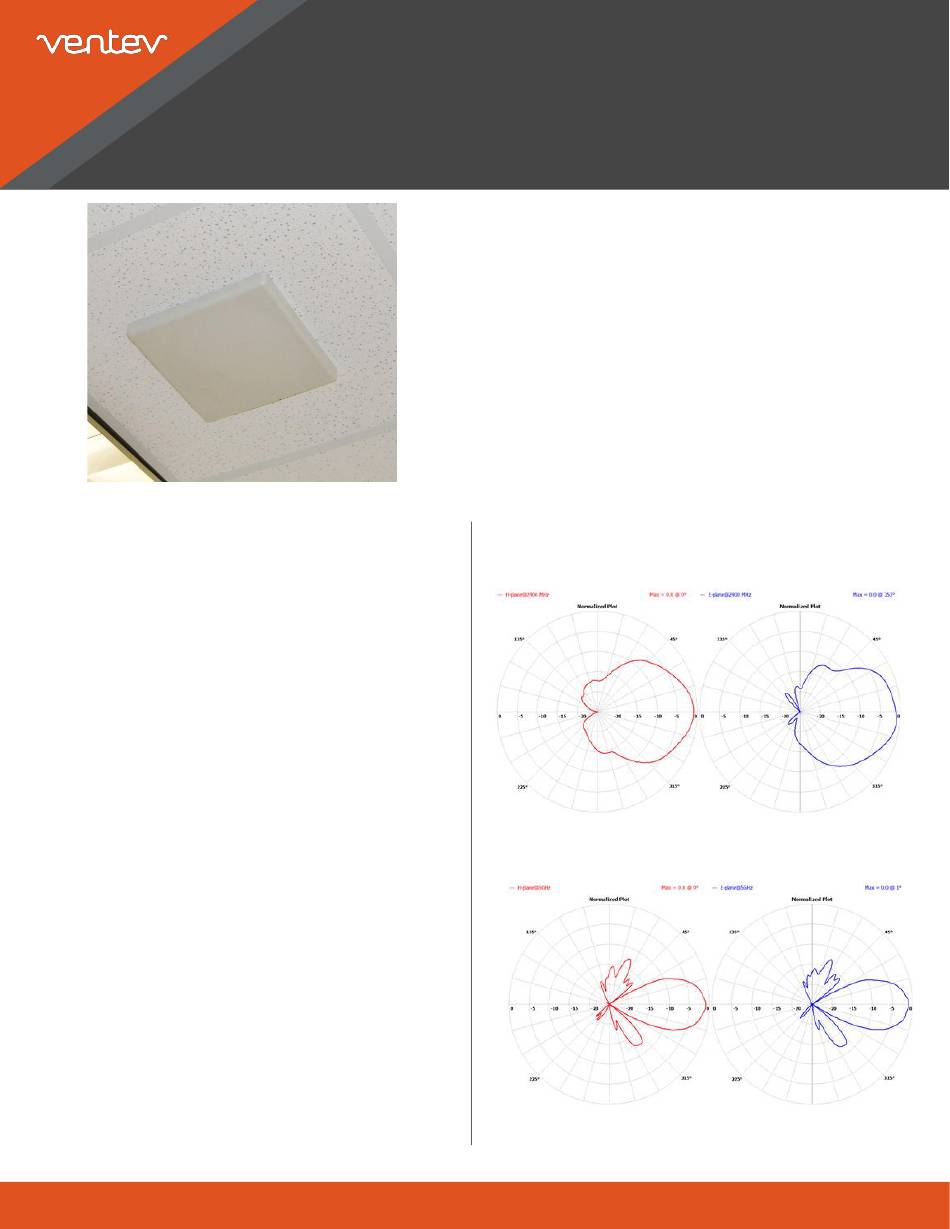

RADIATION PATTERNS
