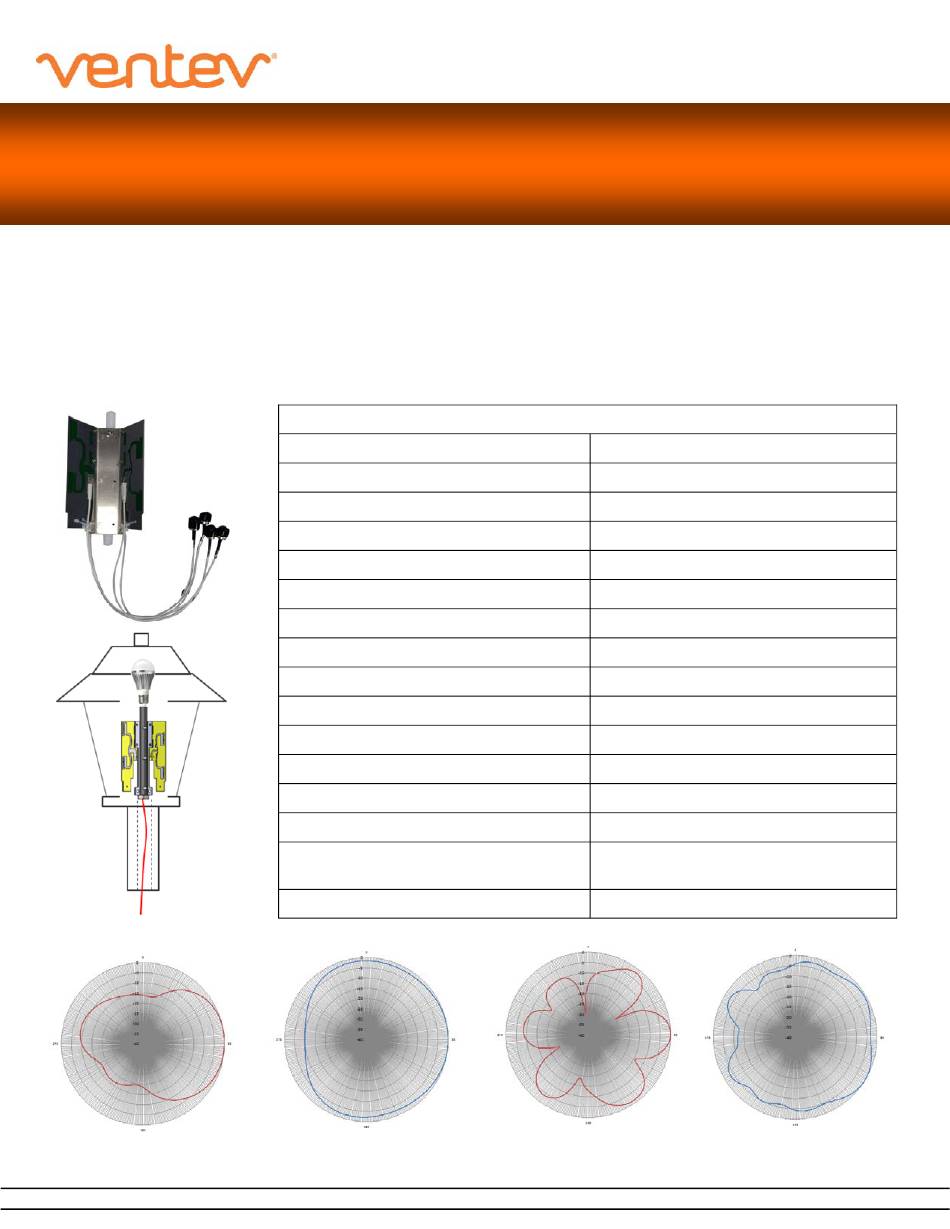

Ventev M6060060O1D41202L Quick Start Manual

2.4/5 GHz 6 dBi Omnidirectional Wi-Fi Antenna with 4 RPTNC Plugs
for High Intensity Discharge (HID) Light Globes
Ventev's TerraWave 2.4/5 GHz 6 dBi Multiple-Input and Multiple-Output (MIMO) Omnidirectional Wi-Fi Antenna for HID
Light Globes transforms outdoor light globes into Wi-Fi hot spots. The antenna is designed to operate with Cisco's
802.11ac Waves I & II WLAN outdoor access points including the 1570 and IW3700 models. This unique antenna installs
inside outdoor lighting globes to provide concealed, high-performance Wi-Fi that blends inconspicuously into the
environment. The antenna unit, with integrated mount and radiating elements, delivers assembled and installs around
and secures to the light globe's internal conduit. See mounting instructions on page 2. Every Ventev TerraWave
antenna is RoHS compliant, and is covered by the two-year TerraNet warranty program. For more information, contact
Ventev 800-851-4965 or sales@ventev.com.
Antenna integrated into
HID Light Globe
2.4 GHz
E-Plane Pattern
www.ventev.com/infra
Model
Frequency Range
Bandwidth
Gain
Vertical Beamwidth
Horizontal Beamwidth
VSWR
Nominal Impedance
Polarization
Max Power Rating
Dimensions
Weight
Connector
Number/Length/Type Pigtails
Mounting Method
Operating Temperature
H-Plane Pattern
Specifications
M6060060O1D41202L
2400~2500 / 4900~5850 MHz
4 x 12" Pigtails / RG-316
Installs around and secures to internal conduit.
Maximum conduit size is .5" diameter
5 GHz
E-Plane Pattern
sales@ventev.com
100 / 950 MHz
6 dBi
65°/20°
360°/360°
≤2.0 / ≤2.0
50 Ohms
Vertical
10W
3.75" x 3.3" x 5.5"
8.8 oz
4 x RPTNC Plug
- 40° F to +140° F
H-Plane Pattern
