Ventev M6050060D37202WST Quick Manual

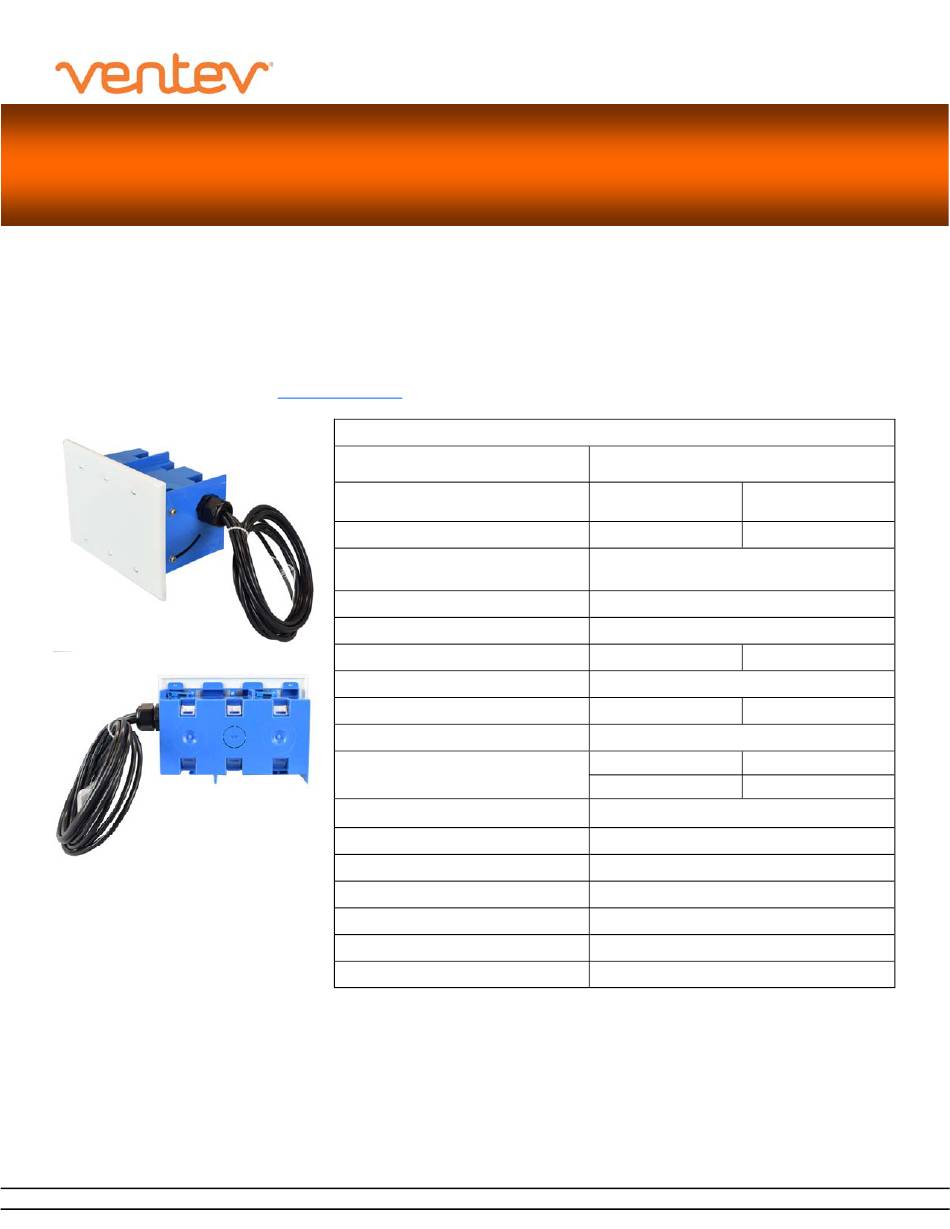

Ventev's TerraWave 2.4/5 GHz Junction Box Wi-Fi Antenna is concealed within a standard three-gang electrical box.
The antenna's cover plate looks like a standard junction box cover, providing building managers, IT network
operators, and building architects with an aesthetically appealing Wi-Fi antenna that will blend into existing room
décor for "out of sight" coverage and capacity. The antenna is designed to be installed within a dry wall cut-out
where the 6' leads can connect to a nearby access point. The directional antenna provides 0-45 degree articulation to
provide excellent coverage and capacity in one or more rooms Every Ventev TerraWave antenna is covered by the
company's two-year warranty program. For questions and to purchase product, contact a regional sales executive at
210-375-8482, 800-851-4965 or sales@ventev.com.
www.Ventev.com/Infra

2.4/5 GHz Junction Box Wi-Fi Antenna

Model Number
Frequency Range
Gain
Polarization
Horizontal Beamwidth
Vertical Beamwidth
Front to Back Ratio
VSWR/Impedance
Isolation—Cross Polarized Ports
Input Power
Dimensions (L x W x H)
Connector type
Pigtail Length
Mounting Options
Application Environment
Construction
Tilt Option
Radome Color

Specifications

2400 — 2484 MHz
Gang Box Only
With Cover
sales@ventev.com
M6050060D37202WST
4900 — 5885 MHz
5dBi 6dBi
2 x Horizontal
2 x Vertical
75º ± 15º
75º ± 15º
9 dB 12 dB
2:1
12 dB 20 dB
20 W
6" x 3.7'' x 3.6''
6.75" x 3.85" x 4.88"
4 x RPTNC Plug
72"/ 6'
Wall Mount
Inside Drywall Installation
Three Gang Electrical Box
0° - 45°
White
