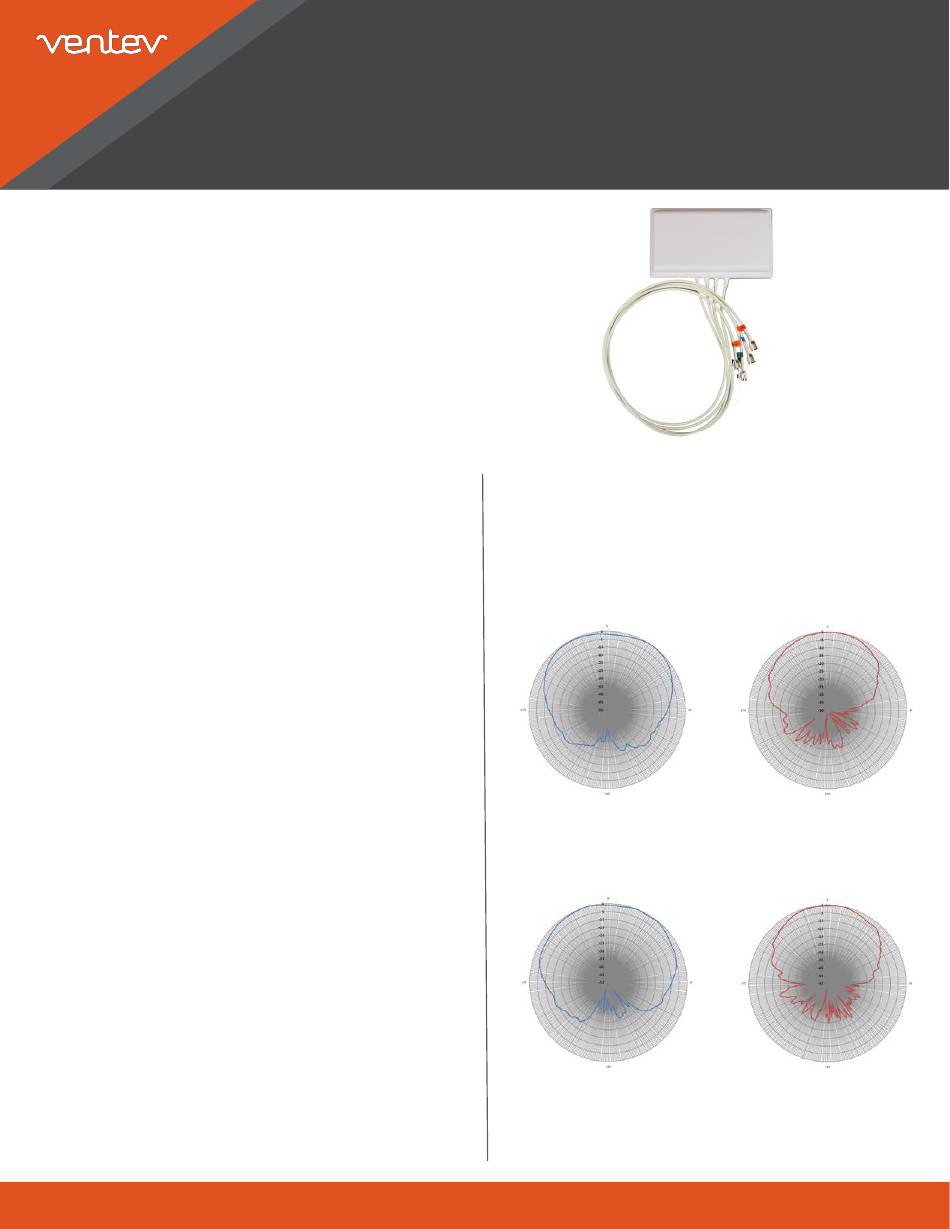

2.4/5 GHz 6 dBi Wi-Fi Directional Antenna with 4 RPTNC Male
Ventev's 802.11n/ac antennas are designed to operate
with any manufacturer's enterprise-class APs. This 2.4/5
GHz 6 dBi directional antenna features four dual-band
antennas in a single unit, where each pigtail is 2.4 and 5
GHz. This solution allows engineers to simplify
deployments by using only one antenna for dual band
access points.
Every Ventev antenna is RoHS compliant and is covered
by Ventev's two-year TerraNet warranty program.
For more information or to purchase, contact Ventev:
800.851.4965 or sales@ventev.com.
SPECIFICATIONS
Sku
Model Number
Frequency Range
Gain
Vertical Beamwidth
Horizontal Beamwidth
Polarization
Bandwidth
VSWR
Maximum Input Power
Nonimal Impedance
Number of Ports/Cable
Connector Type
Dimensions
Weight
Radome Color and Material
Operating Temperature
www.ventev.com/infra
Connectors
212207
M6060606P1D49602V
2.4/5 GHz
6 dBi
60°/70°
105°/125°
Vertical
100/700 MHz
≤ 2.0
20W
50 Ohm
4 x 96"
RPTNC Male
10 x 5.6 x 1.4"
1.2 lbs.
White/ UV ABS
-40°F to 158°F
sales@ventev.com
Radiation Patterns
2.4 GHz
H Plane
5.0 GHz
H Plane
E Plane
E Plane
Terrawave by Ventev
800.851.4965
