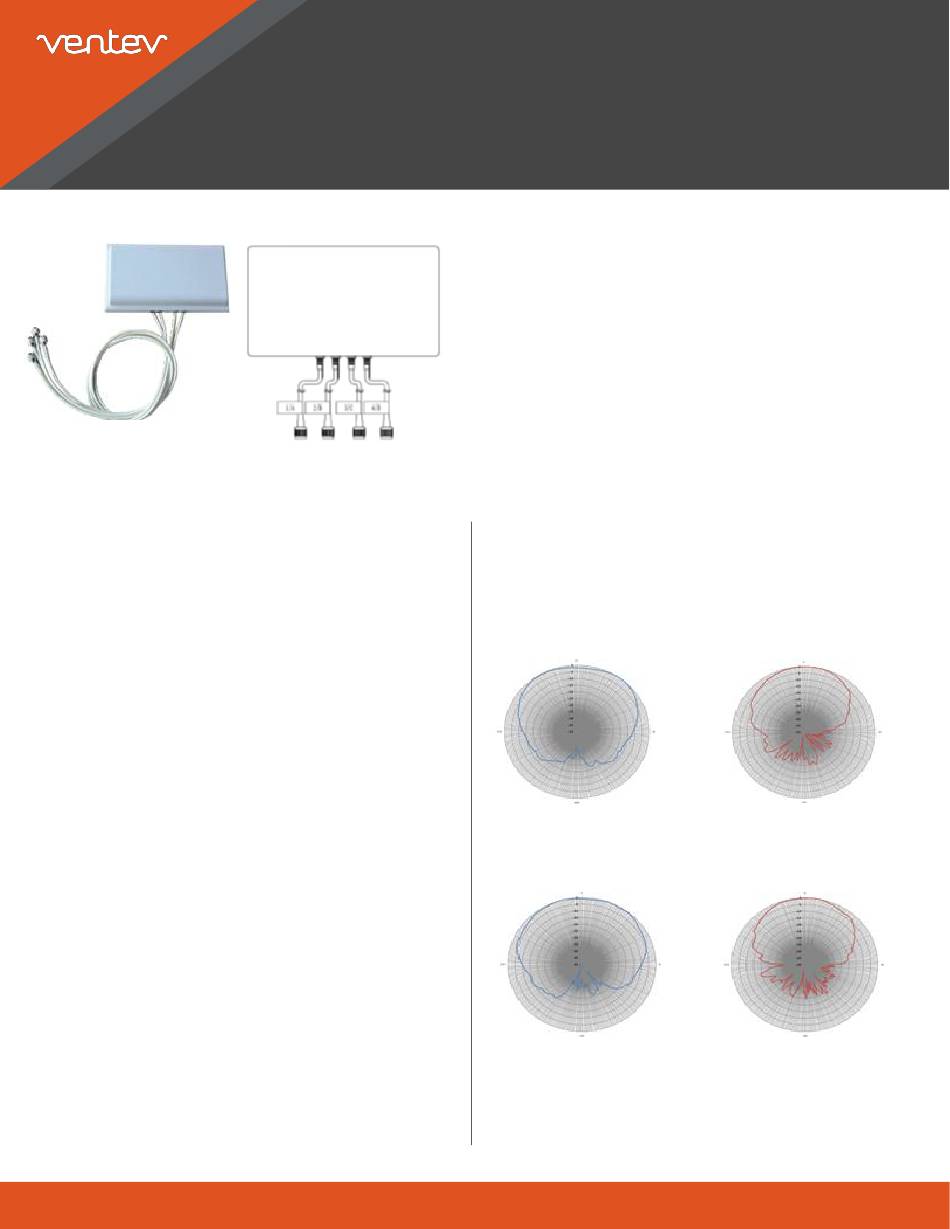

Ventev Terrawave 510701 Quick Start Manual

2.4/5 Ghz 6 dBi Wi-Fi Patch Antenna with 4 RPTNC Male
SPECIFICATIONS
510701
SKU:
M6060060P1D43602M
Model Number:
2.4/5 Ghz
Frequency Range:
100/700 Mhz
Bandwidth:
6 dBi
Gain:
60°/70°
Vertical Beamwidth:
Vertical
Polarization:
≤2.0
VSWR:
≥20dB
Isolation:
20W
Maximum Input Power:
4
# of Ports:
RTPNC Male
Connector Type:
36"
Antenna Cable:
10 x 5.6 x 1.4"
Dimensions:
1.20 lbs.
Weight:
-40°F to 158°F
Operating Temperature:
60 mph
Wind Rating:
www.ventev.com/infra
Connectors
Ventev's 2.4/5 GHz 6 dBi directional antenna features four
dual-band antennas in a single unit. Each antenna pigtail is
dual-band with RPTNC Male connectors. This antenna allows
wireless engineers to simplify deployments by using only one
antenna for dual band access points. Deployment is further
simplified by the multiple mounting options: the antenna ships
with Ventev's Universal Articulating Mount (SKU 384807), and
the back panel hole patterns are also compatible with Ventev's
Cisco Co-Locating Mounts (SKUs 201891, 212382, and
243706, sold separately).
Every Ventev antenna is RoHS compliant and covered by
Ventev's two-year TerraNet warranty program.
For more information or to purchase, contact Ventev:
800.851.4965 or sales@ventev.com.
RADIATION PATTERNS
H Plane
H Plane
sales@ventev.com
2.4 Ghz
E Plane
5 Ghz
E Plane
