The new TerraWave Compact Horizontal Wall Mount with Universal T-Bar Mounting Plate is designed to provide optimal

Wi-Fi coverage indoors. The mount can comfortably fit most indoor Access Points and provides maximum protection from

dust and tampering without RF interference. Mounts to any wall surface, making it ideal for warehouses, hospitals,

campuses and universities. Designed using powder-coated aluminum, this lightweight mount is easy to deploy and

ensures safe and reliable installation.

Step 1 - Open the lid of the enclosure by pulling the lid

Forward and lifting up to release the locking tabs on the lid

Step 2 – Depending on the AP and bracket being used follow

the correct figure:

www.terra-wave.com

Assembly Instructions

Compact Wall Mount

Assembly Instructions

sales@ventev.com

Assembly Components

◊ Qty 1 wall mount with lid

assembled

◊ Qty 4 Screws #8-32

◊ Qty 1 Cotter Pin

1-800-851-4965

Table of Contents

Do you have a question about the TerraWave and is the answer not in the manual?

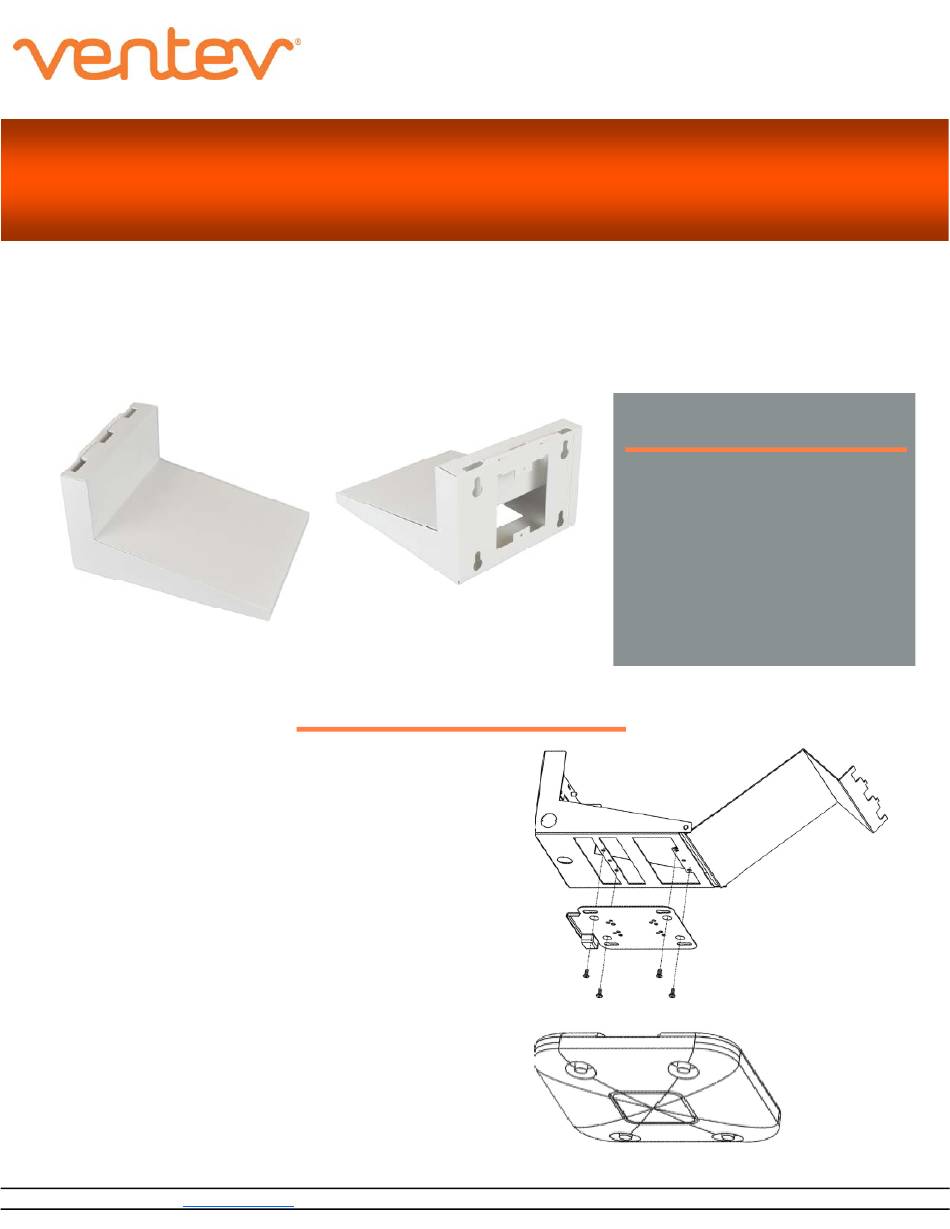

Page 1 Assembly Instructions Compact Wall Mount The new TerraWave Compact Horizontal Wall Mount with Universal T-Bar Mounting Plate is designed to provide optimal Wi-Fi coverage indoors. The mount can comfortably fit most indoor Access Points and provides maximum protection from dust and tampering without RF interference. Mounts to any wall surface, making it ideal for warehouses, hospitals, campuses and universities.
