Ventev M6060060P1D43699D Quick Start Manual

2.4/5GHz 6dBi Wi-Fi Directional Antenna

SPECIFICATIONS

SKU: 273519
Model Number: M6060060P1D43699D
Frequency Range 2400-2500MHz I 5150 - 5850MHz
Gain 6dBi
Bandw idth 100MHz 700MHz
Polarization Vertical
Horizontal beamw idth 105°/125°
Vertical beamw idth 60°/70°
VSWR ≤ 2.0
Isolation ≥20dBi
Nominal Impedance 50 Ohms
Maximum Input Pow er 20W
Connector: 4 Port DART
Cable Length 36"
Dimensions 10.0" x 5.6" x 1.4"
Antenna Weight 1.2 lbs
Randome Material and Color
Operating Temperature (F°) -40° ~ +158°
Wind Load 60 mph
w w w.ventev.com/infra
with 4 Port DART Connector
UV ABS, White
Ventev's 6 dBi Directional antenna with 4 Port DART
connector is designed to operate with Cisco 802.11AX
APs. This 2.4/5 GHz directional antenna features four dual-
band antennas in a single unit, where each port is 2.4 and
5 GHz. The antenna is a functional equivalent of Cisco's
2566P4W antenna, with the gain and beamwidths required
to deliver on user demand for high capacity connectivity.
Every Ventev antenna is RoHS compliant and is covered
by Ventev's two-year TerraNet warranty program.
For more information or to purchase, contact Ventev:
800.851.4965 or sales@ventev.com.

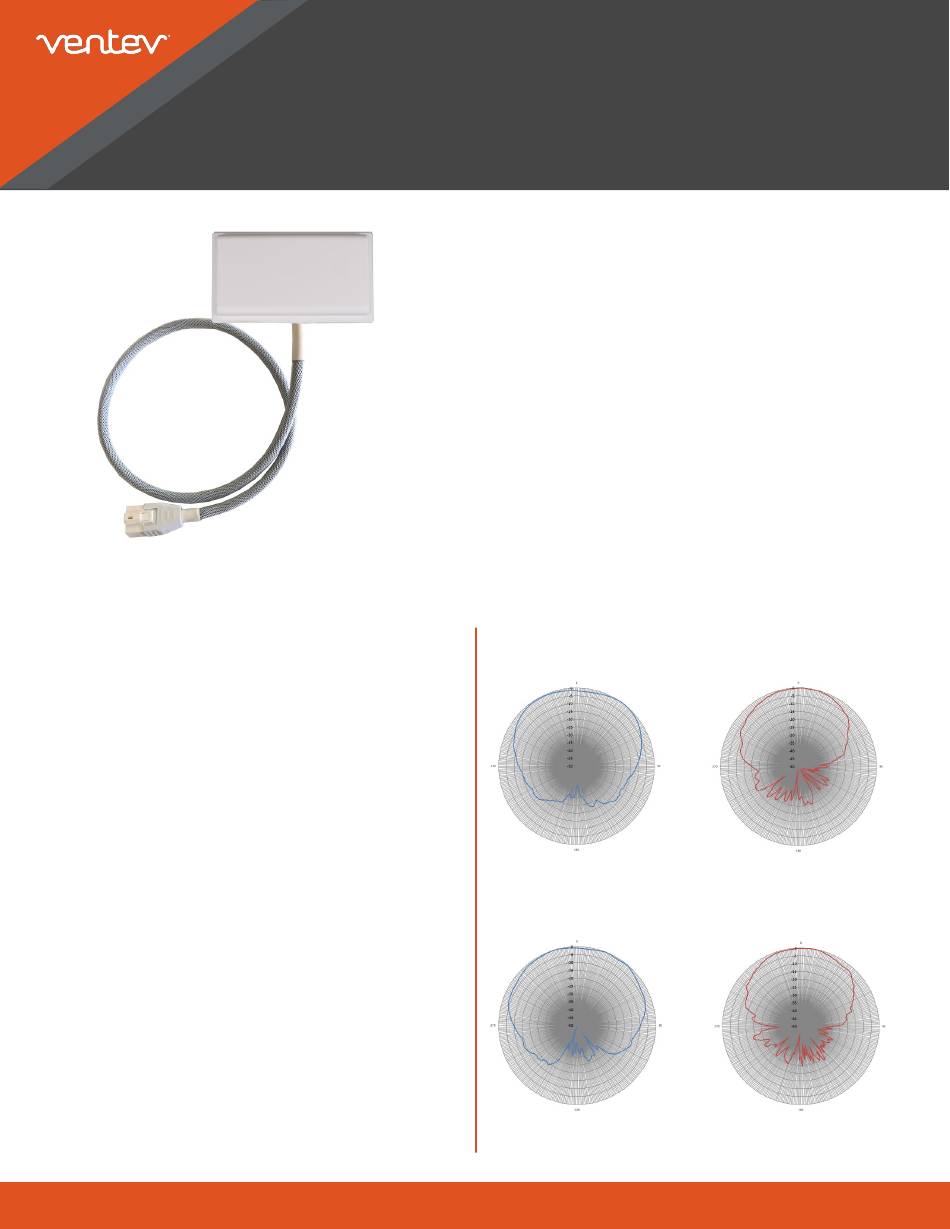

RADIATION PATTERNS

H Plane
H Plane
sales@ventev.com
E Plane
2.4 GHz
E Plane
5 GHz
800.851.4965
