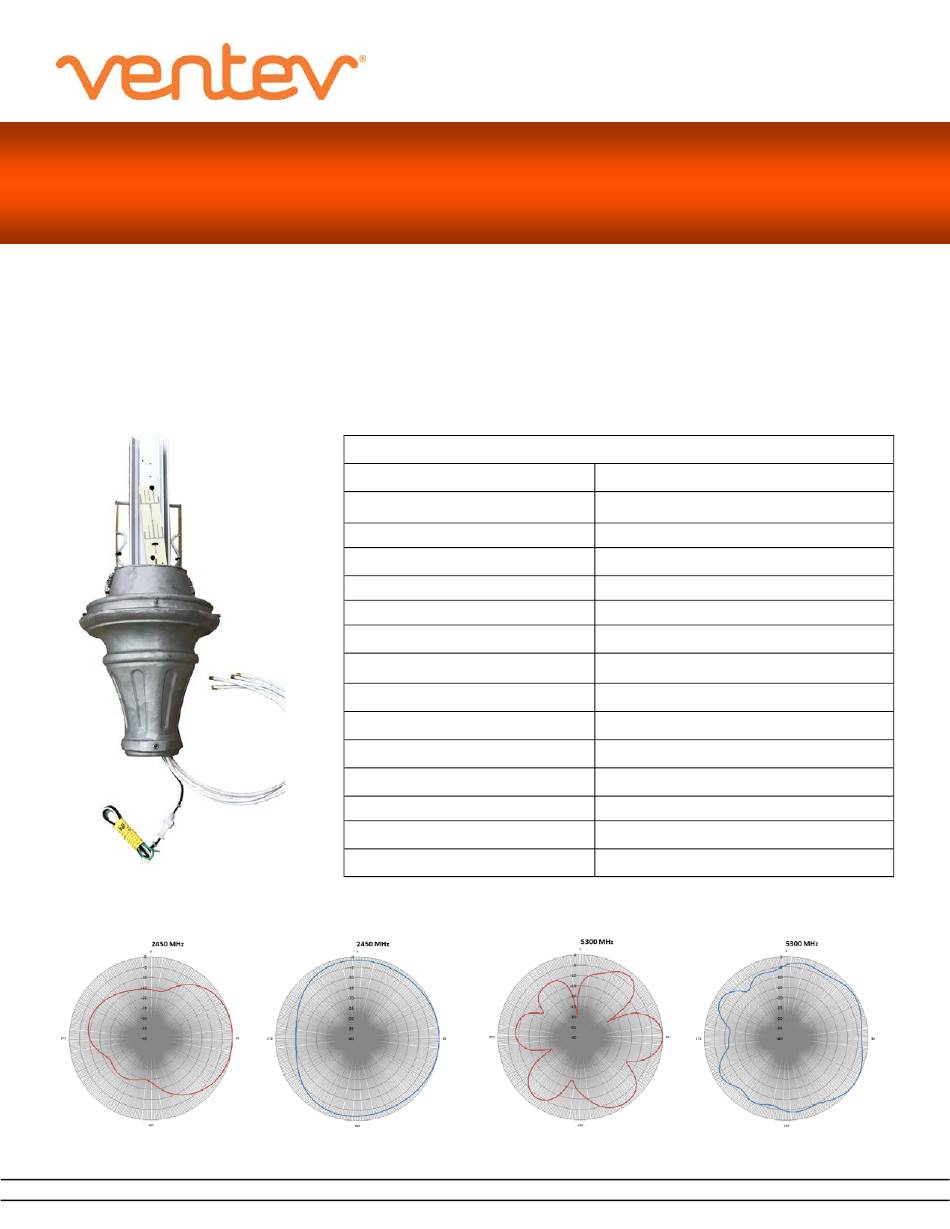

Ventev TerraWave M6060060O1D41202I Quick Start Manual

2.4/5 GHz 6 dBi Omnidirectional Wi-Fi Light Globe Antenna
Ventev's TerraWave 2.4/5 GHz 6 dBi Multiple-Input and Multiple-Output (MIMO) Omnidirectional Wi-Fi Antenna for
LED Light Globes transforms outdoor light globes into Wi-Fi hot spots. The antenna is designed to operate with the
most modern 802.11ac access points with RPSMA connectors. This unique antenna installs inside outdoor lighting
globes to ensure concealed, high-performance Wi-Fi. The antenna delivers as a kit with Printed Circuit Board antenna
elements, stand-off spacers, and associated attachment hardware. Installers must integrate the antenna elements
onto the light globe's heat sinks as described in mounting instructions.
Every Ventev TerraWave antenna is covered by a 2- year TerraNet warranty program. Contact Ventev at 800-851-4965, or
sales@ventev.com for questions and to purchase product.
Antenna integrated into LED
Light Globe
E-Plane Pattern
2.4 GHz
www.ventev.com/infra
with 4 RPSMA Plugs for LED Light Globes
Model
Frequency Range
Bandwidth
Gain
Vertical Beamwidth
Horizontal Beamwidth
VSWR
Nominal Impedance
Polarization
Max Power Rating
Dimensions
Weight
Connector
Number / Length / Type Pigtails
Operating Temperature Range
H-Plane Pattern

Specifications

2400 ~ 2500 MHz / 4900 ~ 5850 MHz
E-Plane Pattern
sales@ventev.com
M6060060O1D41202I
100/ 985 MHz
6 dBi
50° / 30°
360° / 360°
≤ 2.0 / ≤ 2.0
50 Ohms
Vertical
10 Watts
6" (H) x 4" (W)
1 lb.
4 x RPSMA Plug
4 x 3' Pigtails / RG58
-40°F to +158°F
H-Plane Pattern
5 GHz
800-851-4965
