- Page 1 Operators Manual SmartSystem SITE L Datalogger...
-
Page 2: Table Of Contents
Table of Contents Safety instructions ........................4 Quick Guide ..........................5 Quick Start if configuration is already loaded on the device ........... 5 Quick Start if configuration needs first loaded to the device ..........6 Device view and description ......................7 Display............................ - Page 3 13.5.2 Upload data manually of read out data to Berlinger SmartView software (version 6.0 and higher)............................. 18 13.5.3 Return device ......................... 18 Where to place SmartMonitor SITE L ..................19 External Sensor .......................... 20 15.1 Connect an external sensor to SmartMonitor SITE L device ..........21 15.2...
-
Page 4: Safety Instructions
1 Safety instructions Intended use Temperature • Temperatures outside the operating range may damage the battery. For the operating range, see the information in the technical data sheet. IP Protection • Limited protection against dust ingress and protection against splashing water from all directions. -
Page 5: Quick Guide
2 Quick Guide Quick Start if configuration is already loaded on the device Draft version 01 Operatots Manual / SmartMonitor SITE L page 5 of 26... -
Page 6: Quick Start If Configuration Needs First Loaded To The Device
Quick Start if configuration needs first loaded to the device Draft version 01 Operatots Manual / SmartMonitor SITE L page 6 of 26... -
Page 7: Device View And Description

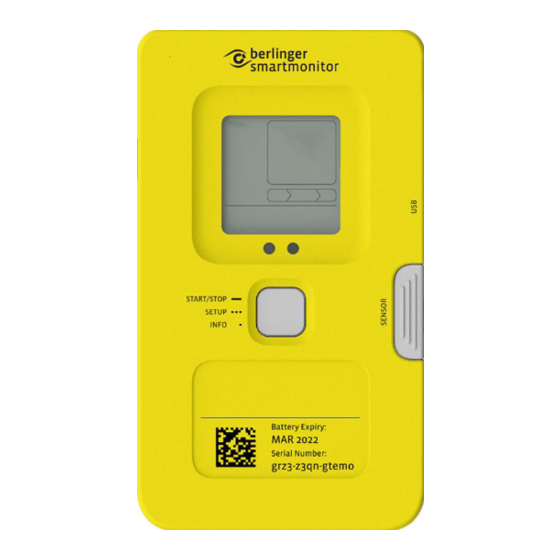

3 Device view and description Name Description Display Multi-information display USB-connector To charge the battery or download the data manually Confirmation/Status LED LED (small lamp) indicates if use of multifunctional button was successful or not Cover for ext. sensor Protect plug for external sensor QR Code Contains the serial number for M2M (Machine to Machine) -
Page 8: Display
4 Display Icon Name Description Battery status Indicates the battery status Battery charging Indicates whether external power has been plugged in Alarm status Device indicates that there is no alarm violation evice indicates that there is one or more alarm violation OFF →... -
Page 9: 7-Digit Display
4.1 7-digit display The 7-digit display gives additional information about the status or other data. In normal logging operation it displays the temperature. 5 Multifunctional button SmartMonitor SITE L device has one multifunctional button to operate. 1 x long press → Start / Stop the device 3 x short press →... -
Page 10: Confirmation Led
7 Light sensor SmartMonitor SITE L device has a built-in light sensor to monitor to detect whether the environment is light or dark. That sensor can be enabled or disabled in the Berlinger SmartView software (version 6.0 and higher). Important: Do not stick any label or tape over the light sensor. -
Page 11: Humidity And Pressure Sensor
SmartMonitor SITE L has a built-in motion sensor to record tilt, shock and vibration. The sensor is positioned inside the device and is not visible from the outside. Tilt, shock and vibration can be enabled or disabled in the Berlinger SmartView software (version 6.0 and higher) configuration. -
Page 12: Configuration
SmartMonitor SITE L can be ordered pre-configured with a customer desired configuration or with a standard configuration. If a new configuration is to be loaded, it is configured in the Berlinger SmartView software (version 6.0 and higher) and then assigned to the device. -
Page 13: Start/Stop
11 Start/Stop 11.1 Start To start the device, press the multifunctional button once >5 seconds or as long till display shows “SETUP” or the green LED lights for at least 2 sec. The following information will be displayed on the screen. While the information “***START***” will be displayed as a ticker, keep pressed the multifunctional button and hold the multifunctional button for at least 5 seconds. -
Page 14: Stop
11.2 Stop SmartMonitor SITE L device can only be stopped via Berlinger SmartView software (version 6.0 and later). As soon as the stop command has been entered via SmartView, the device will be stopped during the next synchronization between SmartView and SITE L and the information DONE will be displayed on the 7-segment display on the device. -
Page 15: Start Smartmonitor Site L With Scheduled Start
12.2 Start SmartMonitor SITE L with scheduled start If a scheduled start is configured a counter in days:hours:minutes (e.g., 01d14:32 = start in 1 day 14 hours and 32 sec) will be displayed on the 7-segment display. By a short press to the multifunctional button, the information SCHEDULED START will show as ticker on the display with above information about the time till the device will start recording. -
Page 16: Usage Process
13 Usage Process SmartMonitor SITE L is mainly used for monitoring the storage of temperature-sensitive products. The device has various configuration options. The device states are visualized below and described in more detail in the following chapters. The usage process may vary depending on the configuration. -
Page 17: Wifi Reset
13.4 Recording As long as the device is not stopped, it records the temperature (and other parameters, if set) and transmits the data via WIFI to the Berlinger SmartView software (version 6.0 and higher) at a predefined interval. The display shows the current temperature and informs via the hook... -
Page 18: Assess State Of Goods And Information
Reading out via Bluetooth will only be possible with a later version. 13.5.2 Upload data manually of read out data to Berlinger SmartView software (version 6.0 and higher). To upload the manually read out data to Berlinger SmartView software (version 6.0 and higher) you have two possibilities: •... -
Page 19: Where To Place Smartmonitor Site L
14 Where to place SmartMonitor SITE L Berlinger recommends placing the SmartMonitor SITE L as close as possible to the product to be monitored so that the temperature can be recorded as accurately as possible. If the temperature is to be measured in a refrigerator or freezer, it is recommended to do this with an external sensor. -
Page 20: External Sensor
15 External Sensor Use only original Berlinger external sensors for SmartMonitor SITE L. Make sure that the sensor is properly connected to the device and the connector is secured (tightened by hand). Do not tighten the connector with pliers or any other tool, otherwise the connector may be damaged. -
Page 21: Connect An External Sensor To Smartmonitor Site L Device
15.1 Connect an external sensor to SmartMonitor SITE L device To connect an external Berlinger probe to a SmartMonitor SITE L remove the grey cover at the right site from device. Remove the grey cover from the SHIPL device Plug in the connector by checking the mark at the connector and the plug of the SHIP L device. -
Page 22: Multi Sensor Adapter
For this, connect the Multi Sensor Adapter to the SITE L device and make sure that the connector makes contact in a secure way. The configuration for this Multi Sensor Adapter is done by Berlinger SmartView (version 6.0 and higher). -
Page 23: Troubleshooting
16 Troubleshooting Problem Effect Solution Blank display No information visible Connect the device to USB charger to charge the battery. Device cannot be started Press the multifunctional Display shows LONG PRESS button at least 5 second. LOW BATTERY Connect the device to power LOW:BATT will be shown on to charge the battery. - Page 24 5 times shortly to SmartView software. reset WIFI connection. On the back of the device is a 3D-code which links to the Berlinger website where more information about this device is available. If more help is needed, contact Berlinger support at support@berlinger.com...
-
Page 25: Disposal
17 Disposal Electronic devices are recyclable and do not belong in household waste. At the end of its lifetime, dispose of the product in accordance with the law according to your country or return it to Berlinger according Berlinger RMA process. -
Page 26: Standards
• Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiofrequency radiation exposure Information: This equipment complies with FCC and ISED radiation exposure limits set forth for an uncontrolled environment.
