berlinger Fridge-tag 2 L Quick Setup

Packaging content
1
Fridge-tag
Note: If you have ordered a Fridge-tag with an external sensor, place the
external sensor in its predetermined location, before activating the device.
Placing the Fridge-tag?
State of delivery
3
You receive the Fridge-tag in sleep mode. The display
(LCD) is blank.
Note: If required note the date of activation on the back of the Fridge-tag.
Activation of the device
4
Note: Once the device has been activated, it cannot be stopped anymore.
3
Setting the date and time
6
The READ button is used to adjust the numbers. Each time you press
the READ button, the number in the flashing digit will increase by 1.
3
The SET button is used to save the number. After pressing the SET
button, the next digit will start flashing.
3
The 1st digit is flashing:
Press READ until
1 0 02 2 0 1 8
Press SET to save the digit.
Go on with the next digits in the same way until date and
time is set.
Correct or change settings?
See user manual in chapter
Placing the Fridge-tag
8
The activated Fridge-tag must be placed immediately in its predetermined
location. It is recommended and important to place the device in the centre
of the refrigerator for an optimal temperature observation.
External sensor
Two hours before activating the device the external
sensor must be placed in its predetermined location. It
is recommended and important to place the external
sensor in the centre of the refrigerator for an optimal
temperature observation and to avoid any incorrect
measurements when starting the device.
Placing the Fridge-tag?
See user manual in chapter
External sensor
(optional)
See point 8
d d __ y y y y
« » appears as the first digit.
«Learn More»
«Learn More»

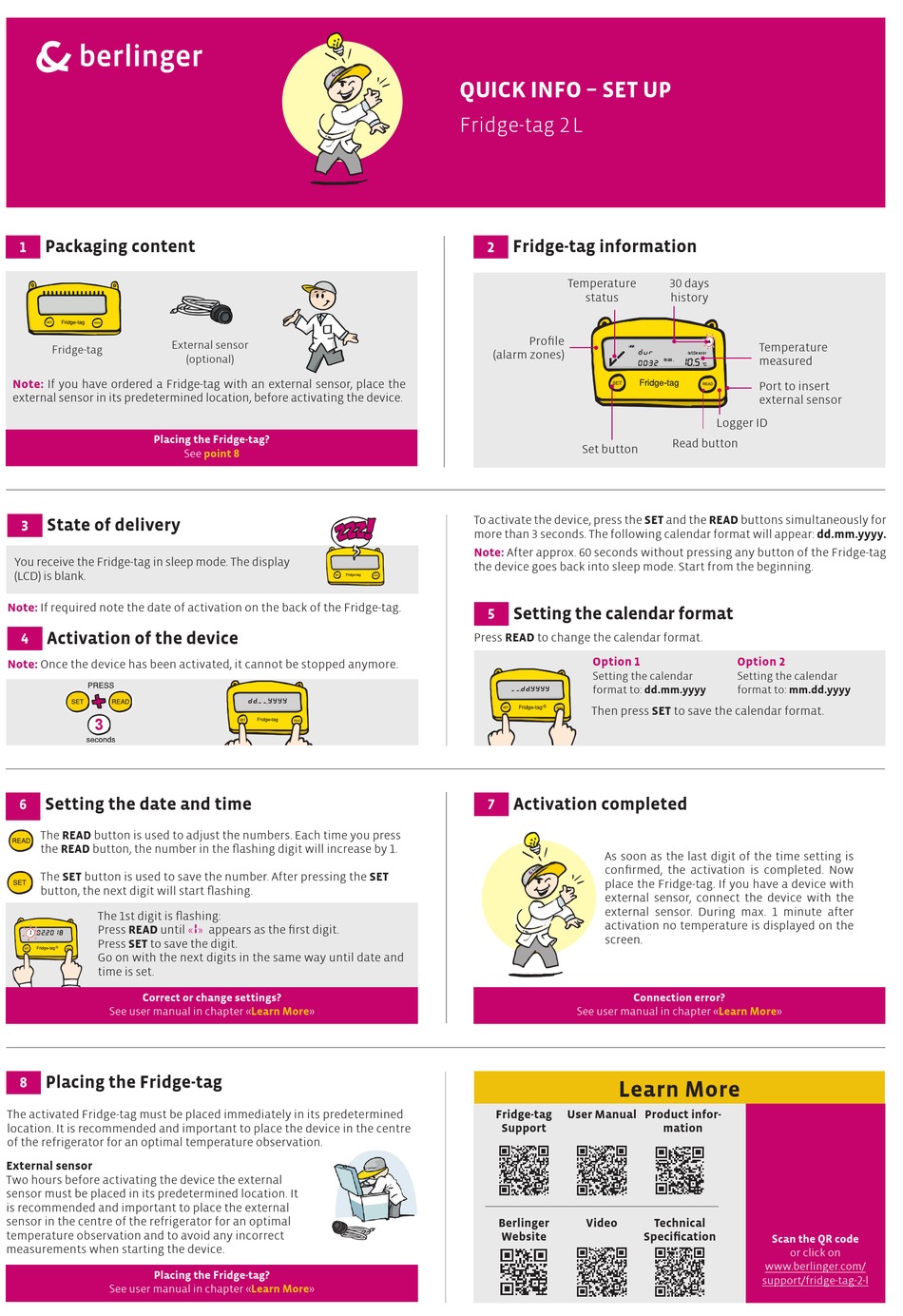

QUICK INFO – SET UP
Fridge-tag 2 L
Fridge-tag information
2
Profile
(alarm zones)
To activate the device, press the SET and the READ buttons simultaneously for
more than 3 seconds. The following calendar format will appear: dd.mm.yyyy.
Note: After approx. 60 seconds without pressing any button of the Fridge-tag
the device goes back into sleep mode. Start from the beginning.
3
3
Setting the calendar format
5
Press READ to change the calendar format.
_ _ dd
Activation completed
7
Fridge-tag
Support
Berlinger
Website
Temperature 30 days
status history
Int.Sensor
1 05
max.
0 32 0
°C
Read button
Set button
Option 1
Setting the calendar
format to: dd.mm.yyyy
y y y y
Then press SET to save the calendar format.
As soon as the last digit of the time setting is
confirmed, the activation is completed. Now
place the Fridge-tag. If you have a device with
external sensor, connect the device with the
external sensor. During max. 1 minute after
activation no temperature is displayed on the
screen.
Connection error?
See user manual in chapter
Learn More
User Manual Product infor-
mation
Video Technical
Specification
Temperature
measured
Port to insert
external sensor
Logger ID
Option 2
Setting the calendar
format to: mm.dd.yyyy
«Learn More»
Scan the QR code
or click on
www.berlinger.com/
support/fridge-tag-2-l
