berlinger Fridge-tag Ultra Low Quick Info

Packaging content
1
Fridge-tag
External sensor
Note: Place the external sensor in its
predetermined location, before activating the
device.
Placing the Fridge-tag?
See
State of delivery
3
You receive the Fridge-tag
in sleep mode. The display
(LCD) is blank.
Note: If required note the date of activation on
the back of the Fridge-tag.
Activation of the device
4
Note: Once the device has been activated, it can-
not be stopped anymore.
3
Setting the date and time
6
The READ button is used to adjust the
numbers. Each time you press the READ
button, the number in the flashing digit
will increase by 1.
The SET button is used to save the num-
ber. After pressing the SET button, the
next digit will start flashing.
3
1 0 02 2 0 1 8
1 0 02 2 0 1 8
Correct or change settings?
See user manual in chapter
Placing the Fridge-tag
8
30 minutes before activating the
device the external sensor must
be placed in its predetermined
location. It is recommended and
important to place the external
sensor in the centre of the freezer
(where goods are also stored)
for an optimal temperature
observation and to avoid any
incorrect measurements when
starting the device.
Note: Pay attention to your safety and
protection when installing the external sensor
in your freezer and follow your organization's
instructions for proper handling at ultra-low
temperatures.
Placing the Fridge-tag?
See user manual in chapter
point 8
3 3
d d __ y y y y
The 1st digit is flashing:
" "
Press READ until
appears as the first digit.
Press SET to save the digit.
Go on with the next digits
in the same way until date
and time is set.
«Learn More»
«Learn More»

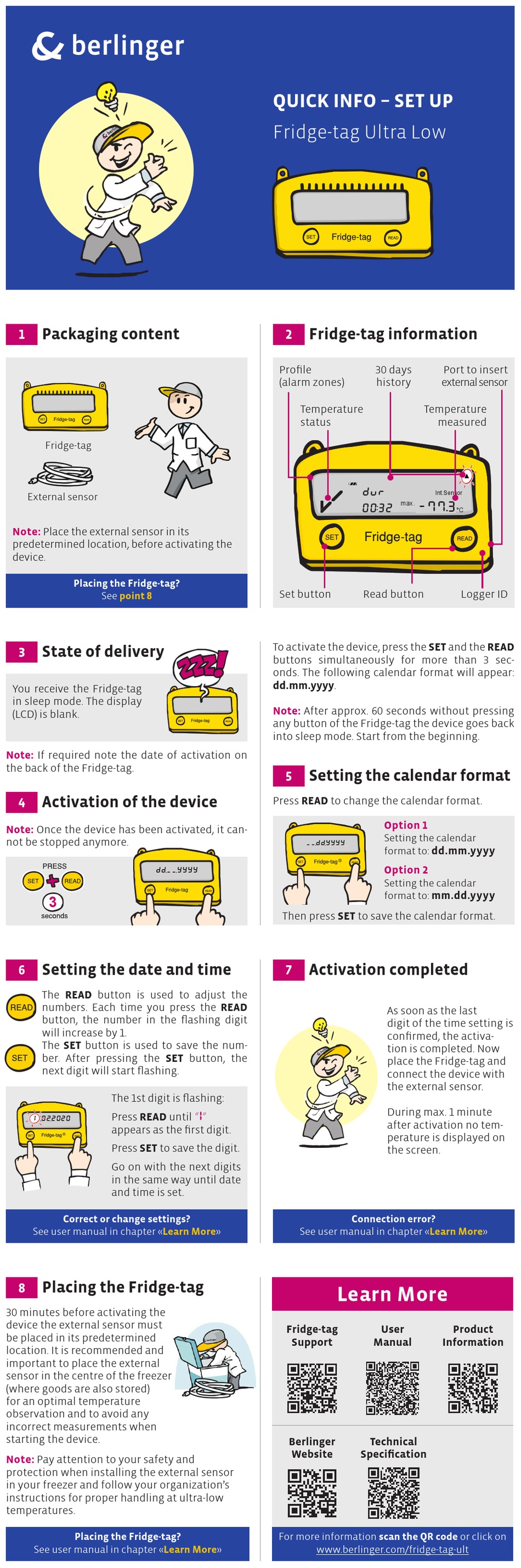

QUICK INFO – SET UP
Fridge-tag Ultra Low

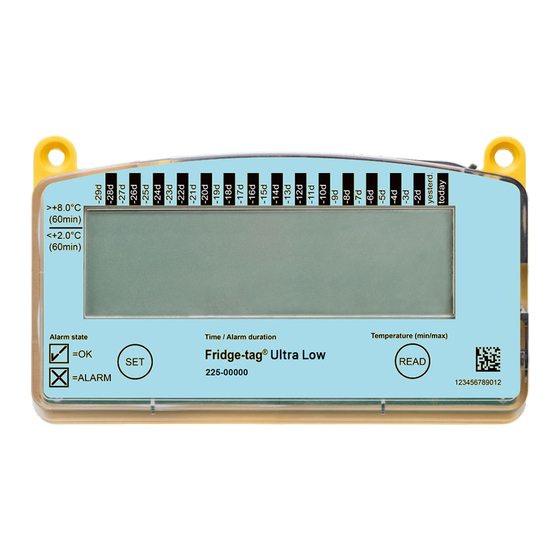

Fridge-tag information
2
Profile
(alarm zones)
Temperature
status
Set button
To activate the device, press the SET and the READ
buttons simultaneously for more than 3 sec-
onds. The following calendar format will appear:
dd.mm.yyyy.
Note: After approx. 60 seconds without pressing
any button of the Fridge-tag the device goes back
3
into sleep mode. Start from the beginning.
Setting the calendar format
5
Press READ to change the calendar format.
_ _
Then press SET to save the calendar format.
Activation completed
7
See user manual in chapter
Fridge-tag
Support
Berlinger
Website
For more information scan the QR code or click on
30 days
history
max.
0 32 0
0 32 0
Read button
Option 1
Setting the calendar
dd y y y y
format to:
Option 2
Setting the calendar
format to:
As soon as the last
digit of the time setting is
confirmed, the activa-
tion is completed. Now
place the Fridge-tag and
connect the device with
the external sensor.
During max. 1 minute
after activation no tem-
perature is displayed on
the screen.
Connection error?
Learn More
User
Manual
Technical
Specification
www.berlinger.com/fridge-tag-ult
Port to insert
external sensor
Temperature
measured
Int.Sensor
.
1 05
-773
°C
Int.Sensor
1 05
max.
°C
Logger ID
dd.mm.yyyy
mm.dd.yyyy
«Learn More»
Product
Information
