Installation • Assembly • Start-Up
Use • Maintenance • Repair

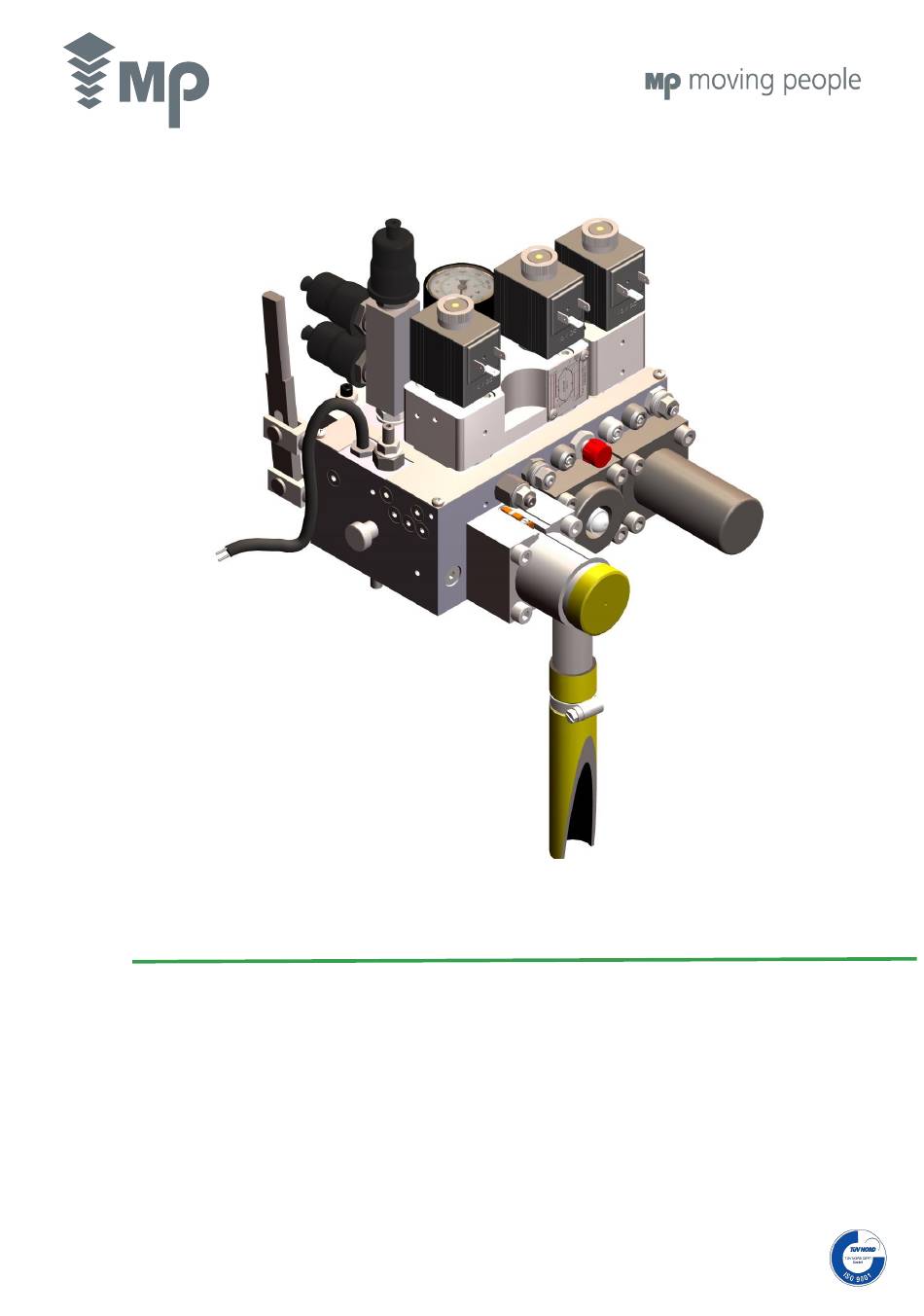

HYDRAULIC POWER UNIT 1 ¼" 1 ½"
MP sava3
Technical Manual
V700 – 11/2017
MTMECMPsava3_700_EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the sava3 and is the answer not in the manual?

Questions and answers

Related Manuals for MP sava3

Summary of Contents for MP sava3

  • Page 1 Installation • Assembly • Start-Up Use • Maintenance • Repair HYDRAULIC POWER UNIT 1 ¼” 1 ½” MP sava3 Technical Manual V700 – 11/2017 MTMECMPsava3_700_EN...
  • Page 2 MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” SUMMARY OF MODIFICATIONS IN REGARD WITH THE PREVIOUS VERSION: MTHDsava3_600 MODIFICATION CONCERNING INDEX DESCRIPTION OF THE SECTION MODIFICATION Physical Functions Figures Writing Product Features The “Pressure test” for commissioning as per...

  • Page 3: Table Of Contents

    2.1. MP sava3 Valve Block according to 2014/33/EU European Standard ............................9 2.1.1. Description of valves..........................................9 2.1.2. Unit operation ............................................9 2.1.3. Hydraulic circuit MP sava3 Valve Block with Soft-Stop according to European Directive 2014/33/EU ................10 2.1.4. Adjustment of Valves ..........................................11 2.1.5. Testings ..............................................12 2.2.

  • Page 4: Individual Protection Equipment

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 0 • INDIVIDUAL PROTECTION EQUIPMENT Neither the tools nor the individual protection equipment are included in the pack. Individual Protection Equipment Helmet Anti-cut gloves Reinforced boots Safety belt Goggles or shield Back belt 1 •...

  • Page 5: Types Of Pipe Couplings

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 1.2. Types of pipe couplings USA (single clasp) UDA (double clasp) CODO (double clasp elbow at 90º) To join pipe to valve block To join pipe to valve block To join a steel pipe and a hose...

  • Page 6: Steel Pipes And Flexible Hoses

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 1.4. Steel pipes and flexible hoses FLEXIBLE HOSE ONLY FLEXIBLE HOSE AND STEEL PIPE Avoid up and down IMPORTANT: curves in the course of Recommended for lengths ≤ 10 m Use for lengths > 10 m.

  • Page 7: Electrical Connections For 3-Phase Motors ¡Error! Marcador No Definido

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 1.6. Electrical connections for 3-phase motors ¡Error! Marcador no definido. Connection considering Emergency Valve Presostato P.Switch Presostato.Pmax/Pmin P.Swith. Pmax/Pmin Resistencia. Depósito Tank Oil Heater Electroválvula YE Electrovalve YE THE EMERGENCY VALVE WILL NOT BE...

  • Page 8: Sart-Up

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 1.7. Sart-up The oil supply line (flexible hose or steel pipe) should be as short as possible and without sharp bends. Make sure the pipe is in line with the connection and the joints are made as indicated in the technical manual.

  • Page 9: Block Of Valves

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 2 • BLOCK OF VALVES 2.1. MP sava3 Valve Block according to 2014/33/EU European Standard 2.1.1. Description of valves YD Electrovalve Pressure switch YR Electrovalve Starting with adjustment (for speed (descent)

  • Page 10: Hydraulic Circuit Mp Sava3 Valve Block With Soft-Stop According To European Directive 2014/33/Eu

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 2.1.3. Hydraulic circuit MP sava3 Valve Block with Soft-Stop according to European Directive 2014/33/EU Return filter-Shut-off valve MP sava3 Valve Block Rupture valve Hand pump VR. Non return valve Screw 1: Pressure relief valve adjustment (maximum pressure) VA.

  • Page 11: Adjustment Of Valves

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 2.1.4. Adjustment of Valves NOTE: All the blocks are adjusted prior to delivery; this information must only be used if a re-adjustment of a valve block is required. Adjustment screws with seal-locks:...

  • Page 12: Testings

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 2.1.5. Testings 1. Pressure relief valve. Screw 1 1. Load the lift car with 100% of the rated load. 2. Open the manometer protection key and take the pressure reading (full load pressure).
  • Page 13 MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 4. Pipe joints and couplings (Pressure test) 1. Raise the piston up to the end of the run. 2. Work the hand pump until the pressure is stabilized. 3. Keep the pipes under pressure for 5 min. and observe the possible pressure fall because of leaks (note the pressure might decrease due to cooling of oil).

  • Page 14: Mp Sava3 Valve Block

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 2.2. MP sava3 Valve Block 2.2.1. Description of Valves Pressure switch YR Electrovalve YD Electrovalve Starting (descent) with adjustment (for speed Electrovalve YS screw change) + YE (emergency) (-A3 optional) Magnetic Sensor...

  • Page 15: Hydraulic Circuit (Valid For Standard And Y- D Configurations)

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 2.2.3. Hydraulic circuit (Valid for Standard and Y- D configurations) Return filter – Shut-off valve MP sava3 MP Valve Block Rupture valve Hand pump VR. Non return valve Screw 1: Pressure relief valve adjustment (maximum pressure) VA.

  • Page 16: Mp Sava3 Valve Block Soft-Stop

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 2.3. MP sava3 Valve Block SOFT-STOP 2.3.1. Description of Valves Pressure switch YR Electrovalve YD Electrovalve Starting (descent) with adjustment (for speed Electrovalve YS screw change) + YE (emergency) (-A3 optional)

  • Page 17: Hydraulic Circuit Mp Sava3 + Soft-Stop

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 2.3.3. Hydraulic circuit MP sava3 + Soft-Stop Return filter-Shut-off valve MP sava3 block of valves Rupture valve Hand pump VR. Non return valve Screw 1: Pressure relief valve adjustment (maximum pressure) VA.

  • Page 18: Oil Cooling Device

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 3 • OIL COOLING DEVICE 3.1 Oil cooling device connections - Hydraulic power unit The power unit has a dust protection on the tank identification cover. Remove this protection before installing the cooler.

  • Page 19: Oil Cooler And Thermal Switch Wiring

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 3.2. Oil cooler and thermal switch wiring THREE-PHASE COOLER GENERAL CONNECTION ADJUSTING THERMOSTAT 4 • TANK OIL HEATER - To make a correct connection between the power unit and the oil heater, see page number 6 of this technical manual.

  • Page 20: Maintenance

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 5 • MAINTENANCE 5.1. Cleaning of the reutrn oil filter Close the shut-off valve so the power unit and the cylinder are isolated. Remove the four connection screws of the valve body and open it. Take out the return filter and clean it correctly.

  • Page 21: Controls

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 6 • CONTROLS DURING THE THE FIRST TWO EVERY 5 TO CHECKS ONCE/YEAR ASSEMBLY MONTHS 10 YEARS 1 Vacuum pressure (bar) 2 Full load pressure (bar) 3 Pressure relief valve trips at... (bar) 4 Hand pump pressure relief valve trips at...

  • Page 22: Commissioning Test Related To Unintended Car Movement (Ucm) As Per En 81-2 & En 81-20

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 7 • COMMISSIONING TEST RELATED TO UNINTENDED CAR MOVEMENT (UCM) AS PER EN 81-2 & EN 81-20 UCM tests shall be carried out by at least two technicians to prevent people entering the car with door open.

  • Page 23: Failure Simulation Of The Vd Valve (Bypass Valve Operated By The Ys Electrovalve)

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 7.3. Failure simulation of the VD valve (Bypass valve operated by the YS Electrovalve) The test consists of checking that the car stops at level in case of failure of the VD.

  • Page 24: Commissioning With A Pressure Of 200% Full Load, As Per En 81-2 And En 81-20

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 8 • COMMISSIONING WITH A PRESSURE OF 200% FULL LOAD, AS PER EN 81-2 AND EN 81-20. ➢ Pressure test as per EN 81-20, 6.3.10, and EN 81-2, Annex D, D.2, t) A pressure of 200 % full load pressure is applied to the hydraulic system between the non-return valve and the jack included.

  • Page 25: Appendix • Actions To Face Malfunctions

    - The aim of this document is to let you know the procedures to follow in case of malfunctions that may occur in the handling during procedures such as installation, start up or maintenance of any of MP drive equipment, whatever type they are.
  • Page 26 MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” Disposal of the return pipes in the valve block. - The return pipes are small union joints on the lower side of the valve block (open the tank’s level cap and have a look at the aforementioned side in order to identify them) where the hydraulic oil flows through during the different operations of this valve block.

  • Page 27: A2. Ascent

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” A2. Ascent A2.1. Start-up (the lift does not start) - Shut-off Valve. Check that the shut-off valve is open. Move the lever in the direction shown on the picture in order to open it.
  • Page 28 MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” - Valve block start-up sequence. - Check that the flow of oil through the return pipe of the start-up valve only happens for a moment and when the start-up takes place. If the flow is continuous, there is a problem at this point: - The start-up sequence piston may be blocked.

  • Page 29: A2.2. Nominal Speed (A Slower Speed Than Usual)

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” A2.2. Nominal speed (a slower speed than usual) No load - Electrovalve for changing speed (YR). - The coil is not being supplied correctly  Check the connection in the connector and in the control panel terminal.

  • Page 30: A2.3. Levelling Speed (Does Not Function Correctly)

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” A2.3. Levelling speed (does not function correctly) - Speed change screen (Magnets on guiderails). - The pulse magnets used for carrying out a change of speed are incorrectly positioned  Alter their distance.

  • Page 31: A3. Descent

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” A3. Descent A3.1. Start-up (the lift does not start) - Descent electrovalve (YD). - The coil is not being supplied correctly  Check the connection in the connector and in the control panel terminal.

  • Page 32: A3.2.2. Speed Higher Than Usual

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” A3.2.2. Speed higher than usual - Speed of descent regulator (screw nº 5) The screw may be excessively tightened  Turn the regulator loosen it until achieving the desired speed. - Safety gear valve test regulator (screw nº 9) The screw may be tightened to the limit (if the safety gear valve operates) ...

  • Page 33: At Floor

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” 4. At floor A4.1.The lift descends continuously - Descent valve (Locking seal) - The seal of the descent piston is not watertight. The problem can be clearly detected when there is rapid balancing. To assure ourselves of this, we must remove the right cap of the hydraulic power unit (level cap) and the transparent sheaths of the return pipes in the valve block.

  • Page 34: A4.2.The Lift Descends When Loaded

    - The existence of air inside the cylinder may cause an effect that is easy to identify. When a load is introduced, it causes a spring-like response in the system.  Bleed the cylinder to get rid of any air inside it (see the technical manual for the MP hydraulic cylinder MTHDCMP). - Hydraulic oil.
  • Page 35 MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” NOTES: - It is necessary to bleed the installation after any change of fittings. - The usual amount of leakage through the cylinder joint is between 0,5 and 1 L per month.

  • Page 36: A6. Electric Motors, Operating Instructions

    MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” A6. Electric Motors, Operating Instructions The Operating Instructions of electrical motor manufacturer are shown here below. Importantes instrucciones de Seguridad V700 - 11/2017 36/40 MTMECMPsava3_700_EN...
  • Page 37 MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” V700 - 11/2017 37/40 MTMECMPsava3_700_EN...
  • Page 38 MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” V700 - 11/2017 38/40 MTMECMPsava3_700_EN...
  • Page 39 MP sava3 Hidraulic Power Unit 1 ¼” 1 ½” V700 - 11/2017 39/40 MTMECMPsava3_700_EN...
  • Page 40 Leonardo Da Vinci, 15 Isla de la Cartuja – 41092 Seville SPAIN +34 902 197 277 elevacion@mpascensores.com www.mplifts.com Technical Manual translated from the original in Spanish, available at MP website. Products constantly developed, the specifications can be modified without prior notice.
