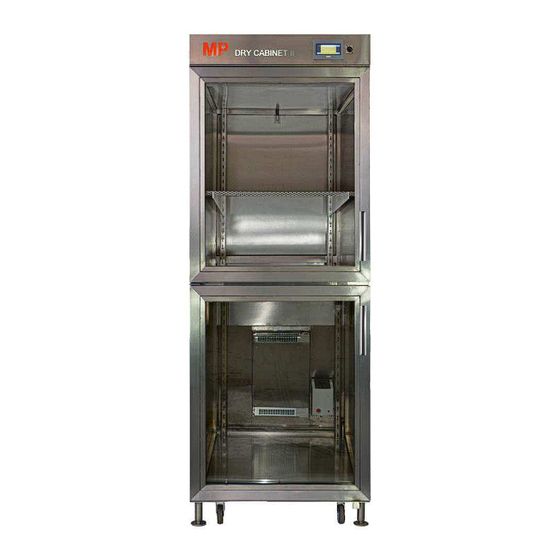

- Page 1 DRY CABINET II User´s manual MP Elektronik Technologie, s.r.o. Dlouhá 219 678 01 Blansko - Klepačov Czech Republic Tel: +420 516 416 937 Fax: +420 516 417 641 E-mail: info@mpelektronik.cz www.mpelektronik.cz page 1/22...
-
Page 2: Table Of Contents
User´s manual MP DRY CABINET II Content Introduction..................................3 Intended Use of the Device............................3 Acts, Regulations and Standards..........................3 Type of the device..............................3 Safety at Work, Fire Protection.............................4 Obligations of the Operator............................4 Qualification Requirements on Employees........................4 Conditions of Safe Operation of Electric Devices.....................4 Fire Protection................................4... -
Page 3: Introduction
Intended Use of the Device Drying cabinet MP DRY CABINET II is intended for drying and storage of PCB´s and electronic components at very low relative humidity without having to use of vacuum packaging. Acts, Regulations and Standards The acts, regulations and standards mentioned below are in force in the European Union. -
Page 4: Safety At Work, Fire Protection
User´s manual MP DRY CABINET II Safety at Work, Fire Protection Obligations of the Operator ° The operator shall be obliged to secure the compliance with generally binding safety regulations during the work with the device. ° The operator shall be obliged to perform visual checks of the device and the basic maintenance. -
Page 5: Technical Specification
User´s manual MP DRY CABINET II Technical Specification MP DRY CABINET I. Overall dimensions (š x v x d) 700 x 1070 x 690 mm Inner dimensions (š x v x d) 640 x 800 x 520 mm Weight 90 kg... - Page 6 User´s manual MP DRY CABINET II MP DRY CABINET IV. Overall dimensions (š x v x d) 1410 x 1920 x 690 mm Inner dimensions (š x v x d) 1350 x 1650 x 520 mm Weight 320 kg Effective capacity...
-
Page 7: General Description
MP DRY CABINET II Drying cabinet MP DRY CABINET II is a separate drying device for drying of printed circuit board assemblies, electronic components and ESD components of all classes. The device can be used in operations and processes sensitive to humidity, during PCB assembly for interoperation storage and storage of sensitive electronic components. -
Page 8: Construction Layout
User´s manual MP DRY CABINET II 4.1 Construction layout Touch panel Door handle Drying device Heater Travelling wheels Locking and grounding legs FRONT VIEW page 8/22... - Page 9 User´s manual MP DRY CABINET II Connectors REAR SIDE VIEW page 9/22...
-
Page 10: Preparation For Use
Should you detect any shortcomings during the initial preparation, provide for their repair before the device is connected to the mains. Storage • Store MP DRY CABINET device in a place with temperatures from 0 to 45 °C and relative humidity up to 70%. • Avoid contact with water, chemical substances or rain. •... -
Page 11: Power Supply Connection
User´s manual MP DRY CABINET II Power Supply Connection • Connect the power supply cable to the mains. (Cu 3 x 1,5 mm) • The device is supplied with line voltage 230V 50 Hz via connecting cable. The protective conductor is connected to the frame of the container in the earthing point. -
Page 12: Operational Check
User´s manual MP DRY CABINET II Operational Check • Connect device via cable to the mains. • After the start-up of the display, the basic menu of the program will go on and device starts operation. BASIC MENU page 12/22... -
Page 13: Instructions To Use
User´s manual MP DRY CABINET II Instructions to use All the technological processes are set on the touch panel located in the front of the device. Touch panel conector TOUCH PANEL Control Panel Description After the start-up is displayed basic menu. -
Page 14: Log In Of The Engineer
User´s manual MP DRY CABINET II To display temperature or humidity in the chart press „chart“ EXAMPLE OF THE CHART 6.2 Log in of the Engineer The device may be controlled in two access profiles „User“ and „Engineer“. Profile „User“ is set after the start-up of the device and any parameters can be changed. -
Page 15: Setting
User´s manual MP DRY CABINET II 6.3 Setting For parameters setting press „setting“. Following screen will be displayed. Temperature setting Opened door Language alarm setting Engineer Time and log in date setting Frequency of data saving to For temperature setting press active field “temperature”. - Page 16 User´s manual MP DRY CABINET II KEYBOARD TO INSERT REQUIRED VALUE When exceeded the time allowed for opened door, sweeping sound will go on and following warning will be displayed. Close door and press „OK“. For language selection press „EN“ or „CZ“...
- Page 17 User´s manual MP DRY CABINET II KEYBOARD TO INSERT REQUIRED VALUE page 17/22...
- Page 18 User´s manual MP DRY CABINET II Press „update“ and press „back“ for return into setting menu. To set sampling frequency of storage pre-set parameters onto memory press „set log“. PARAMETERS LOG SETTING Temperature and humidity values are recorded on memory according to the set sampling rate. They are stored in "CSV"...
-
Page 19: Saving Measurement Data On Storage Device
User´s manual MP DRY CABINET II 6.4 Saving measurement data on storage device To copy the measurement data from the internal memory to a PC using a USB storage device (insert it into the connector located on the front of the device). - Page 20 User´s manual MP DRY CABINET II page 20/22...
-
Page 21: Packing List
User´s manual MP DRY CABINET II Packing List Parts of Delivery Item Specification Amount MP DRY CABINET 1 pc Connecting cabel 1 pc User´s manual 1 pc page 21/22... -
Page 22: Delivery, Service And Warranty Conditions
User´s manual MP DRY CABINET II Delivery, Service and Warranty Conditions The device is delivered and the warranty and after-warranty services are performed by: MP Elektronik Technologie, s.r.o. Dlouhá 219 678 01 Blansko - Klepačov Czech Republic Telephone: +420 516 416 937 Fax: +420 516 417 641 E-mail: info@mpelektronik.cz...
