3 Connector Pinouts

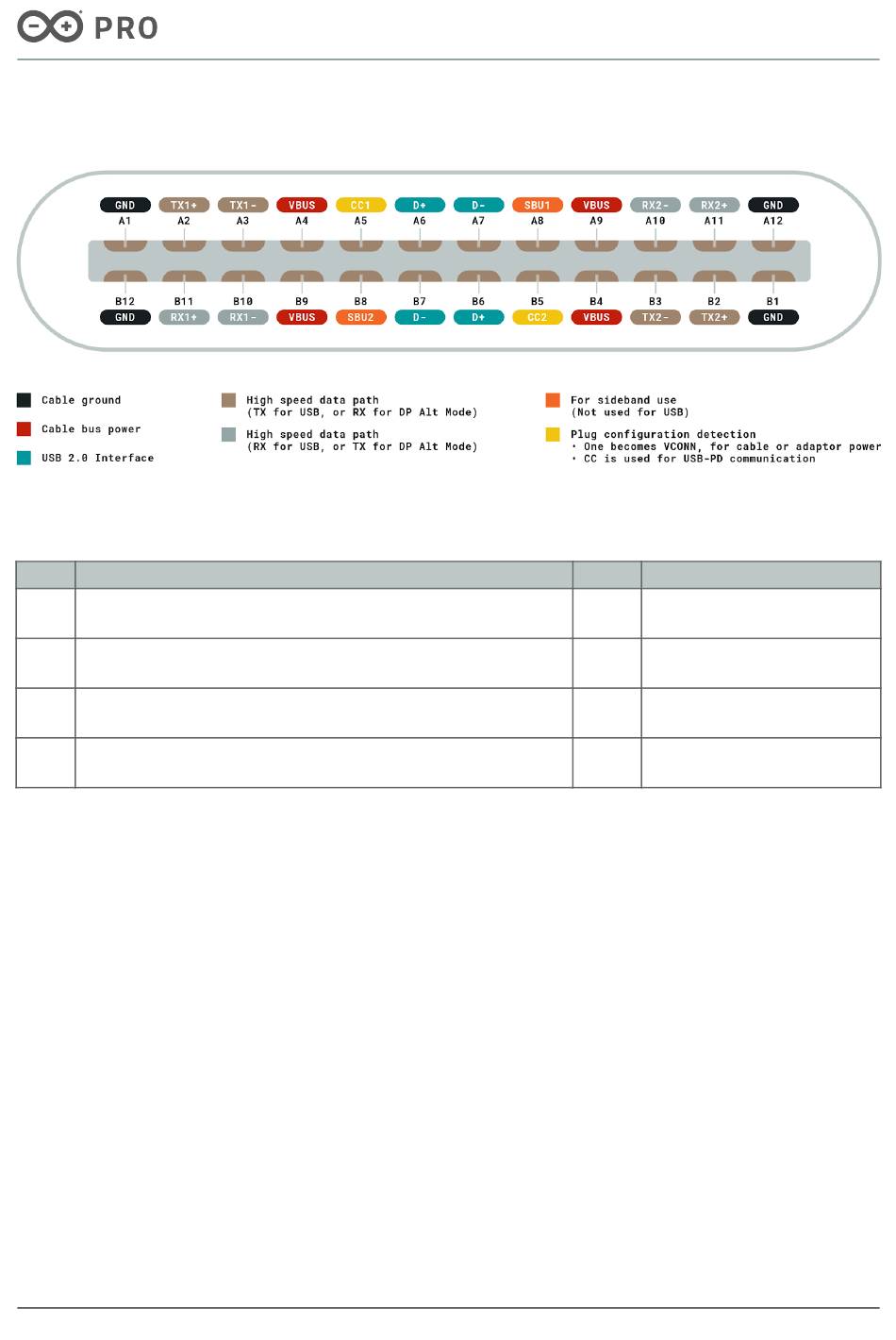

3.1 USB-C

Pin Description
GND Cable Ground
VBUS Cable bus power
D+/D- USB 2.0 Interface
CC1 Plug configuration detection * One becomes VCONN for cable
CC2 or adaptor power * CC is used for USB-PD communication

3.2 High Density Connector

9 / 20
Arduino® Portenta H7 Lite Connected
USB-C Pinout
Arduino® Portenta H7 Lite Connected
Pin Description
TX1 +/- High speed data path (TX for
TX2 +/- USB, or RX for DP Alt Mode)
RX1 +/- High speed data path (TX for
RX2 +/- USB, or RX for DP Alt Mode)
SBU1 For sideband use (Not used
SBU2 for USB)
