Arduino® Portenta H7
5.6 Board Recovery
All Arduino boards have a built-in bootloader which allows flashing the board via USB. In case a sketch locks up the
processor and the board is not reachable anymore via USB it is possible to enter bootloader mode by double-
tapping the reset button right after power up.
6 Connector Pinouts
6.1 USB-C

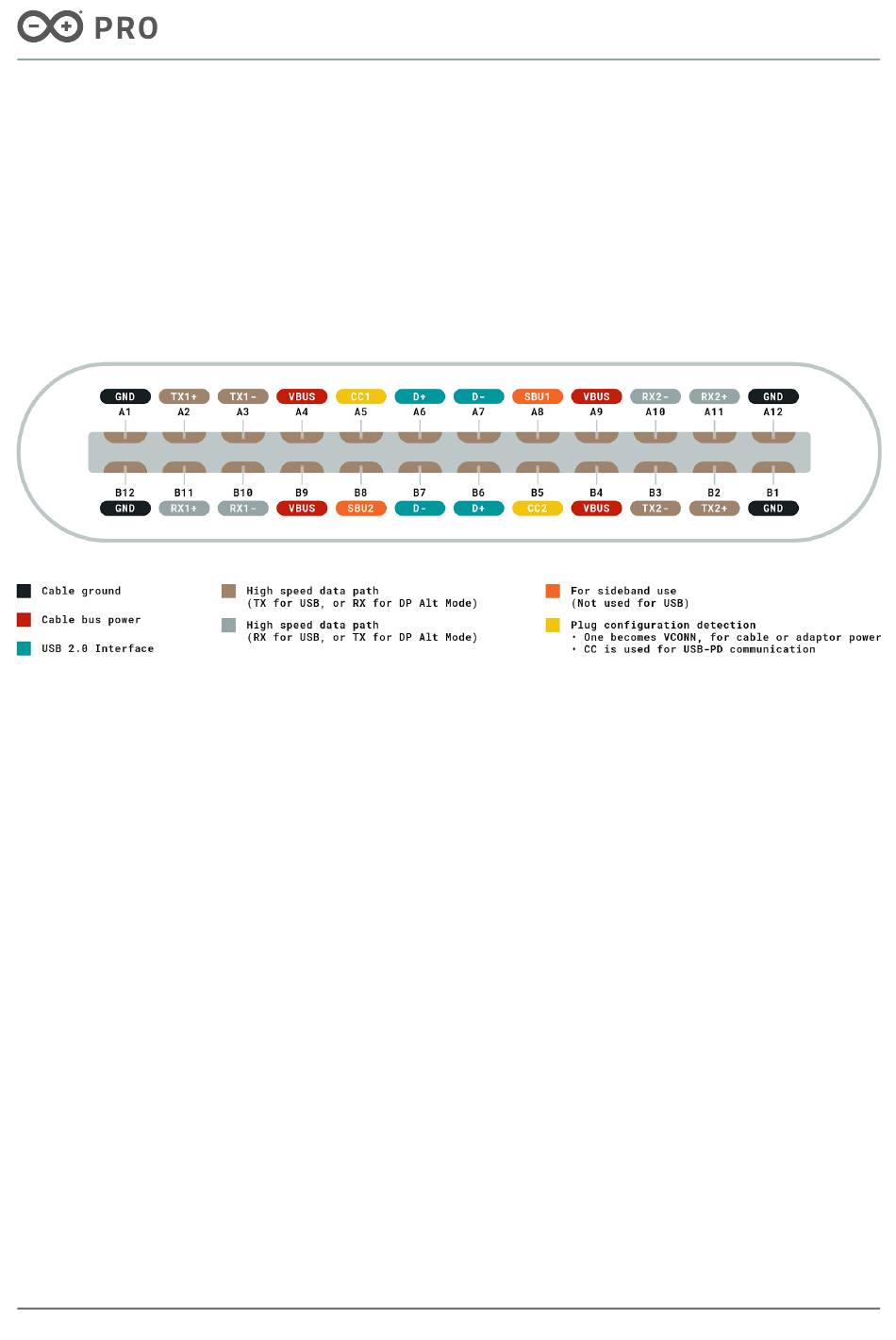

USB-C Pinout
6.2 High Density Connector
16 / 25
Arduino® Portenta H7 / Rev. 01 - 25/11/2021
