LEGRAND DLI90BTWE Instruction Sheet

ON OFF
Control via HPM Connect App
and Remote Control
Please read carefully:
Read through these instructions completely before commencing installation. Retain for future use. This product should
be installed by a licensed electrical contractor or similarly qualified person.
1

Specifications

Cat. No.
Fascia Colour
Nominal Supply Voltage
Lumen Range
Colour Temperature Range
Input Power
Power Factor
Standby Power
Surge Rating
Efficacy
Ripple Frequency Resistant
Colour Rendering Index (CRI)
Beam Angle
Ceiling Cut-out Size
Fascia Size
Depth into Ceiling
Lifespan (@25°C ambient free air)
Dimming
Dimming Range
Max. No of device per Mesh
Range for Individual Lamp
IP Rating
Warranty
70mm
10mm
DLI90BTWE
White
230 - 240 V a.c. 50 Hz
3000K - 690 lm
to
5000K - 710 lm
3000 K (Warm White) to 5000 K (Natural White)
(Changeable through App only)
6.5 W
0.5
0.5 W
2500 V
113 lm/W Max.
Yes
80+
100°
Ø 90 mm
Ø 110 mm
70 mm
35,000 hrs
Dimmable with HPM Connect App and Remote Control
(Not compatible with external dimmer)
!
5% to 100%
128 max
20 m (Indoors)
This range may be reduced by obstruction like a brick /
concrete wall.
IP44 (Front Face)
3 Years

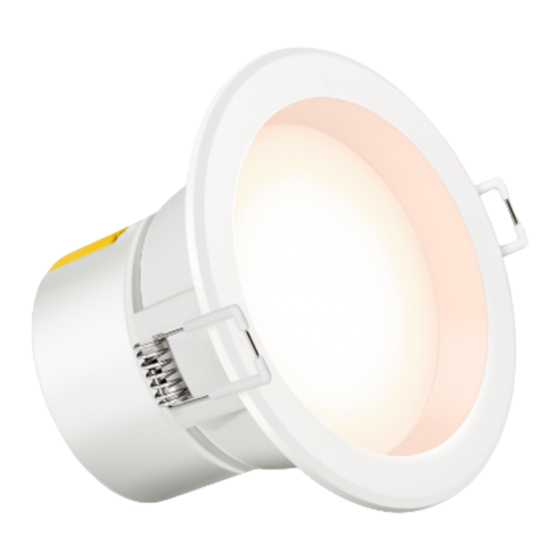

HPM Smart LED Downlight
Cat.No. DLI90BTWE, REMOTEBTDL
90mm
110mm
Cat. No.
Features
Functions
Instruction Sheet
Dimmable through App
APP
and Remote Control
Class II construction
IC - 4 Insulation Rating
IC - F Insulation Rating
REMOTEBTDL
(Remote is sold separately)
■ Max.100 Downlights per Remote Control
■ 2 x AAA Batteries (Not Included)
■ Wall fixing Bracket included.
■ Switch ON/OFF
■ Dimming (20% increments and 20%
minimum)
