Summary of Contents for Bartscher 360L

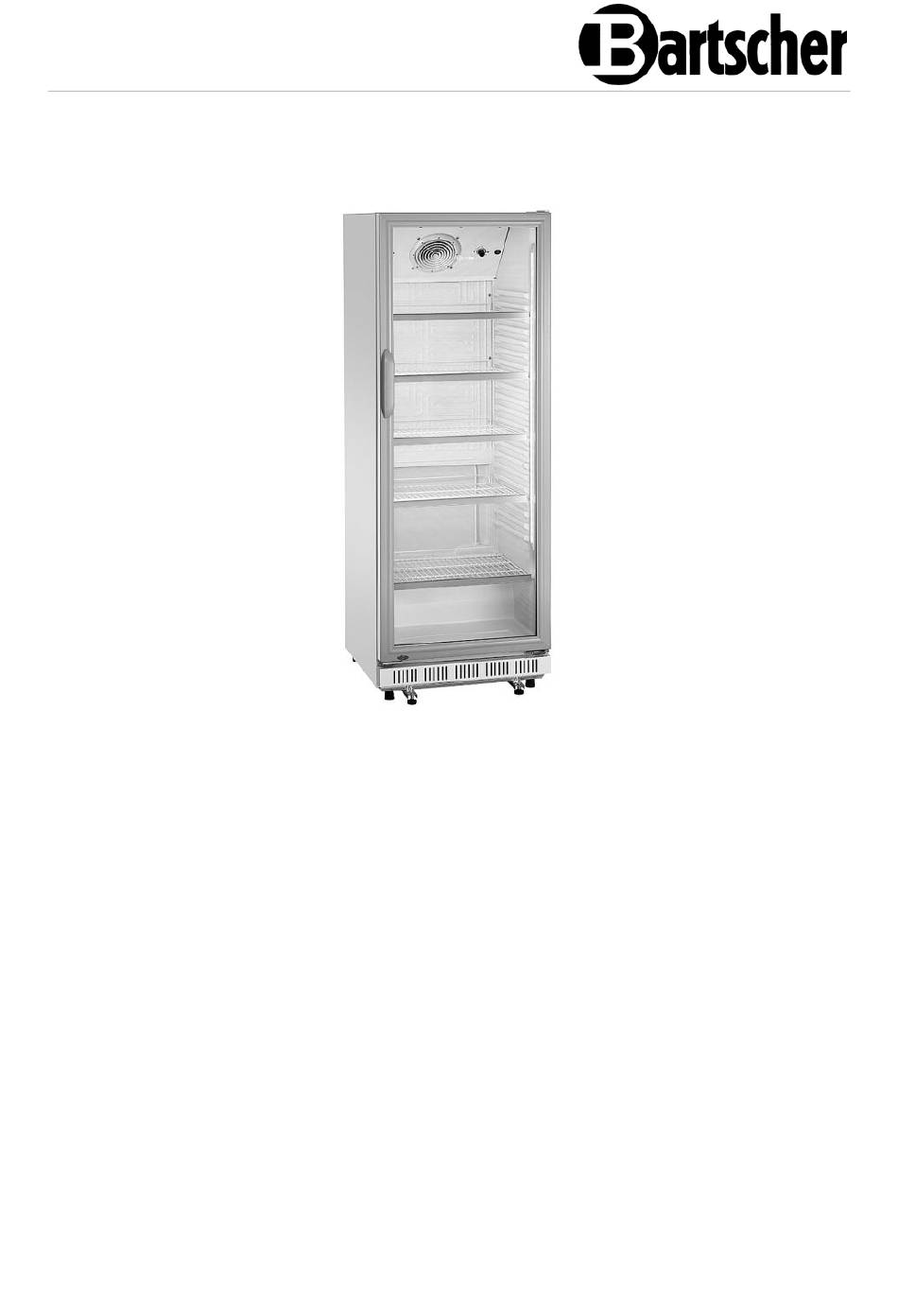

- Page 1 360L 700834...
- Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2021-08-04...
-
Page 3: Table Of Contents
Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage .............. -
Page 4: Safety
Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den. -
Page 5: Safety Instructions
Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,... - Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
- Page 7 Safety Improper Use • Unintended or prohibited use may cause damage to the appliance. • The appliance may only be used when its technical condition is flawless and allows for safe operation. • The appliance may only be used when all connections are executed according to rules of law in force.
-
Page 8: Intended Use
Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Cooling and preparation of suitable beverages and food products. The appliance is intended for operation in maximum ambient temperature of 30°C and relative humidity of 55%. -
Page 9: General Information
General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual. -
Page 10: Transport, Packaging And Storage
Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint. -
Page 11: Technical Data

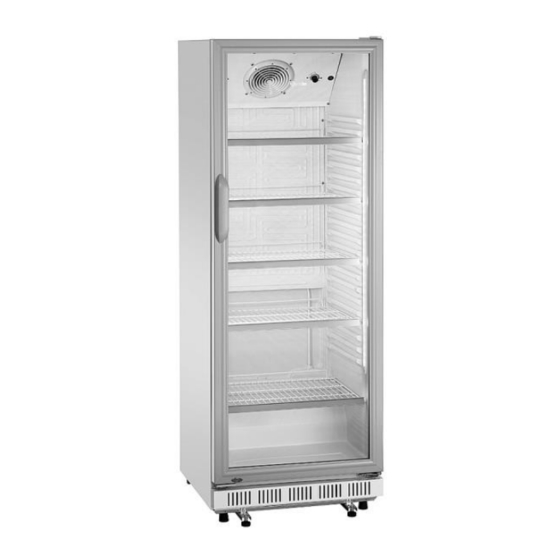

Technical Data Technical Data Technical Specifications Name: Glass-doored refrigerator 360L 700834 Art. No.: Material: steel, painted / glass / ABS plastic Inner material: plastic Volume, in l: Temperature range, min.–max., in °C: 1 - 10 Ambient temperature, max., in °C:... - Page 12 – LED lighting, may be switched on separately – 2 castors, 2 feet More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2019/2024, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model.
-
Page 13: List Of Components Of The Appliance
Technical Data List of Components of the Appliance Fig. 1 1. Fan 2. Temperature controller 3. LED lighting ON/OFF switch 4. Price strip, removable 5. LED lighting 6. Guide rails 7. Housing 8. Bottom working surface 9. Ventilation openings 10. Supports (2 pcs) 11. -
Page 14: Functions Of The Appliance
Installation and operation Functions of the Appliance The refrigerated cabinet has been designed for cooling and storage of suitable beverages and food. Equipped with a practical glass door will save time and energy, since before opening the door you can see what is inside – the refrigerated cabinet is perfect for both the pantry and the kitchen, as well as in various customer zones, such as shops, canteens, rooms for guests or petrol stations. - Page 15 Installation and operation • Place the appliance so that sufficient air circulation is ensured. Leave 10 cm clearance from walls and other objects. • In order to avoid damage to the compressor, do not tilt the appliance more than 45° when positioning or transporting it. •...
-
Page 16: Operation
Installation and operation Operation Tips for the user • Shelves may be positioned at various heights. Arrange them adequately to the size of beverage/containers with food product, so that the inner space of the appliance is used optimally. • Beverages and food products in containers should be arranged on the shelves so that proper distances between them allow for sufficient air circulation inside the appliance. - Page 17 Installation and operation Before First Use 1. Prior to first operation, clean the appliance and its equipment according to instructions in section 6 'Cleaning'. 2. To end with, dry the appliance and accessories thoroughly. 3. Place shelves in the appliance so that they fit the height of stored items. 4.
-
Page 18: Cleaning And Maintenance
Cleaning and Maintenance Manual Defrosting The appliance must be defrosted manually in regular intervals. 1. Disconnect the appliance from mains power supply. 2. Remove beverages and food from the appliance and store them temporarily in a cool room. 3. Leave the appliance open for some time. Condensed water drips onto the condensed water drip tray. -
Page 19: Possible Malfunctions
Possible Malfunctions 3. Remove all shelves from the appliance. 4. Clean the shelves with mild washing agent and soft cloth or sponge in warm water. 5. Rinse the shelves with clean water and dry thoroughly with soft cloth. Note: Never use hot water to clean the appliance. 6. - Page 20 Possible Malfunctions Error Possible Cause Solution No functions Plug improperly inserted Remove the plug and insert it available into a socket. properly in the socket Electric power supply safety Check the fuse, connect the fuse damaged appliance to another socket No power supply Check the electric power supply...
- Page 21 Possible Malfunctions Error Possible Cause Solution Temperature inside Too little clearance between Provide for sufficient the appliance is too objects inside the appliance clearance between objects high / too low inside the appliance Appliance is overloaded Reduce the number of stored objects Incorrectly set temperature Set the temperature control...
-
Page 22: Disposal
Disposal The following phenomena are not malfunctions: – Various sounds that are generated by the cooler during operation are a normal phenomenon and do not indicate any malfunctions. – Splashing, bubbling and hums are generated by the coolant that circulates the system.
