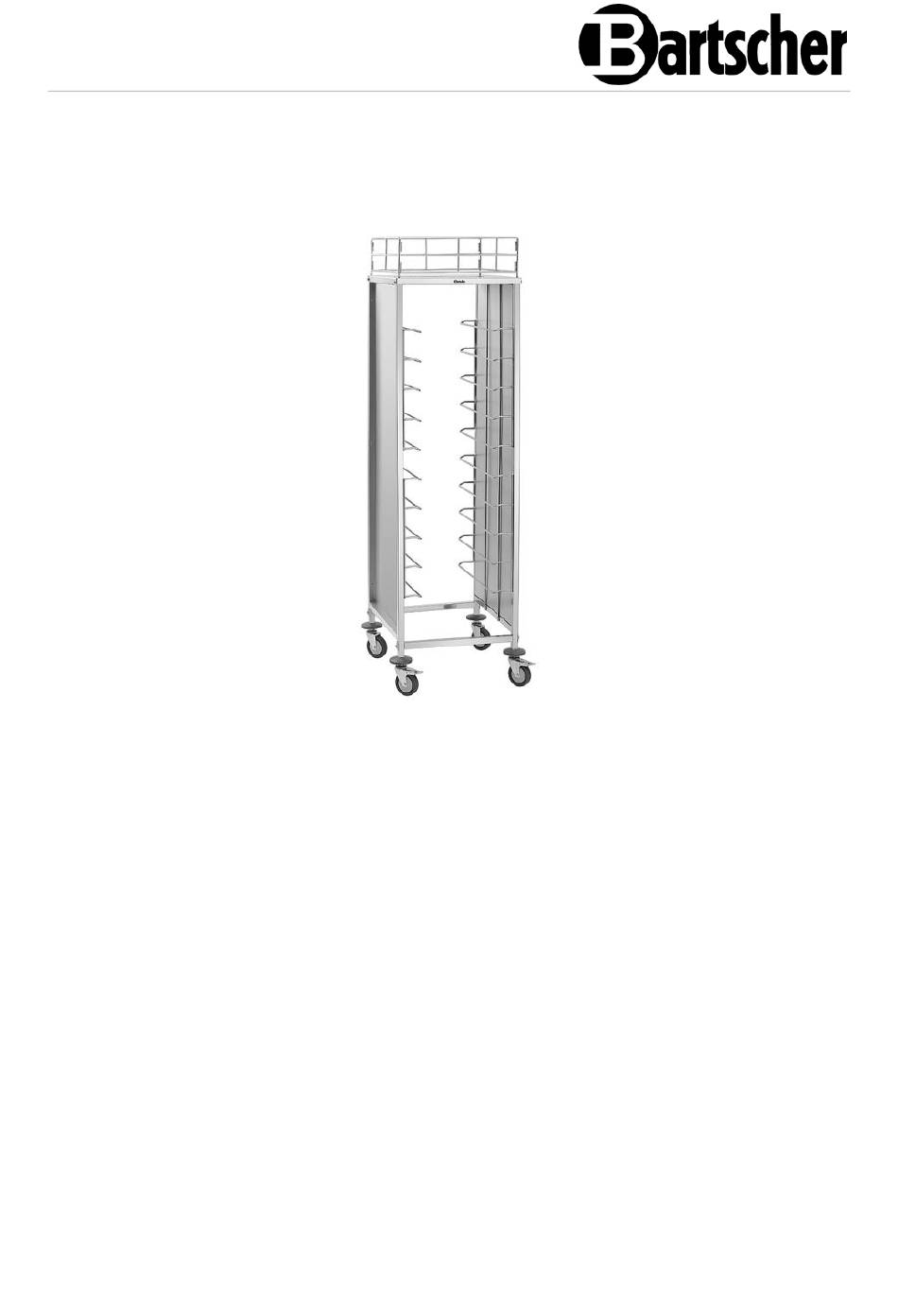

  • Page 1 AGN1000-1/1 300186...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Service hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2022-12-22 Original instruction manual...
  • Page 3 Technical Specifications Name: Gastronorm trolley AGN1000-1/1 300186 Art. No.: Material: stainless steel Number of guide rail pairs: Distance between guide rail pairs, in Load-bearing capacity per guide rail pair, max. in kg: Dimensions of utility surface (W x D), in...
  • Page 4 Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – Clearing and transporting food in GN containers, on grates and trays up to GN 1/1 size.
  • Page 5 Allen wrench M8*55 bolt Square washer Damper for swivel caster Locking swivel caster Non-locking swivel caster M5*10 bolt (already fixed in a factory to lateral sections) M5 nut M8 round washer 300186 5 / 8...
  • Page 6 Assembly 1. Fix the 2 shorter railing grilles at the front and rear of the working surface. Use the enclosed M5 nuts and washers. 2. Hook the 2 longer railing grilles onto the pins of the grille at the front and rear. Fig.
  • Page 7 6. Place the Gastronorm trolley on its side. 7. Mount 4 swivel caster dampers onto square tubing of lateral sections. 8. Finally, screw swivel casters into square tubing of lateral sections. 9. Set the Gastronorm trolley on swivel casters. 10. Insert folded shelves with railing (point 1, 2) on the Gastronorm trolley frame.
  • Page 8 Gastronorm Trolley Loading Prevents falling down The Gastronorm trolley can be loaded from both sides. 1. Place the required number of suitable trays, GN containers, etc. in guides. 2. Place jugs, cups, glasses, etc. on the top shelf. The shelf railings prevent dishware from falling down.
