Summary of Contents for Bartscher 1400T1S2

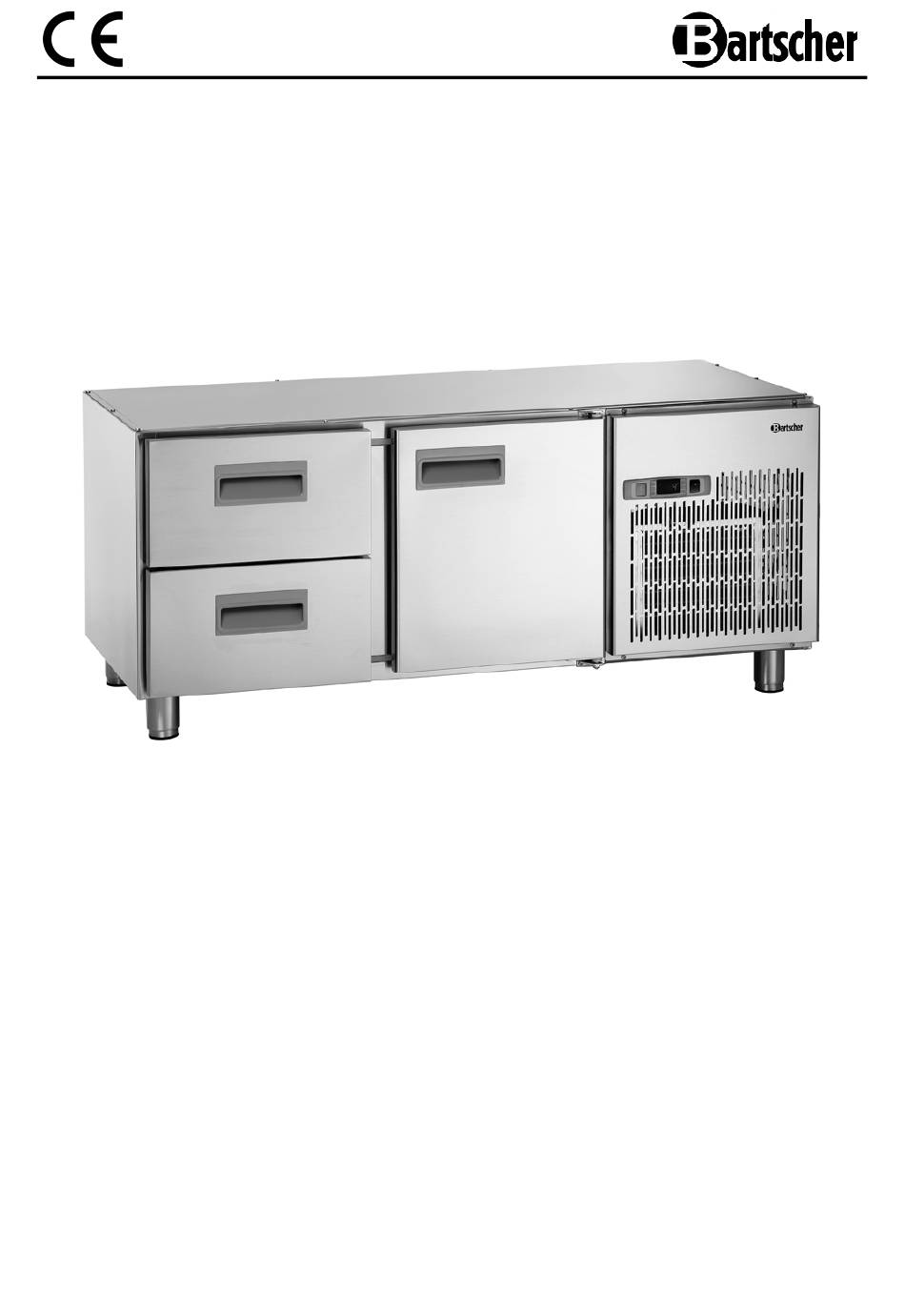

- Page 1 1400T1S2 110900 Original-Gebrauchsanleitung V1/0916...
-
Page 2: Table Of Contents
5. Installation and operation ..................31 5.1 Installation ......................31 5.2 Operation ......................33 6. Cleaning and maintenance ..................37 7. Possible Malfunctions .................... 39 8. Waste disposal ......................40 Bartscher GmbH Franz-Kleine-Str. 28 D-33154 Salzkotten phone: +49 (0) 5258 971-0 Germany fax:... -
Page 3: Safety
Read these instructions before using and keep them available at all times! This instruction manual contains information about the installation, operation and maintenance of the device and should be consulted as an important source of information and reference guide. Awareness of the safety instructions and instructions for use in this manual will ensure the safe and correct use of the device. -
Page 4: Safety Instructions
CAUTION! This symbol highlights dangerous situations which could lead to light injuries, or damage, malfunction, and/or destruction of the device. NOTE! This symbol highlights recommendations and information aimed for effective and trouble-free device operation. 1.2 Safety instructions • The device is not intended for use by individuals (including children) with physical or mental disabilities, insufficient experience, and/or insufficient knowledge unless such persons are under the care of a person responsible for their safety or... - Page 5 • Do not use any accessory or spare parts that have not been recommended by the manufacturer. These can be dangerous for the user or lead to damages of the device or personal injury, and further, the warranty expires. • To prevent hazards and to ensure optimum efficiency, no modifications or alterations to the device that are not explicitly approved by the manufacturer may be undertaken.
- Page 6 • In any case do not open the device housing. In case of electrical or mechanical modifications the electric shock hazard will occur. • Never immerse the power cord or plug in water or other liquids. • Do not use any acid agents and make sure no water ingresses the device.
-
Page 7: Proper Use
• Do not store gasoline or other flammable substances in the vicinity of the device. The vapours may cause fire or explosion. • Do not store the explosive objects in the device, like cans with explosive work substances. • Do not allow for the cooling circuit damages. 1.3 Proper use CAUTION! The device has been designed and constructed only for commercial use... -
Page 8: General Information
2. General information 2.1 Liability and Warrantees All the information and instructions in this manual take into account standard safety regulations, current levels of technical engineering as well as the expertise and experience we have developed over the years. The instruction manual was translated with all due care and attention. However, we do not accept liability for any translation errors. -
Page 9: Transport, Packaging And Storage
3. Transport, packaging and storage 3.1 Delivery check Please check the delivery upon completeness and transport damage immediately after receipt. In case of visible damage do not accept or accept the delivery with reservation only. Note the extent of damage on the carrier’s bill of delivery. Trigger off the complaint. Hidden damages should be reclaimed immediately after notice, as claims for damages can only be asserted within the effective period for complaints. -
Page 10: Technical Data
4. Technical data 4.2 Overview of parts Control elements Housing Ventilation holes Feet (4) Control elements Door Grid 1/1 GN (1) Drawers (2) Digital temperature controller ON / OFF switch with integrated lamp (green) - 29 -... -
Page 11: Technical Specification

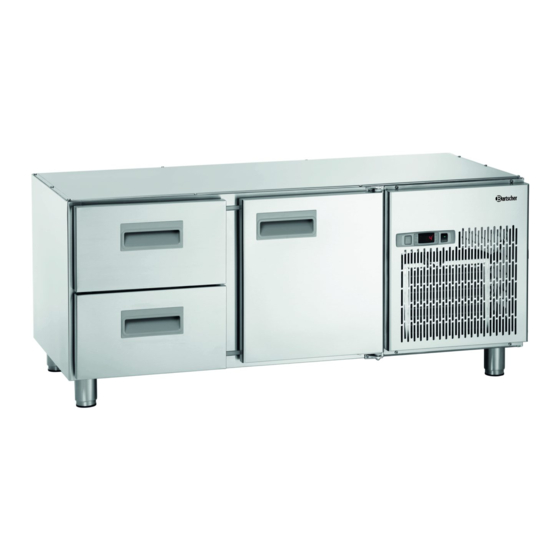

4.1 Technical specification Refrigerated counter as substructure 1400T1S2 Name 110900 Code-No.: Material High-grade stainless steel 2 drawers, cooled, internal dimensions of each drawer: W 305 x D 520 x H 145 mm 1 cabinet, cooled, internal dimensions: W 388 x D 540 x H 454 mm... -
Page 12: Installation And Operation
5. Installation and operation 5.1 Installation CAUTION! All installation, assembly and maintenance work must be performed by specialists with relevant professional qualifications (approved by the manufacturer or seller) while observing the applicable law in the country in which the installation is performed as well as the regulations regarding the safety of the product and workplace. - Page 13 • Before the first use, remove the protection foil from the device. Remove it slowly to ensure no glue resideues remain. Remove possible glue residues with appropriate solvent. CAUTION! Never remove the rating plate and any warning signs from the device. •...
-
Page 14: Operation
5.2 Operation CAUTION! Carefully read this operation manual as it contains instructions for safety and operation of the device. Keep the manual for later use. Improper installation, operation, maintenance and cleaning, as well as any modifications may cause incorrect operation, damages, and injuries. Before the first use •... - Page 15 Combination of buttons To activate or deactivate some of the functions you may need to press more than one button at the same time. Block or unblock the buttons: - to block, press both buttons and hold longer than 3 seconds, until you see “OFF”...
- Page 16 Operation and settings Indication of required value • shortly press button to show the required temperature; • press button again or wait 5 seconds to return to the previous indication. Change of required value (required temperature) • press and hold button for at least 3 seconds;...
- Page 17 Defrosting manually In addition to automatic defrosting, manually defrosting can be activated at any time, to do this, hold down the for more than 2 seconds. Manual defrosting commences. The digital display shows „ “. NOTE! Condensed water is collected in the condensate container and evaporates automatically.
-
Page 18: Cleaning And Maintenance
6. Cleaning and maintenance WARNING! Before cleaning disconnect the device from the power supply (pull the plug!). Do not use pressurized water jet for cleaning the device! Protect the device from the water penetration. CAUTION! Never use aggressive cleaning agents, such as scouring powders, alcohol-based substances, or solvents which may damage the surfaces of the device. - Page 19 Condenser CAUTION! Contaminated condenser impairs the device operation and increases energy consumption! To maintain the device operation efficiency periodically (once a week) clean the condenser according to the instructions below. o Before cleaning disconnect the device from the power supply (pull the plug!). o Loosen 4 screws at the protective grid in front of the device and remove the grid.
-
Page 20: Possible Malfunctions
7. Possible Malfunctions In case of malfunction immediately disconnect the device from the power supply. Before contacting the customer service department or vendor check the troubleshooting table below. Problem Possible reason Solution • Plug improperly inserted • Remove the plug and insert into socket. -
Page 21: Waste Disposal
CAUTION! For the disposal of the device please consider and act according to the national and local rules and regulations. Bartscher GmbH Franz-Kleine-Str. 28 33154 Salzkotten phone: +49 (0) 5258 971-0 Germany...
