Summary of Contents for SCHUNK ADR-C
- Page 1 Translation of the original manual Turning rings ADR-C Assembly and operating manual Superior Clamping and Gripping...
- Page 2 Imprint Copyright: This manual remains the copyrighted property of SCHUNK GmbH & Co. KG. It is solely supplied to our customers and operators of our products and forms part of the product. This documentation may not be duplicated or made accessible to third parties, in particu- lar competitive companies, without our prior permission.
-
Page 3: Table Of Contents
2.4 Personnel qualification ................... 7 2.5 Using personal protective equipment ..............7 3 Warranty ........................8 4 Scope of delivery ...................... 8 5 Function and handling ....................9 5.1 Application images ....................12 6 Part numbers ......................13 01.01|ADR-C |en... -
Page 4: About This Manual
General mandatory sign to prevent material damage Applicable documents • General terms of business • Catalog data sheet of the purchased product • The operating manual of the relevant chuck The documents listed here, can be downloaded on our homepage www.schunk.com 01.01|ADR-C |en... -
Page 5: Basic Safety Notes
Intended use The ADR-C turning rings serve to turn Ø 30 - Ø 248 soft jaws at 2 mm distances. The product may only be used on the basis of its technical data. It can be used for a 2- 3- or 6-jaw chuck. The specified maximum technical data must not be exceeded during use. -
Page 6: Notes On Particular Risks
Do not reach between the jaws. Wear personal protective equipment. Prevent the power chuck from being operated unintentionally. NOTICE Do not load the sides of the clamping pins! There is a danger of the clamping pins shearing off. 01.01|ADR-C |en... -
Page 7: Personnel Qualification
When using this product, observe the relevant industrial safety regulations and use the personal protective equipment (PPE) required! • Use protective gloves, safety shoes and safety goggles. • Observe safe distances. • Minimal safety requirements for the use of equipment. 01.01|ADR-C |en... -
Page 8: Warranty

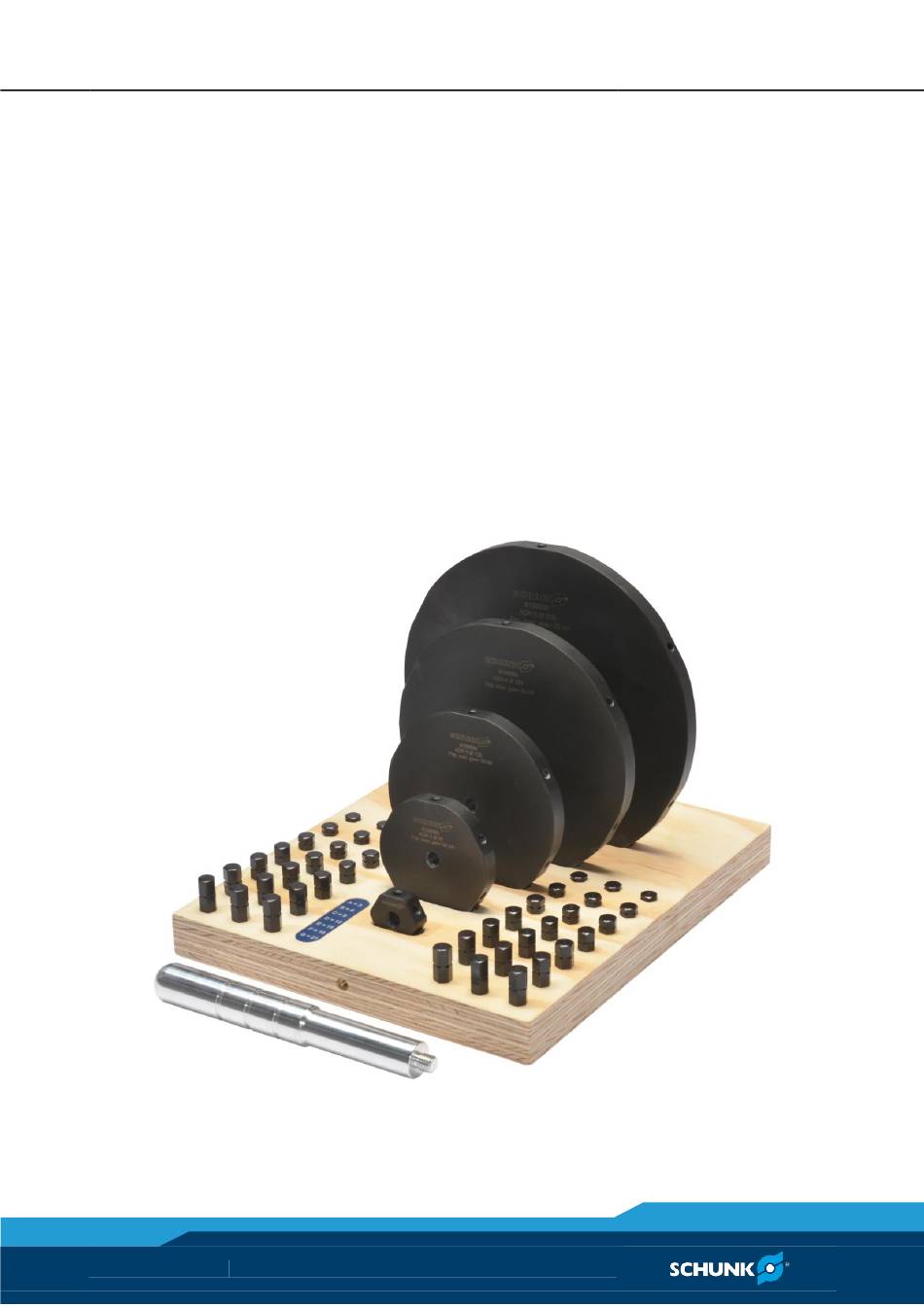

Warranty / Scope of delivery Warranty The warranty is valid for 24 months from the delivery date to the production facility when used as intended. Scope of delivery 1 complete set of turning rings and clamping pins as shown 01.01|ADR-C |en... -
Page 9: Function And Handling
The ADR-C turning rings are easy to use and versatile. It is possible to cover all intermediate stops for turning soft jaws of Ø 30 to Ø 250 at 2 mm distances. The ADR-C turning rings can be used for 2-, 3- or 6-jaw chucks. - Page 10 In order to clamp the chuck jaws of a chuck to a diameter of 196 mm, you require turning ring 4 (ADR 4) with Ø 164 and 2 x clamping pins F with a height of 18 mm plus 1 x clamping pin E with a height of 15 mm. 01.01|ADR-C |en...
- Page 11 Function and handling 01.01|ADR-C |en...
-
Page 12: Application Images
Function and handling Application images 01.01|ADR-C |en... -
Page 13: Part Numbers
Transport protection 6100001 Stud bolt 6100002 Turning ring Ø 33 6100003 Turning ring Ø 76 6100004 Turning ring Ø 120 6100005 Turning ring Ø 164 6100006 Turning ring Ø 208 0122175 Set of clamping pins, hard 6100022 Aluminum plate 01.01|ADR-C |en...
