Summary of Contents for Skope VF650

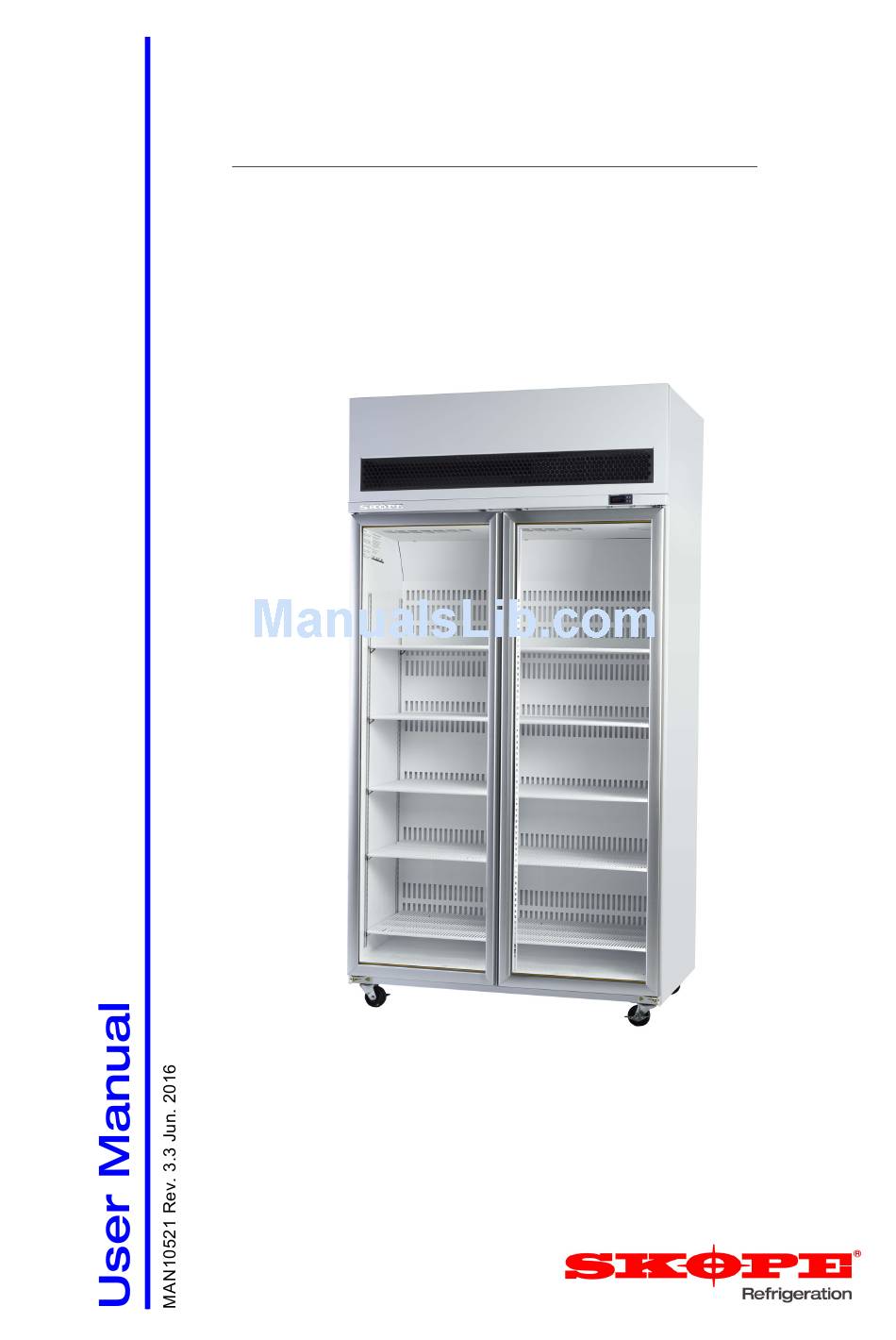

- Page 1 VF Series SKOPE Vertical Freezer VF1000...
- Page 2 For pricing information on an extended warranty visit www.skope.com/warrantyprotection Service & Support We know you will get years of satisfaction from your new SKOPE product when you follow a few simple preventative maintenance guidelines.
-
Page 3: Table Of Contents
Troubleshooting......... 15 SKOPE VF Series... -
Page 4: Installation
This appliance is not designed to be stable while in motion. Use extreme caution when moving or transporting the appliance. Please contact SKOPE customer services for advice regarding disposal of this appliance. WARNING Always isolate the freezer from the mains power supply before attempting any maintenance. -
Page 5: Positioning The Cabinet
SKOPE VF Series Positioning the Cabinet Climate Class The freezer is designed to operate within a climate class 5 environment (40°C @ 40% RH). We recommend that you put the freezer in the coolest place possible because it will use less power and last longer. -
Page 6: Shelves
SKOPE VF Series Shelves The freezer is supplied with five wire shelves which may be positioned at different heights to suit various products. Always ensure that the shelf clips are securely engaged in each of the shelf support strips. Support strips are marked ‘+’... -
Page 7: Operation
SKOPE VF Series Operation Automatic Start-Up After the cabinet has been positioned in a suitable place, plug it in and check the following activity. Item Activity The condenser fan starts and runs at a slow speed. When the Condenser Fan compressor starts, the condenser fan will run at full speed. -
Page 8: Electronic Controller
The electronic controller is pre-programmed and usually requires no initial setup or additional programming. SKOPE does not recommend that the settings be changed unless necessary. Note: Twin unit freezers freezers are fitted with two electronic controllers, one for each refrigeration unit. -
Page 9: Defrost
SKOPE VF Series Defrost To ensure efficient operation, the electronic controller forces a defrost cycle when required. During a defrost cycle, the compressor stops, DEF and the will display on the electronic controller faceplate. The freezer will resume normal operation once the defrost cycle has finished. A manual defrost can also be initiated by pressing and holding the button. -
Page 10: Controller Reset
SKOPE VF Series Controller To delete program modifications and reset the controller to SKOPE default Reset program or when a replacement controller is being fitted, a ‘Controller Reset’ must be performed. To reset the controller 1. Disconnect the freezer from the power supply. -
Page 11: Alarms
12). temperature 4. Unplug cabinet from the power supply for 1 alarm Flashing minute, then reconnect to power supply. If problems persist, contact SKOPE Door open Check door is closed. alarm High ambient Check ventilation and operating conditions (see alarm page 5). -
Page 12: Servicing
SKOPE VF Series Servicing Cleaning Ensure the freezer is disconnected from the power supply before cleaning. WARNING Twin unit freezers have two seperate power supplies. Ensure both supplies are disconnected before undertaking any service or maintenance work. Cabinet Periodically wipe the inside and outside of the cabinet with a damp cloth, taking care to keep moisture away from electrical parts. -
Page 13: Lighting
VF1500 2 x pillar lights: Twin 22 Watt T8 LED tube (Ø26mm x 1500mm) To replace the cabinet interior side light (model VF650) 1. Disconnect the freezer from the power supply. 2. Remove the diffuser by squeezing it until it is released from the aluminium housing, and then push the diffuser out of the way. -
Page 14: Sign Light
SKOPE VF Series Sign Light Not as standard - lit sign freezers only. The sign unit is lit by one LED tube (see table below for details) which can be replaced by removing the front sign panel. Sign light specifications... -
Page 15: Troubleshooting
SKOPE VF Series Troubleshooting For questions about the electronic controller, see page 11. For problems with the cabinet and refrigeration cassette, use the following table. Problem Possible Cause Suggestions • Cabinet not • Loss of power • Check mains power supply. - Page 16 E-mail: enquiry@skope.com.au Website: www.skope.com.au Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
