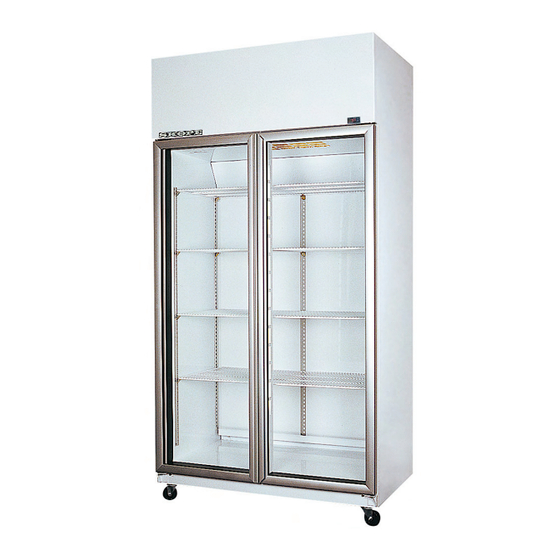

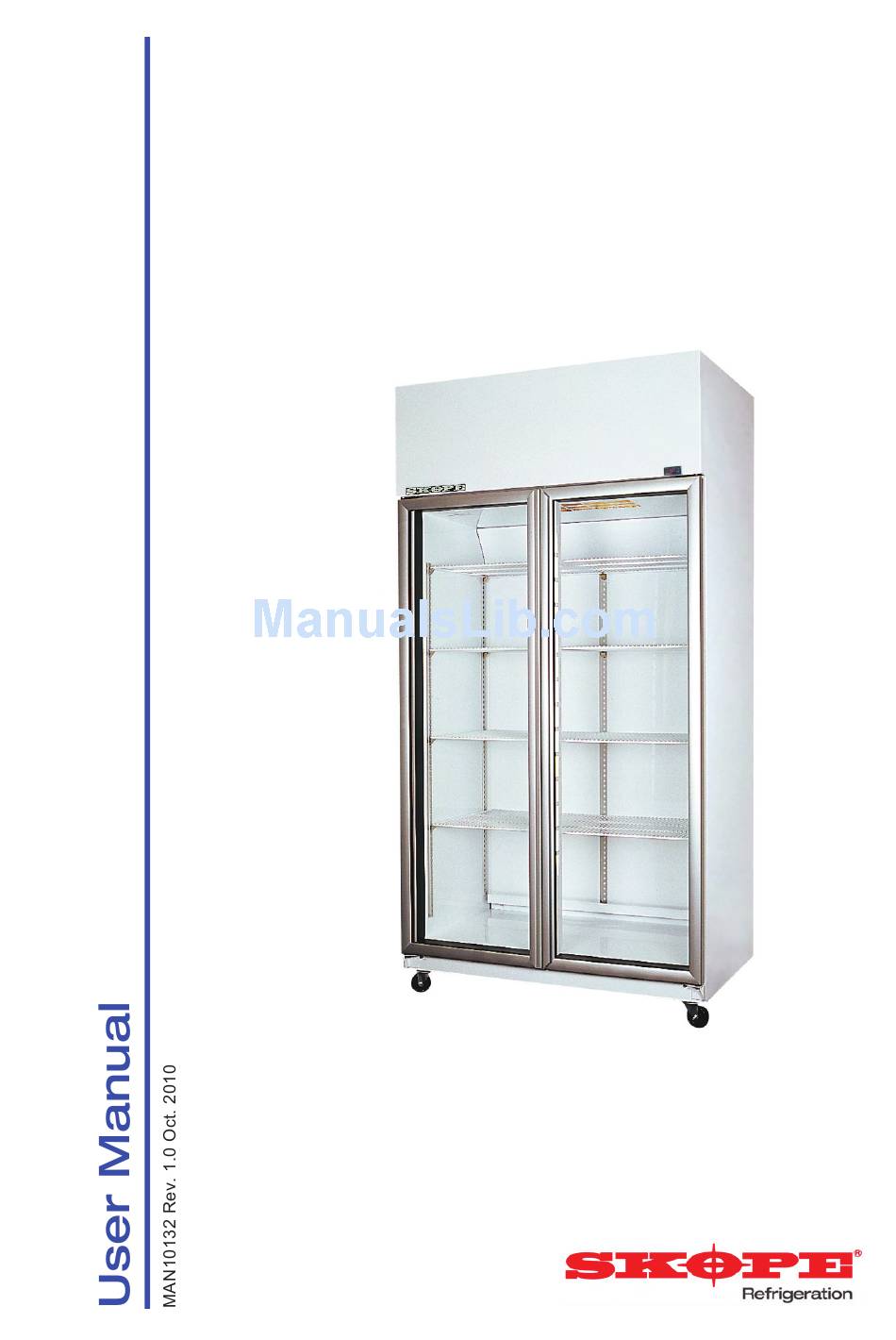

- Page 1 TMEF Series SKOPE Vertical Freezer...
- Page 2 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz Trademark Infringement The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the following: • Applies the trade mark to the product after their state, condition, get-up or packaging has been altered in any manner •...
-
Page 3: Table Of Contents
Centre Pillar Light ........14 SKOPE TMEF Series... -
Page 4: Installation
SKOPE TMEF Series Installation Safety First Always observe safety precautions when using any electrical appliance. Read these instructions carefully and retain them for future reference. When the appliance is used by or near young children or infirm persons, close supervision is necessary, especially to ensure children do not play with it. -
Page 5: Positioning The Cabinet
SKOPE TMEF Series Positioning the Cabinet Before Follow the below steps to ensure the back sign panel is reversed and the Operating rear spacer is protruding from the back of the cabinet (TMEF1500 3 door cabinet only). This will provide the necessary air gap at the rear of the cabinet for correct operation. -
Page 6: Ventilation
SKOPE TMEF Series Ventilation Adequate ventilation is essential: Ensure the is a minimum of 200mm of space above the cabinet and 100mm behind the cabinet. Air onto the refrigeration unit should not exceed 25 °C. Do not cover any ventilation holes on the front and back of the freezer. -
Page 7: Operation
SKOPE TMEF Series Operation Automatic Start-Up After the cabinet has been positioned in a suitable place, plug it in and check the following activity. Item Activity The condenser fan runs continuously throughout all Condenser Fan operations of the machine. The sign and interior lights turn on and stabilise after a few Lighting flickers. -
Page 8: Carel Electronic Controller
SKOPE TMEF Series CAREL Electronic Controller Faceplate Item Description Silences alarm buzzer. Allows entry to frequent parameters section, if pressed for 5 seconds. Allows entry to configuration parameters section, if pressed simultaneously with ‘SEL’ for 5 seconds. Locks in new parameters, and exits parameter sections. -
Page 9: Operation
SKOPE TMEF Series Operation The operation of this cabinet is controlled by a pre-programmed microprocessor. The Microprocessor display indicates the temperature of the cabinet ambient probe, except during a defrost where the temperature of the cabinet probe is locked in, and during an alarm condition. -
Page 10: Alarms And Signals
Press aux (up) and def (down) together, (down key first) to initiate a Refrigeration ‘Continuous Refrigeration’ mode. The compressor will run without interruption to the parameter ‘cc’ (6 hours: SKOPE programme). Its purpose is to achieve a fast product pull-down. Display During run mode, the display shows the value measured by the ‘Cabinet... -
Page 11: Parameters
The following table describes SKOPE settings for CAREL controller IR32POLBRO. WARNING The following parameters (Table 1: pp.10,11) are set exclusively for the SKOPE freezer program, with its dedicated CAREL controller. Any alteration from this program may adversely effect the operation of the freezer. -
Page 12: Parameter Modification (If Keypad Is Enabled)
SKOPE TMEF Series SKOPE Settings Type Min Max Def Parameter Defrost at cabinet plug in Defrost delay at cabinet plug in Lock in temperature display during defrost Defrost drip time, before compressor and evaporator fan start minutes 1 hour Continuation of d6 at defrost end (until setpoint or d8 elapses) Compressor protection times observed at defrost (c1, c2, c3) n.a Evaporator temperature (via defrost probe) is displayed... -
Page 13: Servicing
SKOPE TMEF Series Servicing Cleaning Cabinet Periodically wipe the inside and outside of the cabinet with a damp cloth, taking care to keep moisture away from electrical parts. As with any maintenance, ensure the cabinet is disconnected from the power supply before cleaning. -
Page 14: Lighting
SKOPE TMEF Series Lighting Interior Side TMEF650 (single door) cabinet. Light The cabinet interior is lit by one 58 Watt T8 fluorescent tubes (Ø26mm x 1150mm), which can be replaced without moving shelves or removing product. To replace the interior side light 1. - Page 15 SKOPE TMEF Series New Zealand Contact SKOPE INDUSTRIES LIMITED Head Office PO Box 1091, Christchurch New Zealand Freephone: 0800 947 5673 Fax: (03) 983 3896 E-mail: enquiry@skope.co.nz Website: www.skope.co.nz Australian Contact SKOPE AUSTRALIA PTY LTD A.C.N. 000 384 270 PO Box 7543, Baulkham Hills B.C.
