INSTALLATION INSTRUCTIONS FOR PART 99-7953
Suzuki Grand Vitara 2006-up
KIT FEATURES
• DIN head unit provision with pocket
• ISO DIN head unit provision with pocket
KIT COMPONENTS
• A) Radio housing • B) ISO brackets • C) Trim plate
A
WIRING & ANTENNA CONNECTIONS (sold separately)
Wiring Harness:
• 70-1721 - Honda harness 1998-up
Antenna Adapter:
• Not required
• Small flat blade screwdriver • Phillips screwdriver • Socket wrench
APPLICATIONS
99-7953
B
TOOLS REQUIRED
METRA. THE WORLD'S BEST KITS.™
1-800-221-0932
© COPYRIGHT 2004-2011 METRA ELECTRONICS CORPORATION
C
metraonline.com
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Metra Electronics 99-7953
Summary of Contents for Metra Electronics 99-7953

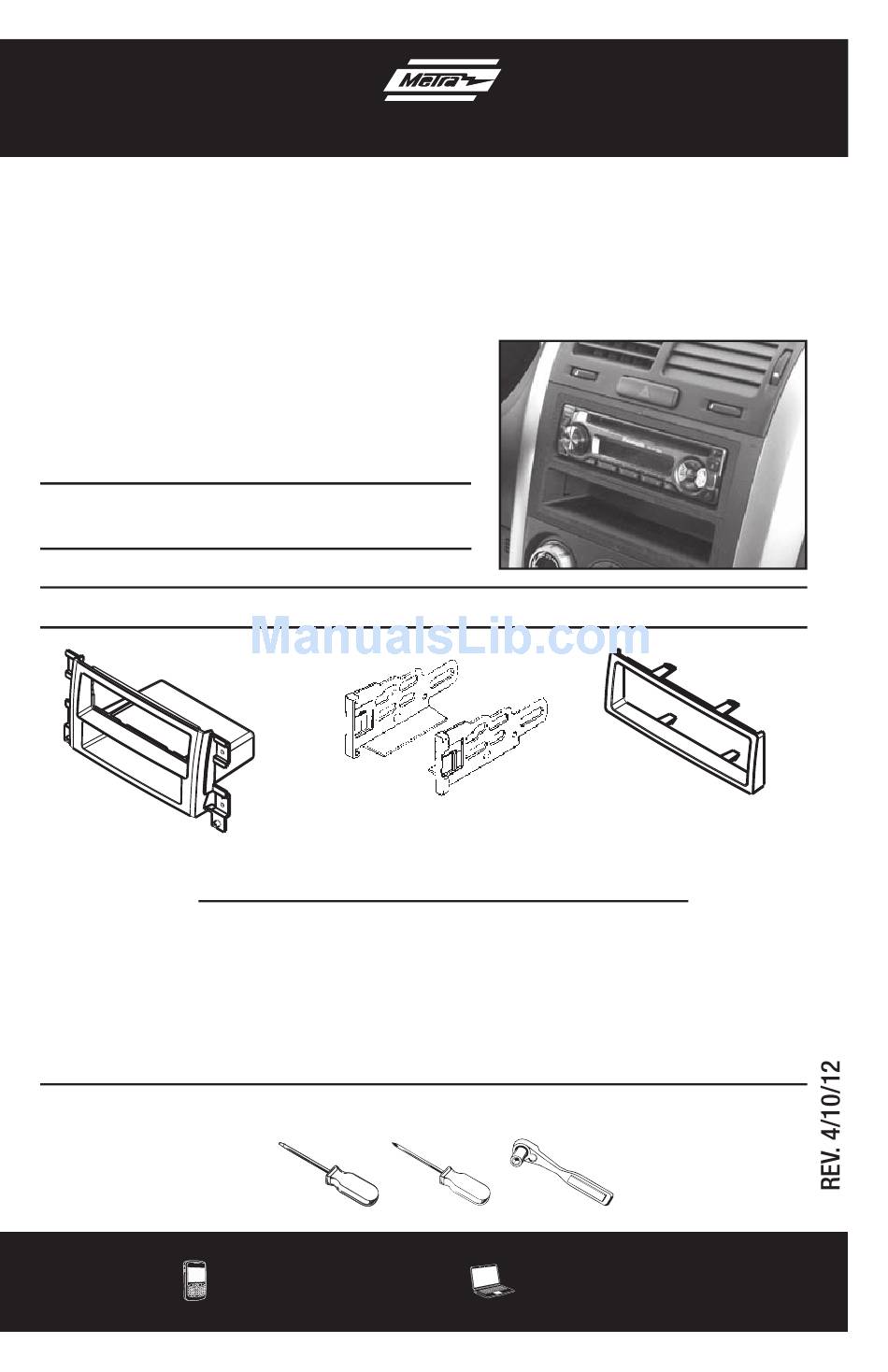

- Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7953 Suzuki Grand Vitara 2006-up KIT FEATURES • DIN head unit provision with pocket • ISO DIN head unit provision with pocket KIT COMPONENTS • A) Radio housing • B) ISO brackets • C) Trim plate WIRING &...
- Page 2 All accessories, switches, and especially air bag indicator lights must be plugged in before reconnecting the battery or cycling the ignition. Note: Refer to the instructions included with the aftermarket radio. 99-7953 NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
- Page 3 Dash Disassembly 99-7953 Suzuki Grand Vitara 2006-up 1. Unclip and remove the (2) outside trim panels. (Figure A) 2. Remove (6) Phillips screws securing the radio and climate controls to the sub dash. (Figure B) 3. Remove the (2) Phillips screws securing the factory radio bracket to the radio/ climate control assembly.
-
