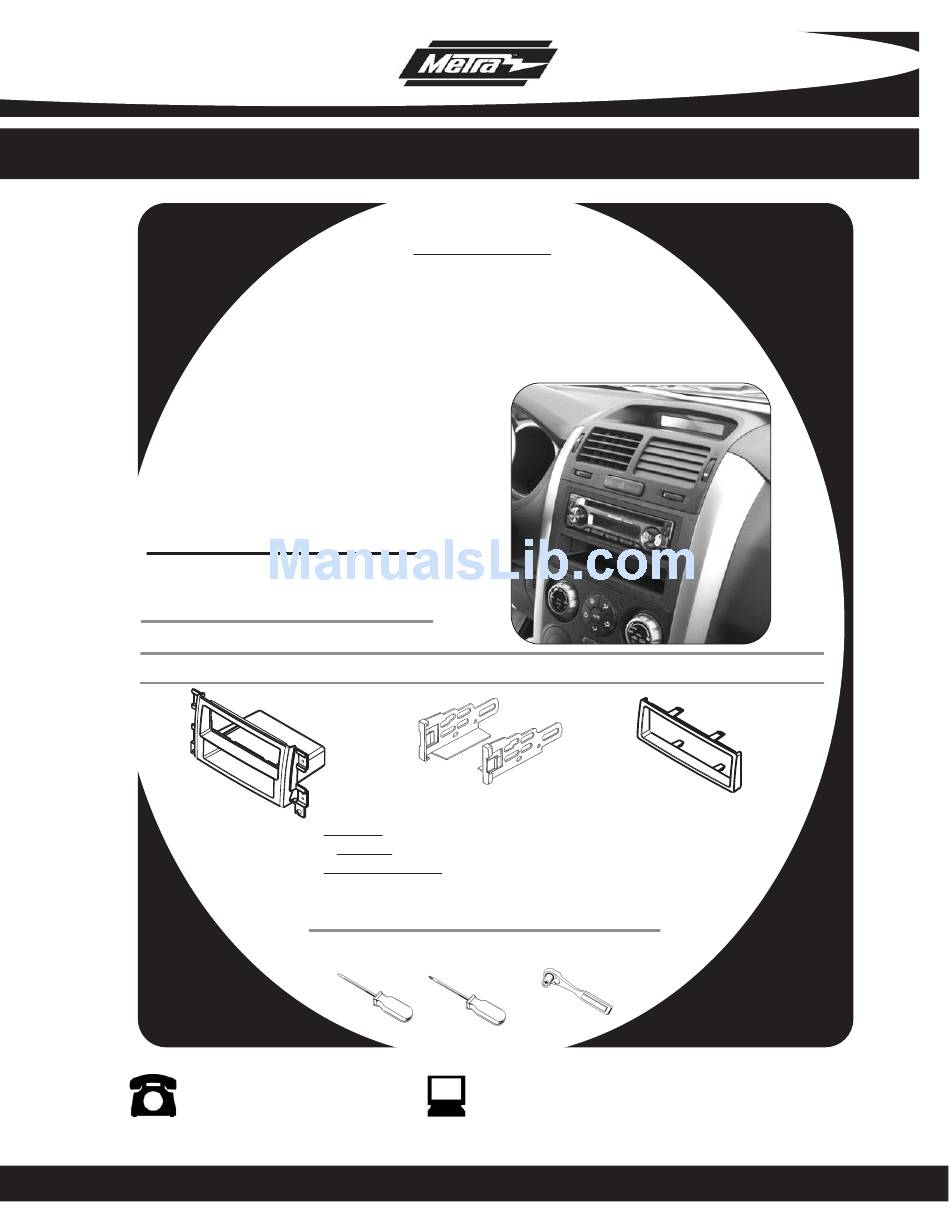

INSTALLATION INSTRUCTIONS FOR PART 99-7953

99-7953

• DIN Head Unit Provision with pocket

• ISO DIN Head Unit Provision with pocket

A) Radio Housing • B) ISO Brackets • C) Trim Plate

Flat Blade Screwdriver • Phillips Screwdriver • Socket Wrench

1-800-221-0932

APPLICATIONS

Suzuki Grand Vitara

2006-2008

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

Harness:

• 70-1721 - Honda harness 1998-up

Antenna Adapter:

• Not required

www.metraonline.com

Table of Contents

Need help?

Do you have a question about the 99-7953 and is the answer not in the manual?

Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7953 APPLICATIONS Suzuki Grand Vitara 2006-2008 99-7953 KIT FEATURES • DIN Head Unit Provision with pocket • ISO DIN Head Unit Provision with pocket KIT COMPONENTS A) Radio Housing • B) ISO Brackets • C) Trim Plate...
Page 2: Final Assembly
99-7953 T ABLE OF CONTENTS Dash Disassembly ................1 Kit Assembly ..................2 Final Assembly ................. 3 NOWLEDGE IS OWER Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
Page 3 99-7953 DASH DISASSEMBL Y SUZUKI GRAND VIT ARA 2006-2008 Disconnect the negative battery terminal to prevent an accidental short circuit. Unclip and remove the (2) outside trim panels. (Figure A) Remove (6) Phillips screws securing the radio and climate controls to the sub dash.
Page 4 99-7953 KIT ASSEMBL Y N N O O T T E E : : Mount the radio housing to the climate control assembly with the factory hardware DIN HEAD UNIT PROVISION Slide the DIN cage into the Radio Housing and secure by bending the metal locking tabs down.
Page 5 99-7953 FINAL ASSEMBL Y FINAL ASSEMBL Y 1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent electrical short circuit.)
Page 6 99-7953 NOTES...
Page 7 99-7953 NOTES...
