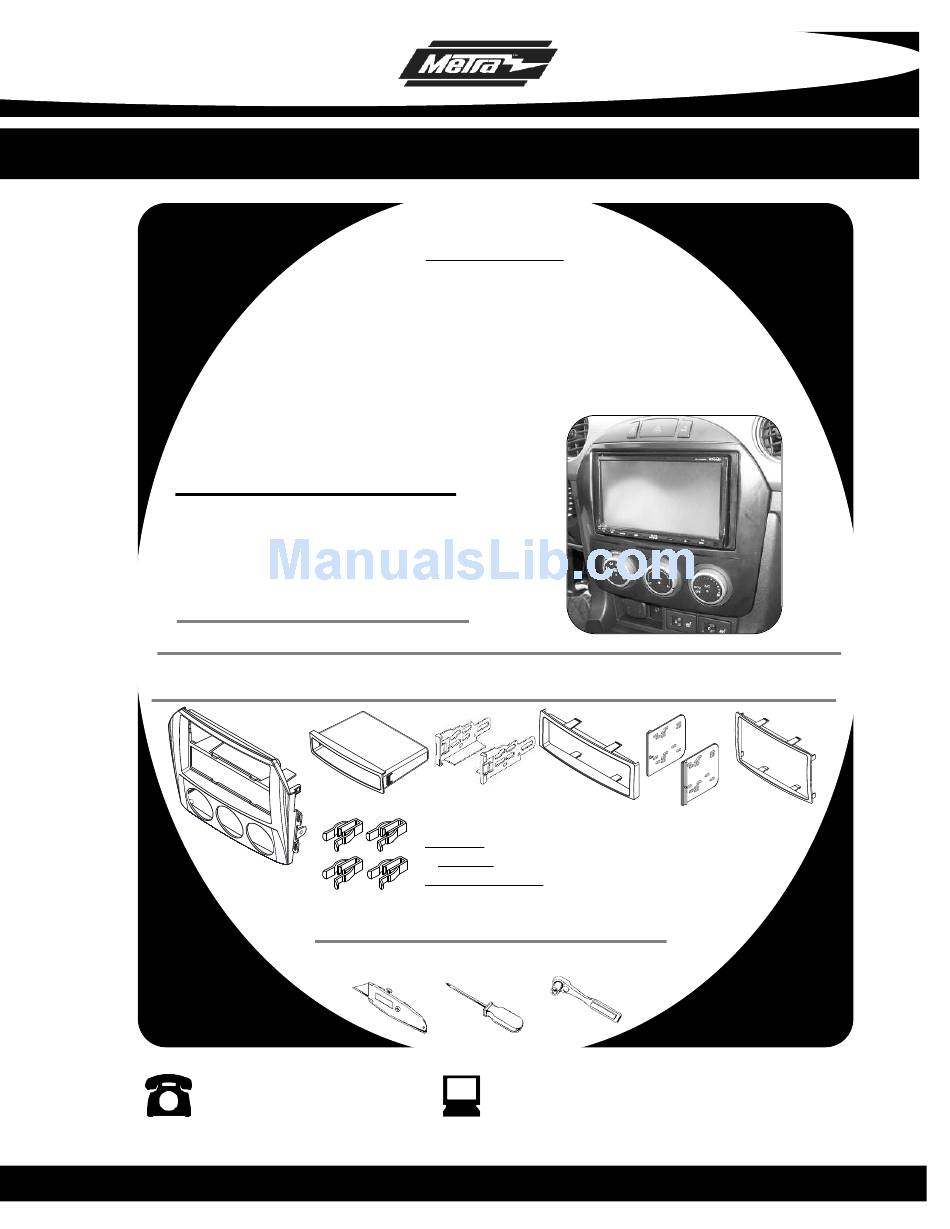

INSTALLATION INSTRUCTIONS FOR PART 99-7519B
99-7519B
KIT FEATURES
• DIN Head Unit Provision with pocket
• ISO DIN Head Unit Provision with pocket
• Double DIN Head Unit Provision
• Stacked ISO DIN Head Unit Provision
• Painted Matte Black to Match Factory
KIT COMPONENTS
A) Radio Housing • B) Snap-In Pocket • C) ISO Brackets • D) ISO Trim Plate • E) Double DIN Brackets
A
1-800-221-0932
APPLICATIONS
Mazda MX-5 Miata
2009-2010
• F) Double DIN Trim Plate • G) (4) Panel Clips
C
B
WIRING AND ANTENNA CONNECTIONS (Sold Separately)
Harness:
• 70-7903 - Mazda harness 2001-up
Antenna Adapter:
• Not required
F
TOOLS REQUIRED:
Cutting Tool • Phillips Screwdriver • Socket Wrench
© COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION
D
E
www.metraonline.com
F

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 99-7519B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Metra Electronics 99-7519B

Summary of Contents for Metra Electronics 99-7519B

  • Page 1 INSTALLATION INSTRUCTIONS FOR PART 99-7519B Mazda MX-5 Miata 99-7519B KIT FEATURES • DIN Head Unit Provision with pocket • ISO DIN Head Unit Provision with pocket • Double DIN Head Unit Provision • Stacked ISO DIN Head Unit Provision • Painted Matte Black to Match Factory KIT COMPONENTS A) Radio Housing •...

  • Page 2: Table Of Contents

    99-7519B TABLE OF CONTENTS Dash Disassembly ... 1-3 Kit Preparation ... 4 Kit Assembly: DIN Head Unit Provision... 5 ISO DIN Head Unit Provision... 6 Double DIN Head Unit Provision... 7 Stacked ISO DIN Head Unit Provision... 8 Final Assembly ... 9...

  • Page 3: Dash Disassembly

    99-7519B MAZDA MX-5 MIATA 2009-2010 Unclip panel below steering column and remove. (Figure A) Remove (4) Phillips screws from metal brace below steering column and remove. (Figure A) Looking at the side of the radio/cli- mate control panel from underneath...
  • Page 4 99-7519B MAZDA MX-5 MIATA 2009-2010 Unclip, unplug and remove the entire center console. (Figure E) Remove the (2) Phillips screws securing the side panels from each side of the radio/climate control panel. (Figure F) Carefully remove the side panels from each side of the radio/climate control panel by pulling straight back towards the rear of the car.

  • Page 5: Dash Disassembly

    99-7519B DASH DISASSEMBLY MAZDA MX-5 MIATA 2009-2010 Remove (2) Phillips screws, (1) on each side, from the side of the radio/climate control panel. (Figure H) Pull radio/climate control panel out, disconnect plugs and remove. (Figure I) Turn the radio/climate control panel...

  • Page 6: Kit Preparation

    99-7519B KIT PREPARATION MAZDA MX-5 MIATA 2009-2010 Attach the (4) Panel Clips to the posts on the back of the radio housing. (Figure A)

  • Page 7: Kit Assembly

    99-7519B DIN HEAD UNIT PROVISION Turn over the 99-7519B housing, take the climate control and screws removed from the factory panel and attach the climate control to the kit housing using the factory screws. (Figure A) Slide the pocket into the bottom section of the kit housing.

  • Page 8: Iso Din Head Unit Provision

    99-7519B ISO DIN HEAD UNIT PROVISION Turn over the 99-7519B housing, take the climate control and screws removed from the factory panel and attach the climate control to the kit housing using the factory screws. (Figure A) Slide the pocket into the bottom section of the kit housing.

  • Page 9: Double Din Head Unit Provision

    99-7519B DOUBLE DIN HEAD UNIT PROVISION Turn over the 99-7519B housing, take the climate control and screws removed from the factory panel and attach the climate control to the kit housing using the factory screws. (Figure A) Cut the rib in the middle of the 99- 7519B housing to make room for the DDIN brackets.

  • Page 10: Stacked Iso Din Head Unit Provision

    99-7519B STACKED ISO DIN HEAD UNIT PROVISION Turn over the 99-7519B housing, take the climate control and screws removed from the factory panel and attach the climate control to the kit housing using the factory screws. (Figure A) Cut the rib in the middle of the 99- 7519B housing to make room for the DDIN brackets.

  • Page 11: Final Assembly

    99-7519B FINAL ASSEMBLY 1 Locate the factory wiring harness in the dash and make the connection as shown. Metra recomends using the proper mating adapter and making the connections as shown. (Isolate and individually tape off the ends of any unused wires to prevent 2 Re-connect the negative battery terminal and test the unit for proper operation.
  • Page 12 99-7519B INSTRUCTIONS 1-800-221-0932 www.metraonline.com © COPYRIGHT 2004-2010 METRA ELECTRONICS CORPORATION INST99-7519B REV. 09/29/10...
