Summary of Contents for Lightronics DB-612
- Page 1 DB - 612 TRUSS MOUNT DIMMER OWNERS MANUAL Revision 0.6 01/20/2005 www.lightronics.com Lightronics Inc 509 Central Drive Virginia Beach, VA 23454 Tel 757 486 3588...
-
Page 2: Description Of Unit

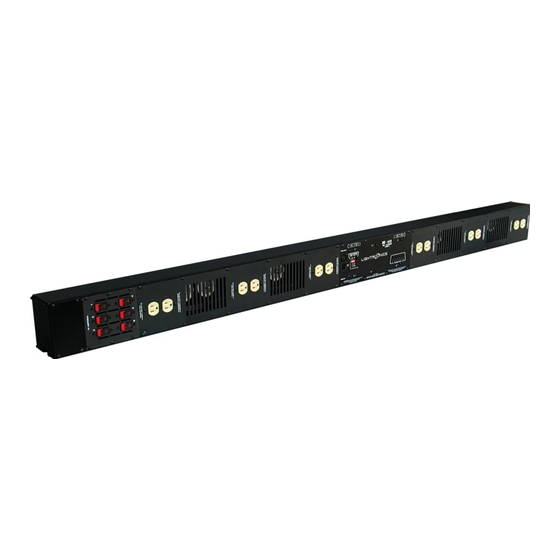

DESCRIPTION OF UNIT The DB-612 is a 6 channel dimmer with a capacity of 1,200 watts per channel giving a total of 7200 watts. The DB-612 is controlled by a control console using the USITT DMX-512 lighting control protocol. Individual channels may be set to operate in "relay"... -
Page 3: Power Requirements
POWER REQUIREMENTS Each DB-612 requires both lines of a SINGLE PHASE 120/240 VOLT AC service at 30 Amps per line or THREE PHASE 120/208 VOLT AC service at 20 Amps per line. A neutral conductor is needed. The unit requires a line frequency of 60HZ. - Page 4 01/20/2005 KNOCKOUTS Power access to the DB-612 is through the left end cover plate which has dual knockouts. The right end cover plate also has dual knockouts which "punch out" in the opposite direction. These end cover plates may be exchanged to accommodate your particular installation.
- Page 5 NEUT SINGLE PHASE POWER CONNECTIONS The DB-612 may be field converted to accommodate a SINGLE PHASE 120/240 power service. Consult the applicable electrical codes for your location for exact wire specifications. The unit must be powered from a circuit providing a minimum of 30 Amps per line (2 pole 30 Amp circuit breaker). The minimum wire size is AWG#10.
-
Page 6: Phase Selection
CONTROL SIGNAL The DB-612 is intended to be used with a control console which has been UL-508 Certified or uses only Low Voltage power. This ensures that any cabling or other power anomalies will not damage the DB-612 or your console. -
Page 7: Operation
A DMX terminator consists of a 120 Ohm resistor connected across the DMX DATA + and DMX DATA - lines. The DB-612 contains a built in terminator which may be switched in or out. The left end DIP switch on the unit center panel will apply the terminator if moved to the UP position. -
Page 8: Maintenance And Repair
OPERATING AND MAINTENANCE ASSISTANCE If service is required, contact the dealer from whom you purchased the equipment or return it to the Lightronics Service Department, 509 Central Drive, Virginia Beach, VA 23454. TEL 757 486 3588. All items returned for service must include a description of the problem along with your name, address, and phone number. -
Page 9: Warranty
H) This warranty does not cover the cost of shipping products to or from Lightronics for service. I) Lightronics Inc. reserves the right to make changes as deemed necessary to this warranty... - Page 10 Lightronics Inc. 509 Central Drive, Virginia Beach VA 23454 (757) 486 3588 20041130...
