Mega System Tech iCAMView iCV-01a User Manual page 39

Chapter 5: iCAMView Web Manager

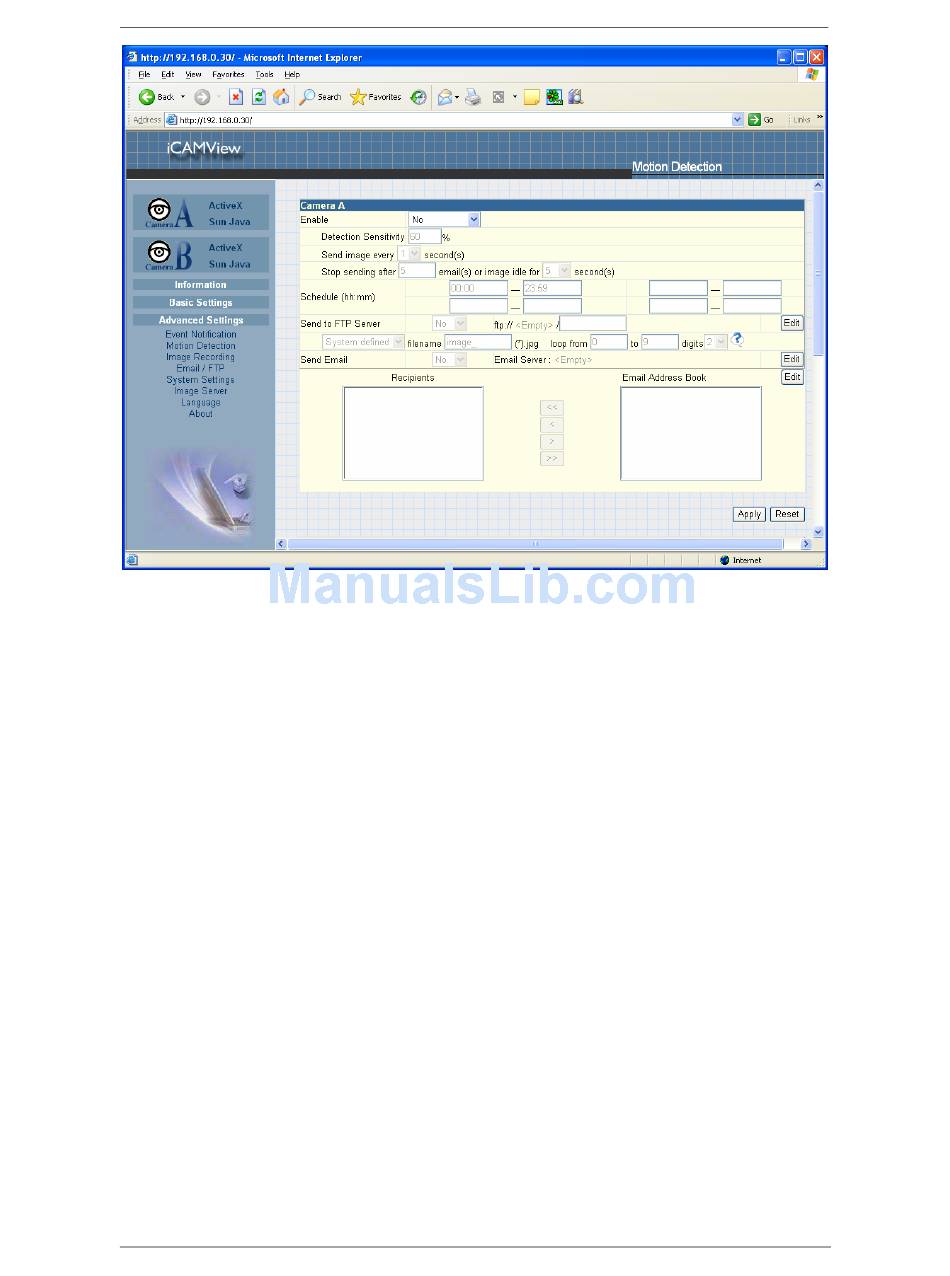

Fig.34. iCAMView Motion Detection Page
"Send to FTP Server"
This option allows the administrator to send and store the motion detected
images on a FTP site. This is useful for future reference and recording purpose.
Click "Yes" to activate.
"ftp://<empty>/<folder>"
This box allows the administrator to determine the file location within the FTP
site. If you have not entered a FTP server, the above will be left <empty>.
To setup the FTP server, click "Edit" to go to the Email / FTP Page. Once you
have entered the FTP server, login name and password, click "Apply" and then
Click on "Motion Detect" to return here.
Enter a directory or folder name in <folder>. Click "Apply" when done.
"System Defined / User Defined"
The administrator can also determine to either have the system automatically
assign the filenames for the pictures saved. Or assign these filenames.
"Filename"
Give the motion detected JPG images a standard filename prefix, to be followed
by looping number suffix.
iCAMView user manual -36-
