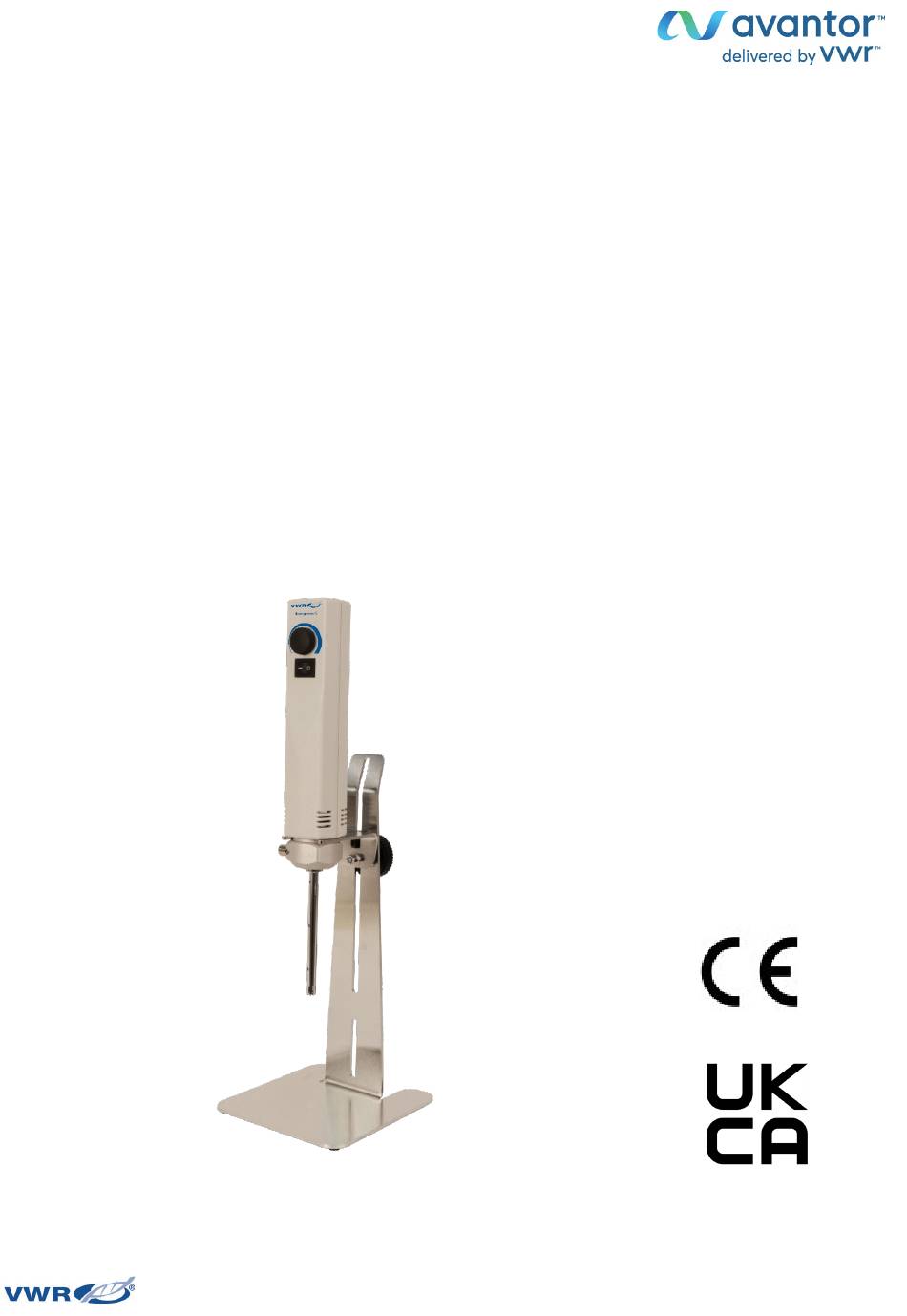

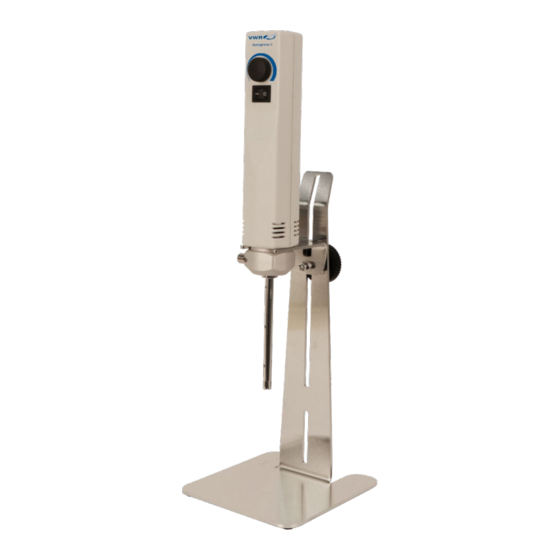

- Page 1 Instruction manual Homogeniser S ® and compatible accessories EU cat. no 431-0290 Version 01 Issue 10/2021...
-
Page 2: Legal Address Of Manufacturer
LEGAL ADDRESS OF MANUFACTURER EUROPE VWR International bv, Researchpark Haasrode 2020 Geldenaaksebaan 464 B-3001 Leuven +3216385011 be.vwr.com UK IMPORTER VWR International Ltd Hunter Boulevard, Magna Park Lutterworth, Leicestershire, LE17 4XN uk.vwr.com COUNTRY OF ORIGIN Switzerland vwr.com I Instruction manual VWR Homogeniser S ®... -
Page 3: Table Of Contents
DANGER AREA ................................7 AREAS OF RESPONSIBILITY ............................. 7 GENERAL SAFETY RULES ............................8 RESIDUAL DANGERS ..............................8 WARNINGS ..................................9 VWR HOMOGENISER DISPERSING ATTACHMENTS ....................10 SPECIFICATIONS / TECHNICAL DATA ........................11 INSTALLATION ................................12 UNPACKING ................................12 ASSEMBLING ................................12 PLATE STAND ................................ -
Page 4: Introduction
This chapter gives information on the structure of this document. It will assist you in making use of it and show how to find the required information quickly. EQUIPMENT INCLUDED IN THIS MANUAL Description EU cat. No. VWR Homogeniser S Drive Unit 431-0290 Stand for VWR Homogeniser S 431-0275 Aggregate Tool VWR AT-512... -
Page 5: Operating Instructions
OPERATING INSTRUCTIONS Please read through these operating instructions before switching on or attempting to use the equipment. They describe the use of the VWR Homogeniser S, its installation and maintenance and the appropriate replacement parts and accessories. They will help you avoid erroneous use and consequent damage. Although VWR Homogeniser machines are designed for ease of service, this does not release you from the obligation to inspect your equipment carefully and to clean it thoroughly. -
Page 6: Warning Notices
Safety instructions must be observed to ensure safe operation. This symbol indicates high voltage, with risk to health and environment. SAFETY This chapter is directed at all users of VWR Homogeniser equipment. It includes information on safe and optimum use. SUMMARY Any incorrect use of the installed equipment can be dangerous. -
Page 7: User Roles
The service technician bears the responsibility for the “system/equipment danger area”. He ensures that the system/equipment is at all times free from technical faults, safe and functions correctly and takes appropriate measurements if a technical problem occurs (please check chapter “Service” or contact VWR representative). vwr.com I Instruction manual VWR Homogeniser S ®... -
Page 8: General Safety Rules
Stand it on a slip-proof, stable horizontal Tipping of the equipment surface Spitting of the product Wear protective clothing (goggles etc.) Never operate without attachment, never Rotating coupling attempt to touch coupling or rotor vwr.com I Instruction manual VWR Homogeniser S ®... -
Page 9: Warnings
• After longer use (15 min) the coupling could get very hot (over 40°C) Never turn your VWR Homogeniser S upside down, if a dispersing unit with remains • of fluid is clutched in. The fluid may damage the bearing of the motor. -
Page 10: Vwr Homogeniser Dispersing Attachments
VWR HOMOGENISER DISPERSING ATTACHMENTS Dispersing units with diameters of 5, 7, 12 mm are available for the VWR Homogeniser S drive motor. The quick release coupling makes it very easy to connect the dispersing unit to the VWR Homogeniser S drive motor. -
Page 11: Specifications / Technical Data
SPECIFICATIONS / TECHNICAL DATA VWR Homogeniser S drive motor unit Type of motor universal-motor with carbon brushes Voltage 100-120 V / 230 V ~ Frequency 50 – 60 Hz Speed at no-load-operation Approx. 25000 rpm Output Power 72 W Input Power... -
Page 12: Installation
Check all parts for possible transport damage. Inform us immediately of any disagreement or fault. ASSEMBLING After unpacking the VWR Homogeniser S System is ready to use. You just have to clutch in the desired dispersing unit. PLATE STAND How to install the Stand for Homogeniser S:... -
Page 13: Commissioning
This can be achieved by tilting the drive by about 15°. Attention • Never allow the VWR Homogeniser dispersion attachment to run without a liquid phase. Running dry will destroy the sleeve bearing. Ensure that the dispersion attachment is thoroughly cleaned after every use. -
Page 14: Service
SERVICE Your VWR Homogeniser unit is designed for easy service. Nevertheless, it is essential to inspect your equipment carefully and to clean it thoroughly. Attention The equipment must be disconnected from the electrical supply: • During any work on the equipment, in order to avoid any personal injury or other damage. -
Page 15: Trouble Shooting
Overheating caused by longterm nearest authorised VWR service anymore. overload use and insufficient centre or directly to VWR cooling. Carbon brushes burnt Send the equipment to the Drive runs stutteringly. Short circuit at motor anchor... -
Page 16: Technical Service
The customer is responsible for applying for and obtaining the necessary regulatory approvals or other authorisations necessary to run or use the Product in its local environment. VWR will not be held liable for any related omission or for not obtaining the required approval or authorisation, unless any refusal is due to a defect of the product. -
Page 17: Equipment Disposal
By doing so, you will help to conserve natural and environmental resources and you will ensure that your equipment is recycled in a manner that protects human health. Thank you. vwr.com I Instruction manual VWR Homogeniser S ®... - Page 18 LOCAL VWR OFFICES IN EUROPE AND ASIA PACIFIC Austria Hungary Poland VWR International GmbH VWR International Kft. Graumanngasse 7 Simon László u. 4. VWR International Sp. z o.o. 1150 Vienna 4034 Debrecen Limbowa 5 Tel.: +43 1 97 002 0 Tel.: +36 (52) 521-130...
