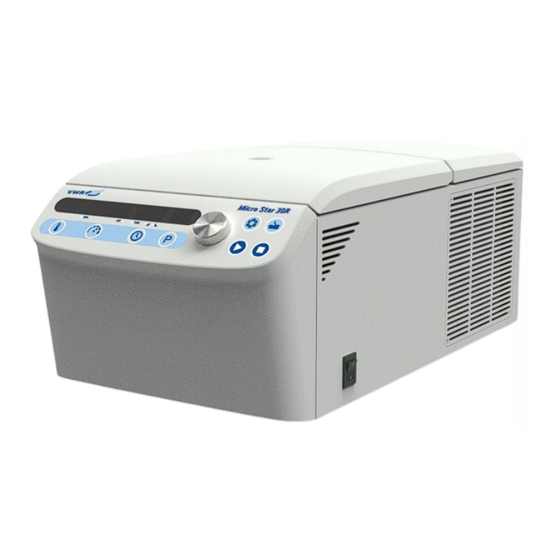

- Page 1 Instruction manual ® MICRO STAR 30R EU cat. no 521-2574 MICRO STAR 30R inclusive angle rotor RA 24/2 and aerosol tight rotor lid 521-2575 MICRO STAR 30R without rotor Version 03 Issue 11/2021...
-
Page 2: Preface
The settings are executed via a knob and the keys on the control panel. The centrifuge and its interior are easy to clean. We thank you for your confidence and we hope you enjoy your new centrifuge. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 3: Table Of Contents
8. TECHNICAL SERVICE ........................23 9. WARRANTY........................... 24 10. COMPLIANCE WITH LOCAL LAWS AND REGULATIONS ............. 24 11. EQUIPMENT DISPOSAL ......................24 LOCAL VWR OFFICES IN EUROPE AND ASIA PACIFIC .............. 25 vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 4: Safety Information
• Please clean your rotors regularly using a neutral cleaning liquid (e.g. Extran). This will protect the rotors and maintain their service life. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 5: Introduction
When lifting the centrifuge, never hold it by the front or top plastic part of the housing or by the lid, as the appliance may get damaged! Retain the packaging material for any subsequent transport or storage, which are allowed only in the original packaging. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 6: Installing The Centrifuge
2.5 OVERALL VIEW Main parts of the centrifuge are designated on the following pictures: Window Control panel Main switch vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 7: Operation
Indicator for selection of centrifugal force (RCF) SPEED key Display for time (TIME), acceleration level ( ) and braking level ( ) Indicator for selection of time (TIME) Indicator for selection of acceleration level ( ) vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 8: Knob And Key Functions
When the temperature is (FAST COOL) reached, display for rotational speed shows message READY, and the key light will then turn off. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 9: Turning On The Centrifuge
The values of operation parameters (temperature, rotational speed, centrifugal force, run time, acceleration and braking level) are automatically set to the last used values. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 10: Opening And Closing Of The Lid
The rotor and the rotor lid must always be securely fastened. Do not begin with centrifugation before the rotor has been securely fastened! vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 11: Imbalance Indicator
CORRECT CORRECT WRONG WRONG If an imbalance is detected at speeds higher than approx. 300 RPM, the centrifuge will automatically stop and an error message IMBAL OUR will be displayed. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 12: Pre-Selecting Temperature
Relative centrifugal force can be set from 5 to 31,150 xg in steps of 10 xg. Relative centrifugal force is calculated according to the radius of used rotor, so the minimum and maximum forces are dependent on the rotor type. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 13: Pre-Selecting Run Time, Acceleration And Braking Level
Example: The centrifuge started with time set to 10 minutes. It has been running for 3 minutes. Then you changed the time to 5 minutes. The centrifuge will run for another 2 minutes. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 14: Program Setting
Rotational Acceleration Temperature Run time Braking level Program speed level (°C) (min) (brX) (RPM) (AcX) 13,000 10,000 1,500 3,000 4,000 15,000 4,000 8,000 5,000 16,000 1,200 3,000 ⁞ 3,000 3,000 vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 15: Starting And Stopping The Centrifuge
9 (the highest), and they can't be changed. When you release the key, the braking procedure of the rotor is activated and the centrifuge stops. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 16: Fast Cool Function
By pressing the STOP key, you exit from error display and go back to stand-by mode. You can use the centrifuge again. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 17: Temperature Correction
Maintenance Recommended interval Clean rotor chamber Daily or when contaminated Clean rotor Daily or when contaminated Accessories Daily or when contaminated Cabinet Once per month Ventilation holes Every six months vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 18: Cleaning The Rotor
Before shipping the centrifuge, please bear the following in mind: The centrifuge must be clean and decontaminated. The decontamination must be confirmed with a decontamination certificate. Contact customer service for more details. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 19: Troubleshooting
Electronics error Service Check chamber Service-SP temperature sensor Chamber temperature sensor Check chamber Service error temperature sensor T CHA Electronics error Service Chamber temperature Check refrigerating system Service over 50 °C vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 20: Exit From Error Display
If error is still displayed, turn off the main switch of the centrifuge and turn it on again. If the centrifuge still doesn't return to stand-by mode, call service! vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 21: User's Parameters
Temperature compensation (display of sample temperature instead of chamber temperature). (dIS = disable, Enb = enable) Note: Values in SPEED column of the above table are factory default values of user's parameters. vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 22: Replacing The Centrifuge Fuses
75%, non-condensing Dimensions (W x D x H): 360 x 675 x 288 mm Weight: 50 kg We reserve the right to alter specification details without prior notice or liability! vwr.com I EN Instruction manual VWR ® MICRO STAR 30R... -
Page 23: Calculations
• Complete technical service contact information. • Access to VWR Online Catalogue, and information about accessories and related products. • Additional product information and special offers. Contact us For information or technical assistance contact your local VWR representative or visit www.vwr.com. -
Page 24: Warranty
VWR International warrants that this product will be free from defects in material and workmanship for a period of two (2) years from date of delivery. If a defect is present, VWR will, at its option and cost, repair, replace, or refund the purchase price of this product to the customer, provided it is returned during the warranty period. -
Page 25: Local Vwr Offices In Europe And Asia Pacific
Local VWR offices in Europe and Asia Pacific Austria Hungary Poland VWR International GmbH VWR International Kft. VWR International Sp. z o.o. Graumanngasse 7 Simon László u. 4. Limbowa 5 1150 Vienna 4034 Debrecen 80-175 Gdansk Tel.: +43 1 97 002 0 Tel.: +36 (52) 521-130...
