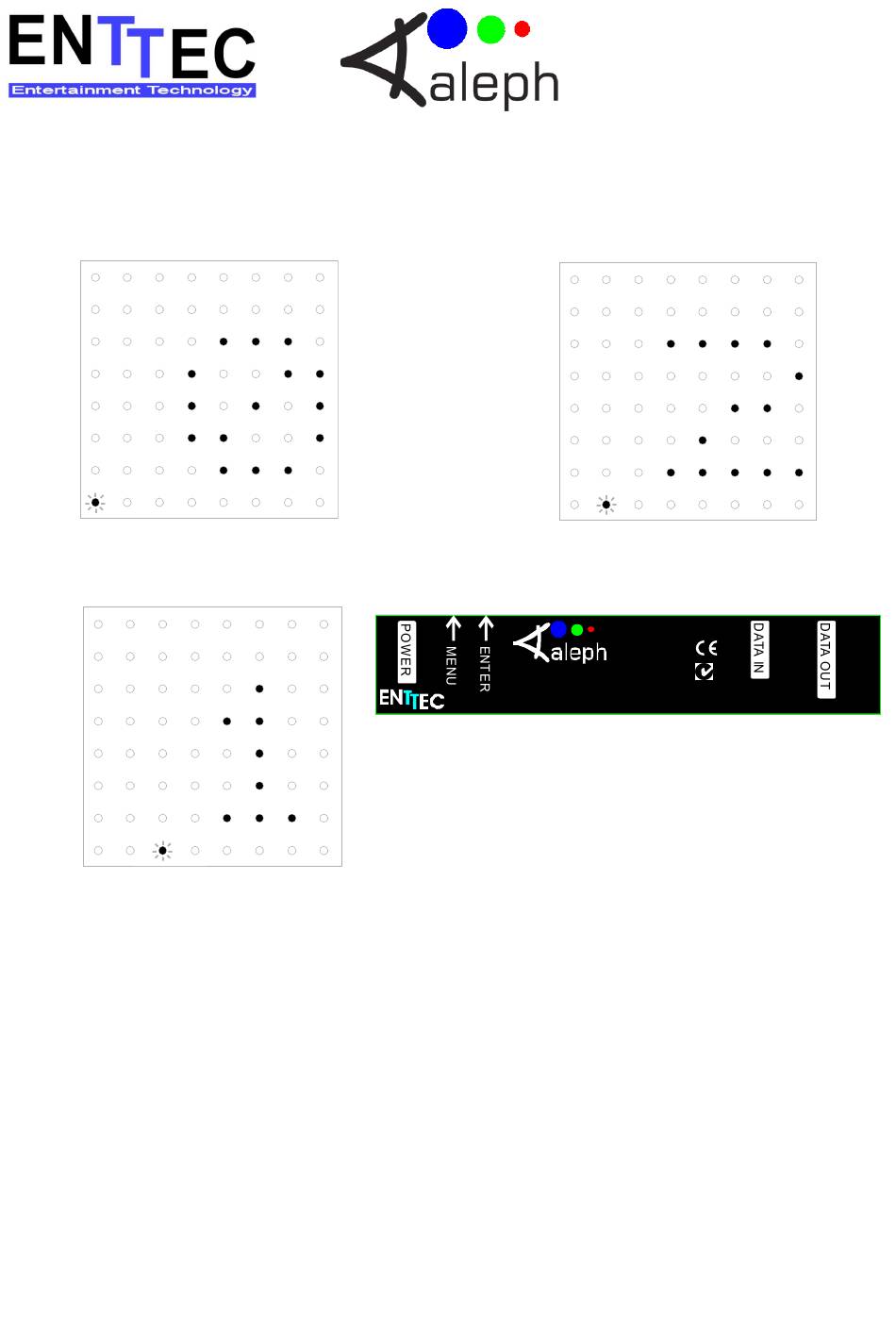

Enttec ALEPH MATRIX1 Quick Start page 2

Press MENU → 5 SECONDS to view
address (GREEN)
Hundreds
Units
Self-Test
To start self test, POWER CYCLE the unit, then press the ENTER button twice, the panel will
then execute it's self test sequences. This can be performed without DATA input. During this
time the panel will not respond to DATA IN signal but will still pass data through.
Press MENU key to scroll units
MATRIX1
www.enttec.com
Press ENTER to edit the current digit (changes to
red) and MENU to scroll the digit from 0 to F
following the MATRIX1 Handler software Address
grid. To save the new value press ENTER for 5
seconds (until colour changes to green).
To exit without saving, cycle power or press MENU
The Panel ID is used in the MATRIX1 handler
software; it is NOT the Art-Net universe or subnet.
Quick Start
Document PN: 50346
Tens
R ating:
100-250V A C
50/60Hz
16 Watts
D anger D o Not
Open. Liv e N29685
Voltages Inside
made in Australia
Back Label
rev A
