The indicated values consider static weights and evenly distributed over the parts.
Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces.
Freestanding / Agencement meuble TV
2.2
lb
2.2
lb
11
lb
help@manhattancomfort.com
Baxter 62.99
Model # 219BMC1, 219BMC12, 219BMC2, 219BMC21,
219BMC6, 219BMC8, 219BMC9, 219BMC94
888-230-2225
Ed. 006, 2020/10 - Manhattan Comfort.
Advertisement
Related Manuals for Manhattan Comfort Baxter 62.99
Summary of Contents for Manhattan Comfort Baxter 62.99

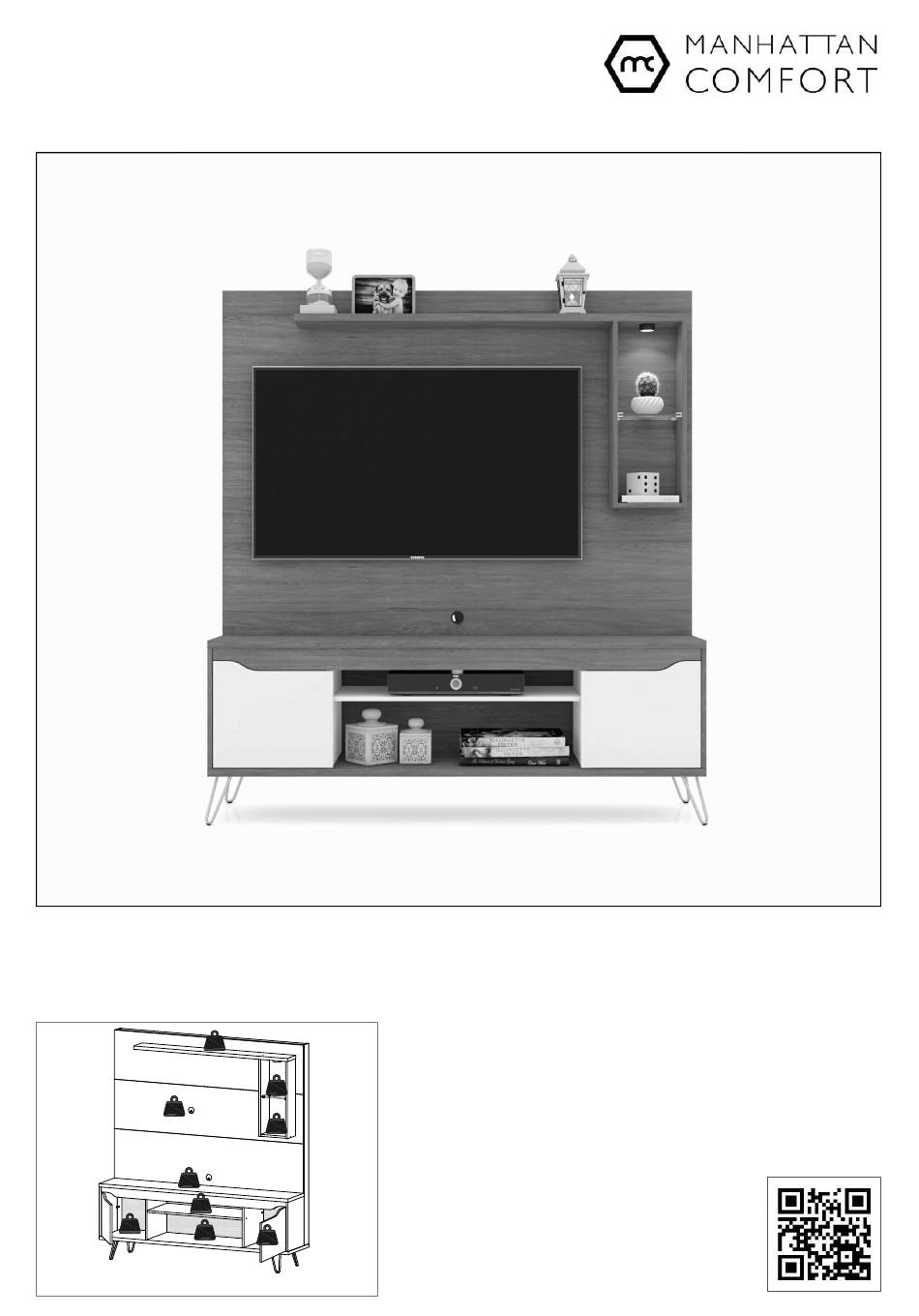

- Page 1 Model # 219BMC1, 219BMC12, 219BMC2, 219BMC21, 219BMC6, 219BMC8, 219BMC9, 219BMC94 The indicated values consider static weights and evenly distributed over the parts. Les valeurs indiquées tiennent compte des poids statiques et uniformément répartis sur les pièces. Ed. 006, 2020/10 - Manhattan Comfort.
- Page 2 INCLUDED IN THE PACKAGE / INCLUS DANS LE PACKAGE FRONT VIEW / VUE DE FACE REAR VIEW / VUE ARRIÈRE Hole for anti-tipping bracket / Trou pour support anti-basculement Holes to pass wires / Trou pour passer les fils n.° ID Parts Identification (Description) / Identification des pièces (Description) Quantity / Quantité...
- Page 3 TOOLS NEEDED / OUTILS NÉCESSAIRES Manual screwdriver. Simple hammer. Electric drill and electric screwdriver with Tournevis manuel. Marteau simple. drill bit Ø10mm and phillips tips. Perceuse électrique et tournevis électrique avec foret Ø10mm et pointes phillips. IMPORTANT! Two people are needed to assemble this product. It is recommended to fix the furniture to the wall with the anti-tipping bracket, to prevent accidental falls and damage.
- Page 4 STEP 1 / ÉTAPE 1 DETAIL 1 Preparing the Doors: DÉTAIL 1 • Fix the hinges (L) in the Doors (20) and (21) with bolts (M), as shown in the DETAIL 1. Préparation des Portes: • Fixez les charnières (L) aux Portes (20) et (21) avec des vis (M), comme indiqué...
- Page 5 STEP 4 / ÉTAPE 4 Preparing/fixing the Lower Panel (12) on the Middle Board (08): • Fix the Lower Panel (12) Rear face / on the Middle Board (08) Face arrière with dowels (A) and bolts (B). Préparation/fixation du Panneau inférieur (12) sur le Planche du milieu (08): •...
- Page 6 STEP 6 / ÉTAPE 6 • Fit the Front Frame (09) under the Middle Board (08) and between the Side Panels (05) and (06) and fix it in the Middle Board (08), the Side Panels (05) and (06) and the Partitions (01) and (02) with metal brackets (E) and bolts (H), as shown in the DETAIL 4.
- Page 7 STEP 7 / ÉTAPE 7 • Fix the Lower Rear Bar (10) on the Partitions (01) and (02) with bolts (B); and in the Rear Columns (07) with metal brackets (F) and bolts (H), as shown in the DETAIL 7. Fixez la Barre arrière inférieure (10) sur les Cloisons (01) et (02) avec des vis (B);...
- Page 8 STEP 8 / ÉTAPE 8 • Fix the Upper Shelf (16) in the Upper Panel (14) with dowels (A) and bolts (B). Fixez le Étagère supérieure (16) au Panneau supérieur (14) avec des chevilles (A) et des vis (B). Installing the Doors (20) and (21): •...
- Page 9 STEP 9 / ÉTAPE 9 Preparing the upper cubby: • Fix the metallic support for glass (K) in the Side Panels (17) and (18) with bolts (M). • Fix the Side Panels (17) and (18) in the Shelf (19) with dowels (A) and bolts (B).
- Page 10 STEP 11 / ÉTAPE 11 Fixing the furniture on the wall with the anti-tipping bracket (P)/ Fixation de l'armoire au mur avec le support anti-basculement (P): ATTENTION! Before to make the installation, check the conditions of the wall to anchor the furniture and the existence and position of hydraulic, electrical and gas pipes, avoiding damage to these structures when drilling the hole for applying the bushing (Q) and bolt (R) to fix the anti-tipping bracket (P).
