Aurora AU-DMX1500 Installation Instructions

GB
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR FUTURE REFERENCE

IMPORTANT INSTALLATION INFORMATION

• Installation should be carried out in accordance with the latest edition of the
National Wiring Regulations. If in doubt, consult a qualified electrician.
• The AU-DMX1500 is a sub controller unit that will accept a standard DMX signal
and convert it to an RGBW output at 12V or 24V dependent on the Constant
Voltage LED Driver used.
• AU-DMX1500 will control up to 150Watts of LED Strip/flex.
• DMX inputs with RJ45 sockets. For output, strip RJ45 and connect ORANGE to
D- and ORANGE/WHITE to D+ to AU-DMXRGBC. Discard remaining pairs.
• Ethernet RJ45 Cables (not supplied) are required to connect to a DMX system
controller and to connect to other AU-DMX1500 interface units.
• The controller operates at 12VDC or 24V DC. A DC Constant Voltage LED Driver
must be used (not included).
• Ensure that ALL electrical connections are tight with no loose strands, including
factory connections.
• Ensure that polarity and all connections are correct before energising the mains
supply.
INSTALLATION INSTRUCTIONS
Isolate from the mains supply before installation or maintenance.
1. Note: The LED driver required is dependent on the supply voltage for the LED
strip/flex, i.e. either 12V or 24V.
2. Connect a DC Constant Voltage Driver to the AU-DMX1500 12/24V input supply
terminals. Ensure that the polarity is correct.
3. Please also refer to the instructions provided with the DC Constant Voltage LED
Driver.
4. Connect from the main DMX control unit, i.e. AU-DMXRGBC to the AU-DMX1500
using an RJ45 Ethernet cable (see instructions for AU-DMXRGBC)
5. Connect from the AU-DMX1500 to the LED flex/strip, 12V/24V +ve, R G B W
connections; ensure that the polarity is correct. See instructions provided with
the strip/flex for connection details.
6. AU-DMX1500 can be connected together 'DMX OUT' to 'DMX IN' to give
synchronised control to multiple lengths of strip/flex.
7. The AU-DMX1500 is a sub controller only. The DMX functions, i.e. static colours
and colour change modes are dependent on DMX control system used.
8. Maximum number of units in a chain is 30.

DIP Switch table (DMX Address setting table):

DIP1
OFF 0
ON 1
DIP10 is used to select the output channels, ON is 4 channels RGBW, OFF is 3 channels RGB
Environmental Protection (W.E.E.E.) – Aurora's WEEE Reg.No. WEE/BG0130YX (UK only)
Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our
products showing this marking (left) must not be disposed of with other household or
commercial waste. Aurora does not levy any WEEE disposal charges to its customers for
affected WEEE related products. To prevent possible harm to the environment or human
health from uncontrolled waste disposal, please separate any such product from other waste
types and recycle it responsibly at your local facilities. Check with your Local Authority,
Recycling Centre or retailer for recycling advice. If, when you purchased any Aurora product, your supplier
included a WEEE disposal fee, you should then contact your supplier for advice on his takeback of the
product for the correct disposal.

GUARANTEE

This product is guaranteed in the country of purchase for a period of 1 year from the date of purchase.
The guarantee is invalid in the case of improper use, installation, tampering, removal of the Q.C. date label,
installation in an improper working environment or installation not according to the current edition of the
National Wiring Regulations. Should this product fail during the guarantee period it will be replaced free
of charge, subject to correct installation and return of the faulty unit. Aurora does not accept responsibility
for any installation costs associated with the replacement of this product. This warranty is in addition to
the statutory rights in your country of purchase. Aurora reserves the right to alter specifications without
prior notice.
Aurora Limited 16 Alban Park Hatfield Road St Albans Hertfordshire AL4 0JJ United Kingdom

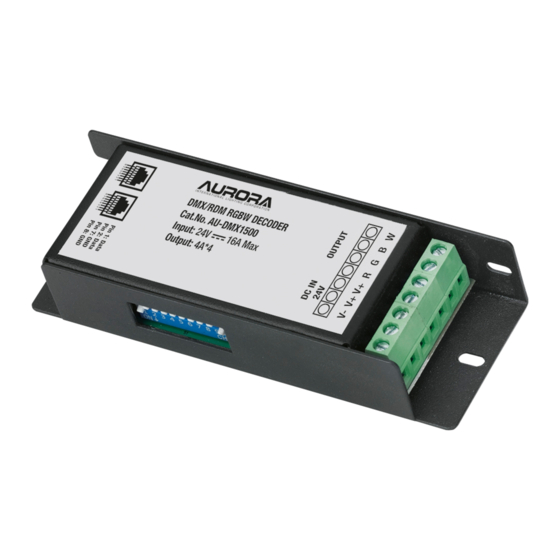

AU-DMX1500 DMX RGBW SUB CONTROLLER
DIP2 DIP3 DIP4
0 0
2 4
Website: www.aurora.co
Document version - AU-DMX1500_V1_17
DIP5 DIP6
0 0 0
8 16 32
DIP7 DIP8 DIP9
0 0 0
64 128 256
DIP10
3CH
4CH
