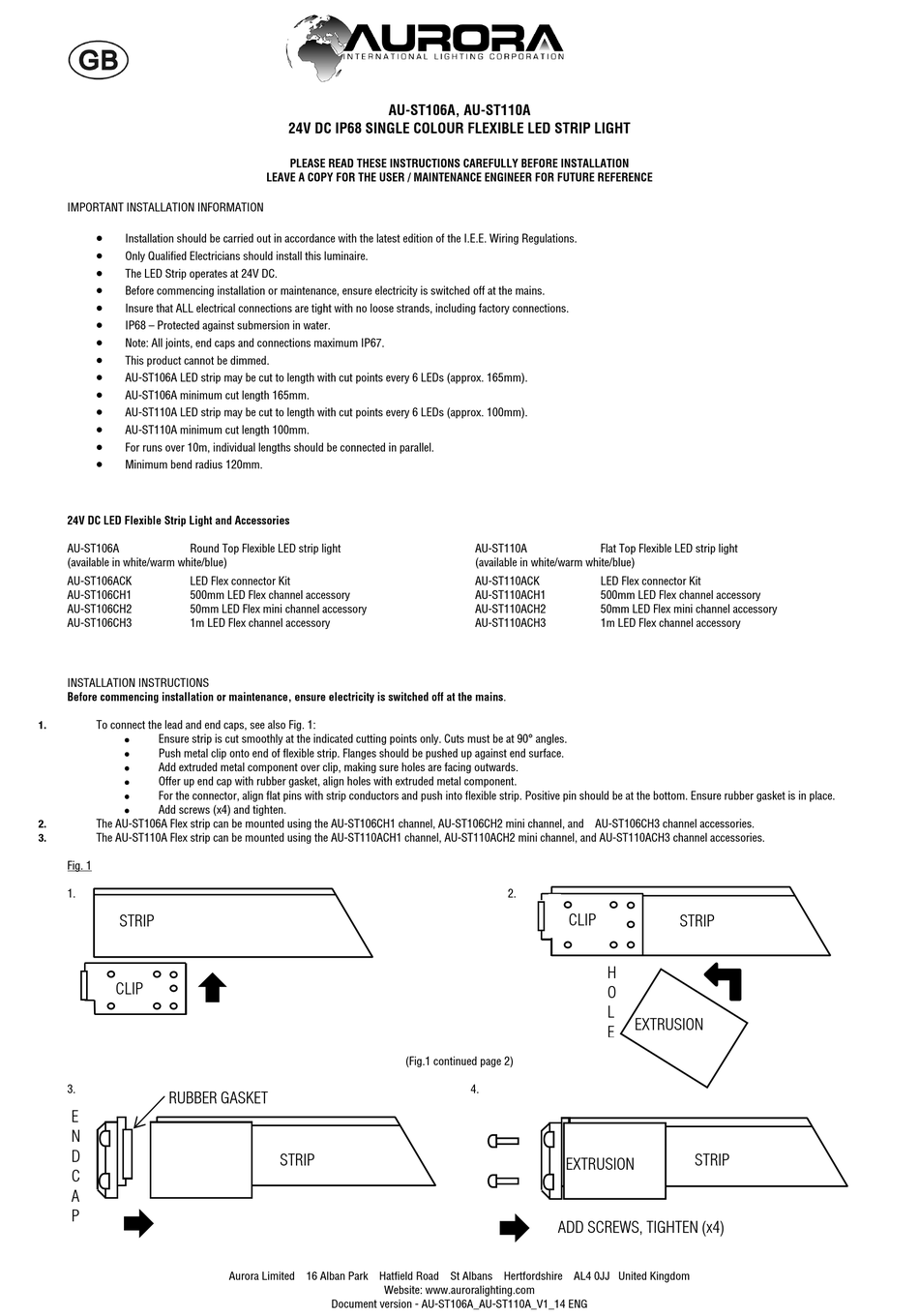

Aurora AU-ST106A Series Manual

IMPORTANT INSTALLATION INFORMATION


Installation should be carried out in accordance with the latest edition of the I.E.E. Wiring Regulations.

Only Qualified Electricians should install this luminaire.

The LED Strip operates at 24V DC.

Before commencing installation or maintenance, ensure electricity is switched off at the mains.

Insure that ALL electrical connections are tight with no loose strands, including factory connections.

IP68 – Protected against submersion in water.

Note: All joints, end caps and connections maximum IP67.

This product cannot be dimmed.

AU-ST106A LED strip may be cut to length with cut points every 6 LEDs (approx. 165mm).

AU-ST106A minimum cut length 165mm.

AU-ST110A LED strip may be cut to length with cut points every 6 LEDs (approx. 100mm).

AU-ST110A minimum cut length 100mm.

For runs over 10m, individual lengths should be connected in parallel.

Minimum bend radius 120mm.
24V DC LED Flexible Strip Light and Accessories
AU-ST106A Round Top Flexible LED strip light
(available in white/warm white/blue)
AU-ST106ACK LED Flex connector Kit
AU-ST106CH1 500mm LED Flex channel accessory
AU-ST106CH2 50mm LED Flex mini channel accessory
AU-ST106CH3 1m LED Flex channel accessory

INSTALLATION INSTRUCTIONS

Before commencing installation or maintenance, ensure electricity is switched off at the mains.
1. To connect the lead and end caps, see also Fig. 1:

Ensure strip is cut smoothly at the indicated cutting points only. Cuts must be at 90° angles.

Push metal clip onto end of flexible strip. Flanges should be pushed up against end surface.

Add extruded metal component over clip, making sure holes are facing outwards.

Offer up end cap with rubber gasket, align holes with extruded metal component.

For the connector, align flat pins with strip conductors and push into flexible strip. Positive pin should be at the bottom. Ensure rubber gasket is in place.

Add screws (x4) and tighten.
2. The AU-ST106A Flex strip can be mounted using the AU-ST106CH1 channel, AU-ST106CH2 mini channel, and AU-ST106CH3 channel accessories.
The AU-ST110A Flex strip can be mounted using the AU-ST110ACH1 channel, AU-ST110ACH2 mini channel, and AU-ST110ACH3 channel accessories.
3.
Fig. 1
1.
STRIP
CLIP
3.
RUBBER GASKET
E
N
D
EXTRUSION
C
A
P
AU-ST106A, AU-ST110A
24V DC IP68 SINGLE COLOUR FLEXIBLE LED STRIP LIGHT
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR FUTURE REFERENCE
STRIP
Aurora Limited 16 Alban Park Hatfield Road St Albans Hertfordshire AL4 0JJ United Kingdom
Website: www.auroralighting.com
Document version - AU-ST106A_AU-ST110A_V1_14 ENG
AU-ST110A
(available in white/warm white/blue)
AU-ST110ACK
AU-ST110ACH1
AU-ST110ACH2
AU-ST110ACH3
2.
CLIP
(Fig.1 continued page 2)
4.
EXTRUSION
ADD SCREWS, TIGHTEN (x4)
Flat Top Flexible LED strip light
LED Flex connector Kit
500mm LED Flex channel accessory
50mm LED Flex mini channel accessory
1m LED Flex channel accessory
STRIP
H
O
L
EXTRUSION
E
STRIP
