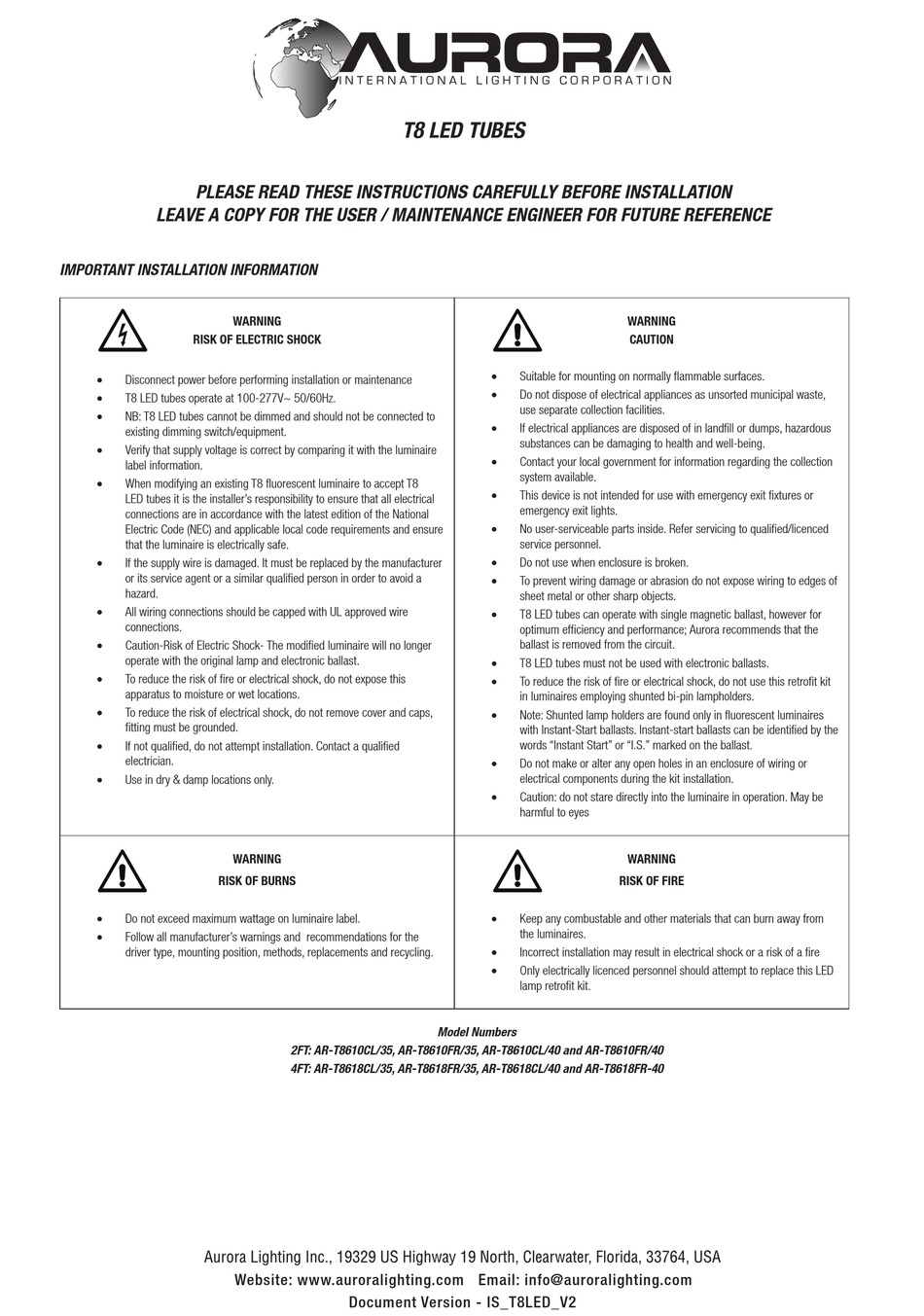

PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR FUTURE REFERENCE

IMPORTANT INSTALLATION INFORMATION

WARNING
RISK OF ELECTRIC SHOCK

Disconnect power before performing installation or maintenance

T8 LED tubes operate at 100-277V~ 50/60Hz.

NB: T8 LED tubes cannot be dimmed and should not be connected to
existing dimming switch/equipment.

Verify that supply voltage is correct by comparing it with the luminaire
label information.

When modifying an existing T8 fl uorescent luminaire to accept T8
LED tubes it is the installer's responsibility to ensure that all electrical
connections are in accordance with the latest edition of the National
Electric Code (NEC) and applicable local code requirements and ensure
that the luminaire is electrically safe.

If the supply wire is damaged. It must be replaced by the manufacturer
or its service agent or a similar qualifi ed person in order to avoid a
hazard.

All wiring connections should be capped with UL approved wire
connections.

Caution-Risk of Electric Shock- The modifi ed luminaire will no longer
operate with the original lamp and electronic ballast.

To reduce the risk of fi re or electrical shock, do not expose this
apparatus to moisture or wet locations.

To reduce the risk of electrical shock, do not remove cover and caps,
fi tting must be grounded.

If not qualifi ed, do not attempt installation. Contact a qualifi ed
electrician.

Use in dry & damp locations only.
WARNING
RISK OF BURNS

Do not exceed maximum wattage on luminaire label.

Follow all manufacturer's warnings and recommendations for the
driver type, mounting position, methods, replacements and recycling.

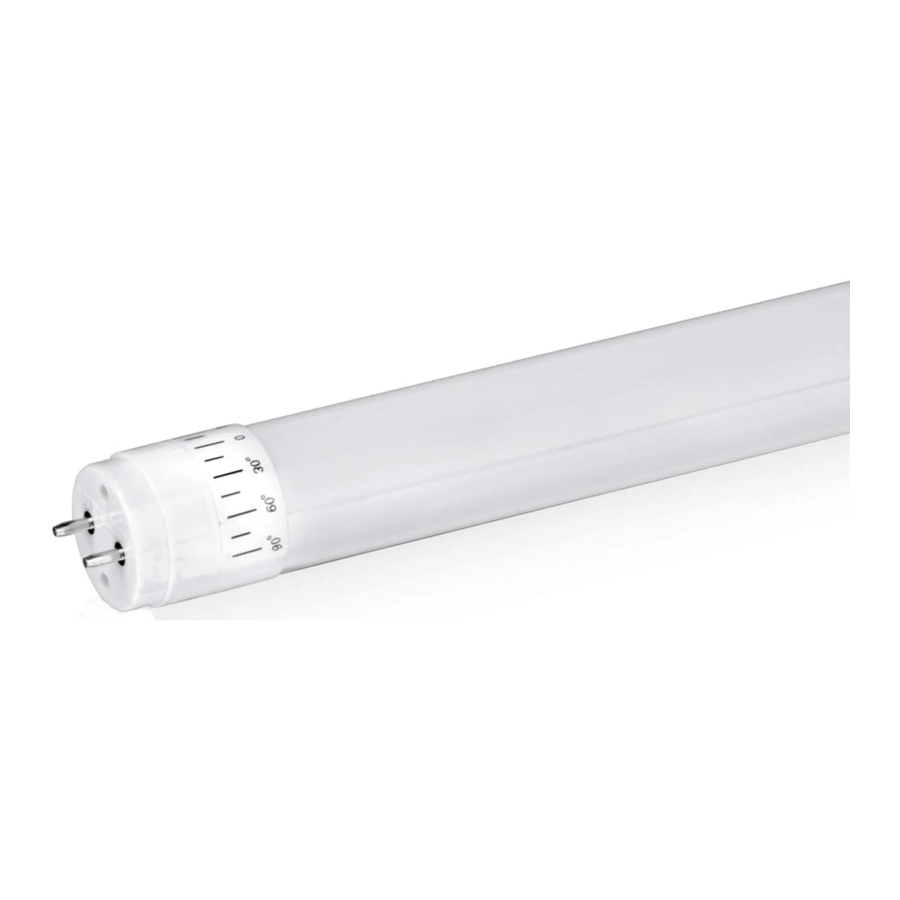

T8 LED TUBES
2FT: AR-T8610CL/35, AR-T8610FR/35, AR-T8610CL/40 and AR-T8610FR/40
4FT: AR-T8618CL/35, AR-T8618FR/35, AR-T8618CL/40 and AR-T8618FR-40
Website: www.auroralighting.com Email: info@auroralighting.com
Document Version - IS_T8LED_V2

Suitable for mounting on normally fl ammable surfaces.

Do not dispose of electrical appliances as unsorted municipal waste,
use separate collection facilities.

If electrical appliances are disposed of in landfi ll or dumps, hazardous
substances can be damaging to health and well-being.

Contact your local government for information regarding the collection
system available.

This device is not intended for use with emergency exit fi xtures or
emergency exit lights.

No user-serviceable parts inside. Refer servicing to qualifi ed/licenced
service personnel.

Do not use when enclosure is broken.

To prevent wiring damage or abrasion do not expose wiring to edges of
sheet metal or other sharp objects.

T8 LED tubes can operate with single magnetic ballast, however for
optimum effi ciency and performance; Aurora recommends that the
ballast is removed from the circuit.

T8 LED tubes must not be used with electronic ballasts.

To reduce the risk of fi re or electrical shock, do not use this retrofi t kit
in luminaires employing shunted bi-pin lampholders.

Note: Shunted lamp holders are found only in fl uorescent luminaires
with Instant-Start ballasts. Instant-start ballasts can be identifi ed by the
words "Instant Start" or "I.S." marked on the ballast.

Do not make or alter any open holes in an enclosure of wiring or
electrical components during the kit installation.

Caution: do not stare directly into the luminaire in operation. May be
harmful to eyes

Keep any combustable and other materials that can burn away from
the luminaires.

Incorrect installation may result in electrical shock or a risk of a fi re

Only electrically licenced personnel should attempt to replace this LED
lamp retrofi t kit.
Model Numbers
WARNING
CAUTION
WARNING
RISK OF FIRE
