Aurora AU-LED0635CC Instructions

LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR FUTURE REFERENCE

IMPORTANT INSTALLATION INFORMATION

Installation should be carried out in accordance with the latest edition of the National Wiring Regulations. If in doubt consult a qualified electrician.
For use with Aurora constant current LED products.
IMPORTANT Constant current LED Fittings MUST be wired in SERIES ensuring correct polarity. Failure to do so can cause permanent luminaire and/or
driver failure.
Insure that ALL electrical connections are tight with no loose strands.
Use the table below to assist with calculating how many LED fittings may be used with the constant current LED Driver. Simply multiply the number of
fittings by their respective wattage up to the MAXIMUM rating of the Driver. It is possible to combine different constant current fittings.
LED Driver Cat.No. Dimmable
AU-LED0635CC No
AU-LED09T No
AU-LED09IP No
AU-LEDD16CC Yes
AU-LEDD3510 Yes
AU-LEDD3516 Yes

INSTALLATION INSTRUCTIONS

Isolate from the mains supply before installation or maintenance.
1. The 350mA Constant Current Drivers feature loop-in and loop-out primary wiring terminals.
Black/Blue – Neutral
2. Constant Current LED's must be wired in series ensuring correct polarity, see Figure 2. Failure to do so may result in permanent damage to the lamp or
driver
3. The AU-LEDD16CC dimmable when used with AU-DSPLED 1-10V Dimmer Switch. For use with 350mA 1W LED's. See Figure 3.
4. The AU-LEDD3516 and AU-LEDD3510 are dimmable when used with AU-DSP mains voltage dimmers, de-rate by 50%
5. The AU-LED09IP is IP68 rated to maximum 2m, use a suitable IP68 rated junction box for connection.

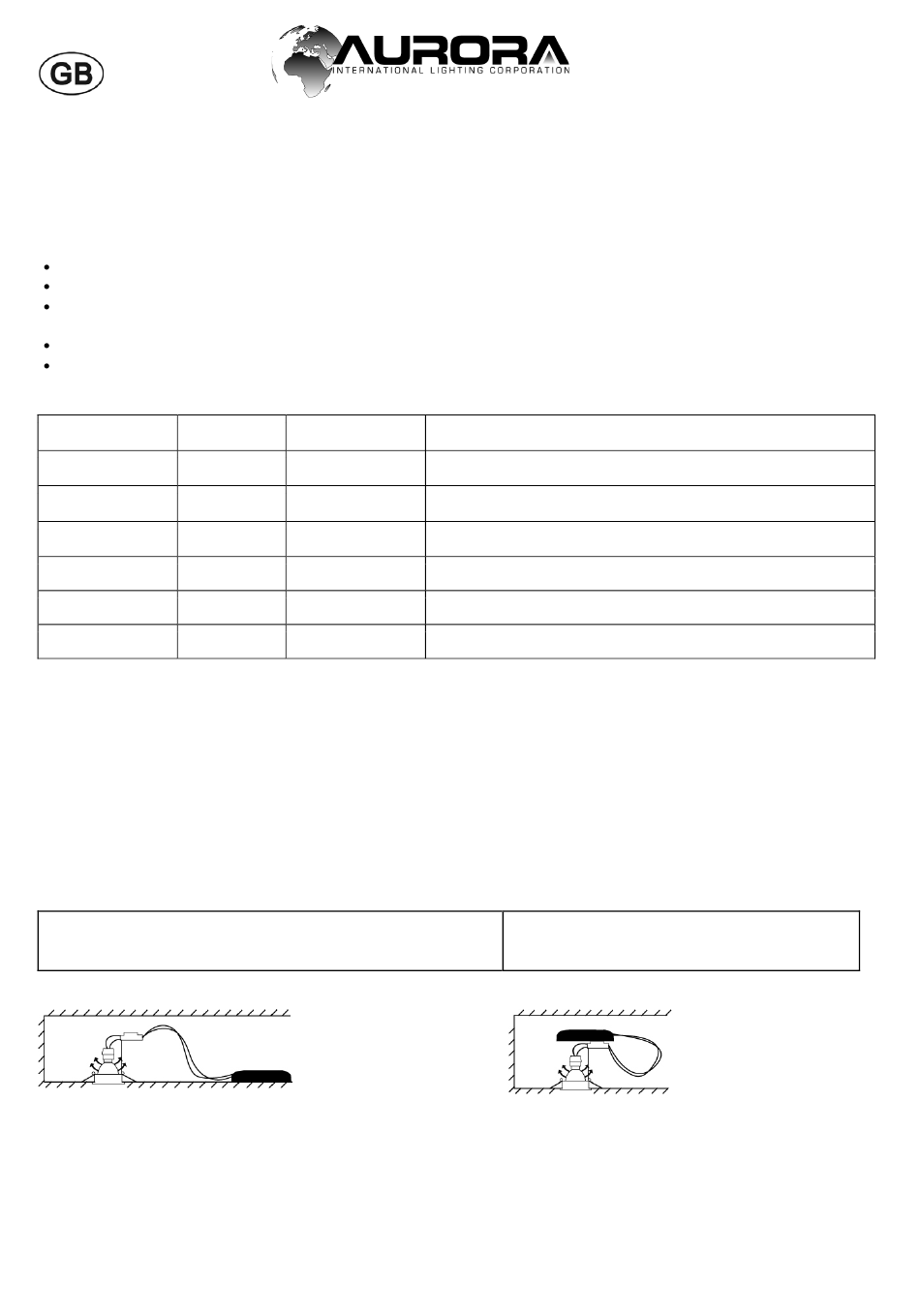

Fig.1
CORRECT Installation
Keep the LED Driver away from direct sources of heat such as Low
Voltage lamps
Aurora Limited 16 Alban Park Hatfield Road St Albans Hertfordshire AL4 0JJ United Kingdom
LOW VOLTAGE 350mA CONSTANT CURRENT LED DRIVERS
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
Wattage of LED's
1-6
1-9
1-9
1-18 (2x9)
1-10
10-16
Red/Brown – Live Green & Yellow – Earth.
Website: www.auroralighting.com
Document version – AU-LED_350CC_KY_V1_14_ENG&FRE
Notes
IP68 rated
1-10V dimming, AU-DSPLED
240V dimming, AU-DSP251
240V dimming, AU-DSP251
INCORRECT Installation
Do not fit the LED Driver above the luminaire
