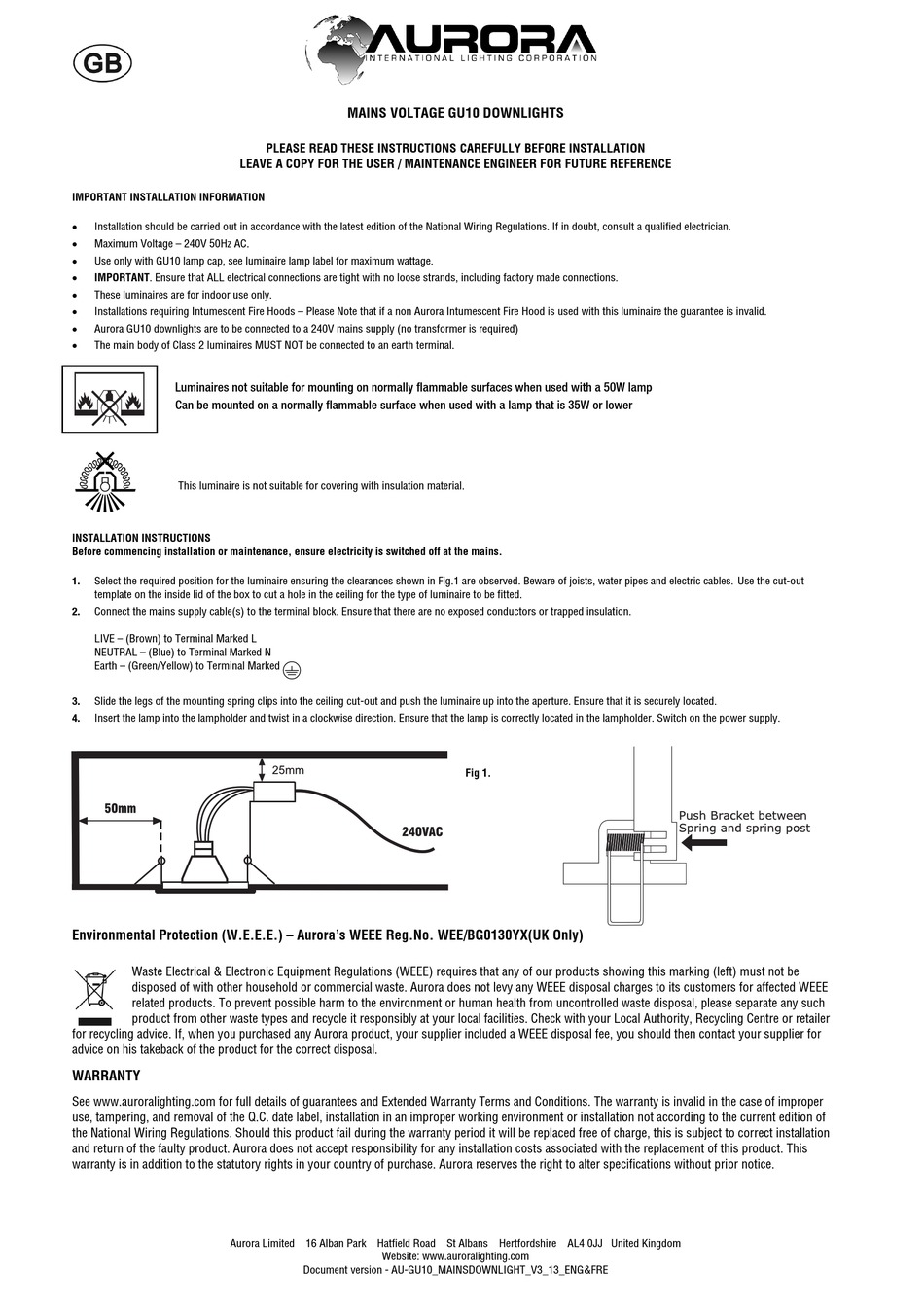

Aurora GU10 Installation Instructions

LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR FUTURE REFERENCE

IMPORTANT INSTALLATION INFORMATION


Installation should be carried out in accordance with the latest edition of the National Wiring Regulations. If in doubt, consult a qualified electrician.

Maximum Voltage – 240V 50Hz AC.

Use only with GU10 lamp cap, see luminaire lamp label for maximum wattage.

IMPORTANT. Ensure that ALL electrical connections are tight with no loose strands, including factory made connections.

These luminaires are for indoor use only.

Installations requiring Intumescent Fire Hoods – Please Note that if a non Aurora Intumescent Fire Hood is used with this luminaire the guarantee is invalid.

Aurora GU10 downlights are to be connected to a 240V mains supply (no transformer is required)

The main body of Class 2 luminaires MUST NOT be connected to an earth terminal.
Luminaires not suitable for mounting on normally flammable surfaces when used with a 50W lamp
Can be mounted on a normally flammable surface when used with a lamp that is 35W or lower
This luminaire is not suitable for covering with insulation material.
INSTALLATION INSTRUCTIONS
Before commencing installation or maintenance, ensure electricity is switched off at the mains.
Select the required position for the luminaire ensuring the clearances shown in Fig.1 are observed. Beware of joists, water pipes and electric cables. Use the cut-out
1.
template on the inside lid of the box to cut a hole in the ceiling for the type of luminaire to be fitted.
2. Connect the mains supply cable(s) to the terminal block. Ensure that there are no exposed conductors or trapped insulation.
LIVE – (Brown) to Terminal Marked L
NEUTRAL – (Blue) to Terminal Marked N
Earth – (Green/Yellow) to Terminal Marked
Slide the legs of the mounting spring clips into the ceiling cut-out and push the luminaire up into the aperture. Ensure that it is securely located.
3.
Insert the lamp into the lampholder and twist in a clockwise direction. Ensure that the lamp is correctly located in the lampholder. Switch on the power supply.
4.
Environmental Protection (W.E.E.E.) – Aurora's WEEE Reg.No. WEE/BG0130YX(UK Only)
Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing this marking (left) must not be
disposed of with other household or commercial waste. Aurora does not levy any WEEE disposal charges to its customers for affected WEEE
related products. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate any such
product from other waste types and recycle it responsibly at your local facilities. Check with your Local Authority, Recycling Centre or retailer
for recycling advice. If, when you purchased any Aurora product, your supplier included a WEEE disposal fee, you should then contact your supplier for
advice on his takeback of the product for the correct disposal.

WARRANTY

See www.auroralighting.com for full details of guarantees and Extended Warranty Terms and Conditions. The warranty is invalid in the case of improper
use, tampering, and removal of the Q.C. date label, installation in an improper working environment or installation not according to the current edition of
the National Wiring Regulations. Should this product fail during the warranty period it will be replaced free of charge, this is subject to correct installation
and return of the faulty product. Aurora does not accept responsibility for any installation costs associated with the replacement of this product. This
warranty is in addition to the statutory rights in your country of purchase. Aurora reserves the right to alter specifications without prior notice.
Aurora Limited 16 Alban Park Hatfield Road St Albans Hertfordshire AL4 0JJ United Kingdom
MAINS VOLTAGE GU10 DOWNLIGHTS
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
e
Website: www.auroralighting.com
Document version - AU-GU10_MAINSDOWNLIGHT_V3_13_ENG&FRE
Fig 1.
