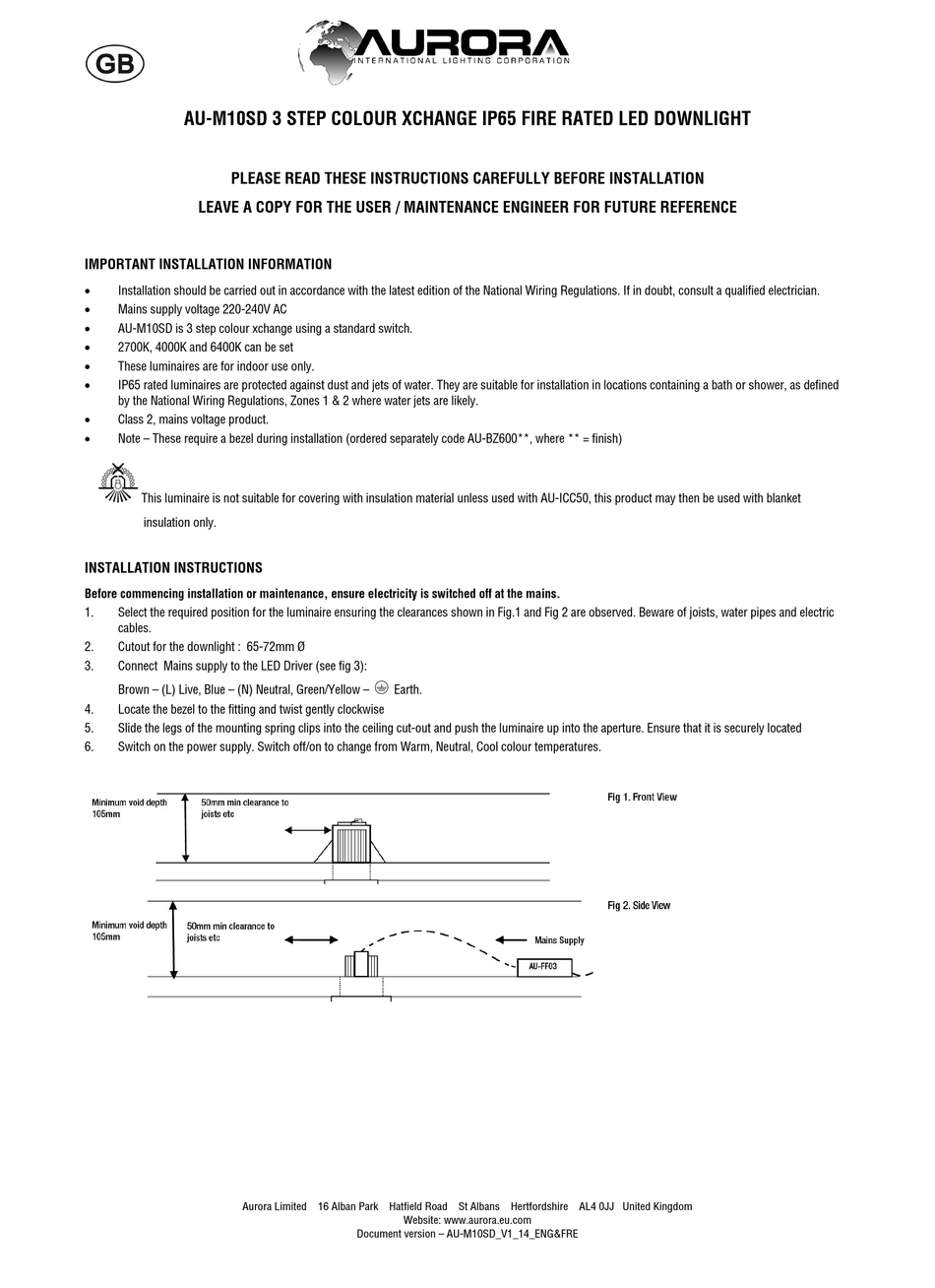

AU-M10SD 3 STEP COLOUR XCHANGE IP65 FIRE RATED LED DOWNLIGHT
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION
LEAVE A COPY FOR THE USER / MAINTENANCE ENGINEER FOR FUTURE REFERENCE
IMPORTANT INSTALLATION INFORMATION
Installation should be carried out in accordance with the latest edition of the National Wiring Regulations. If in doubt, consult a qualified electrician.
Mains supply voltage 220-240V AC
AU-M10SD is 3 step colour xchange using a standard switch.
2700K, 4000K and 6400K can be set
These luminaires are for indoor use only.
IP65 rated luminaires are protected against dust and jets of water. They are suitable for installation in locations containing a bath or shower, as defined
by the National Wiring Regulations, Zones 1 & 2 where water jets are likely.
Class 2, mains voltage product.
Note – These require a bezel during installation (ordered separately code AU-BZ600**, where ** = finish)
i
This luminaire is not suitable for covering with insulation material unless used with AU-ICC50, this product may then be used with blanket
insulation only.
INSTALLATION INSTRUCTIONS
Before commencing installation or maintenance, ensure electricity is switched off at the mains.
1.
Select the required position for the luminaire ensuring the clearances shown in Fig.1 and Fig 2 are observed. Beware of joists, water pipes and electric
cables.
2.
Cutout for the downlight : 65-72mm Ø
3.
Connect Mains supply to the LED Driver (see fig 3):
Brown – (L) Live, Blue – (N) Neutral, Green/Yellow –
4.
Locate the bezel to the fitting and twist gently clockwise
5.
Slide the legs of the mounting spring clips into the ceiling cut-out and push the luminaire up into the aperture. Ensure that it is securely located
6.
Switch on the power supply. Switch off/on to change from Warm, Neutral, Cool colour temperatures.
Aurora Limited 16 Alban Park Hatfield Road St Albans Hertfordshire AL4 0JJ United Kingdom
e
Earth.
Website: www.aurora.eu.com
Document version – AU-M10SD_V1_14_ENG&FRE
