D) Install the adapter
•
[Fig. 48]. Install two protective walls (3). Use new ones
if necessary. Install two parings of adapter (2) and
tighten screws (1); use 5Nm [44lbf*in].
E) Install the arc chute
•
[Fig. 49]. Put in arc chute (1) into adapter (2).
•
[Fig. 49]. Tighten front- and backside connections of
the arc arc runners (3), including lock washer; use
10Nm [88lbf*in].
•
[Fig. 49]. Tighten front- and backside of the arc chute
connections (4), including flat washers; use 5Nm
[44lbf*in].
3
1
2

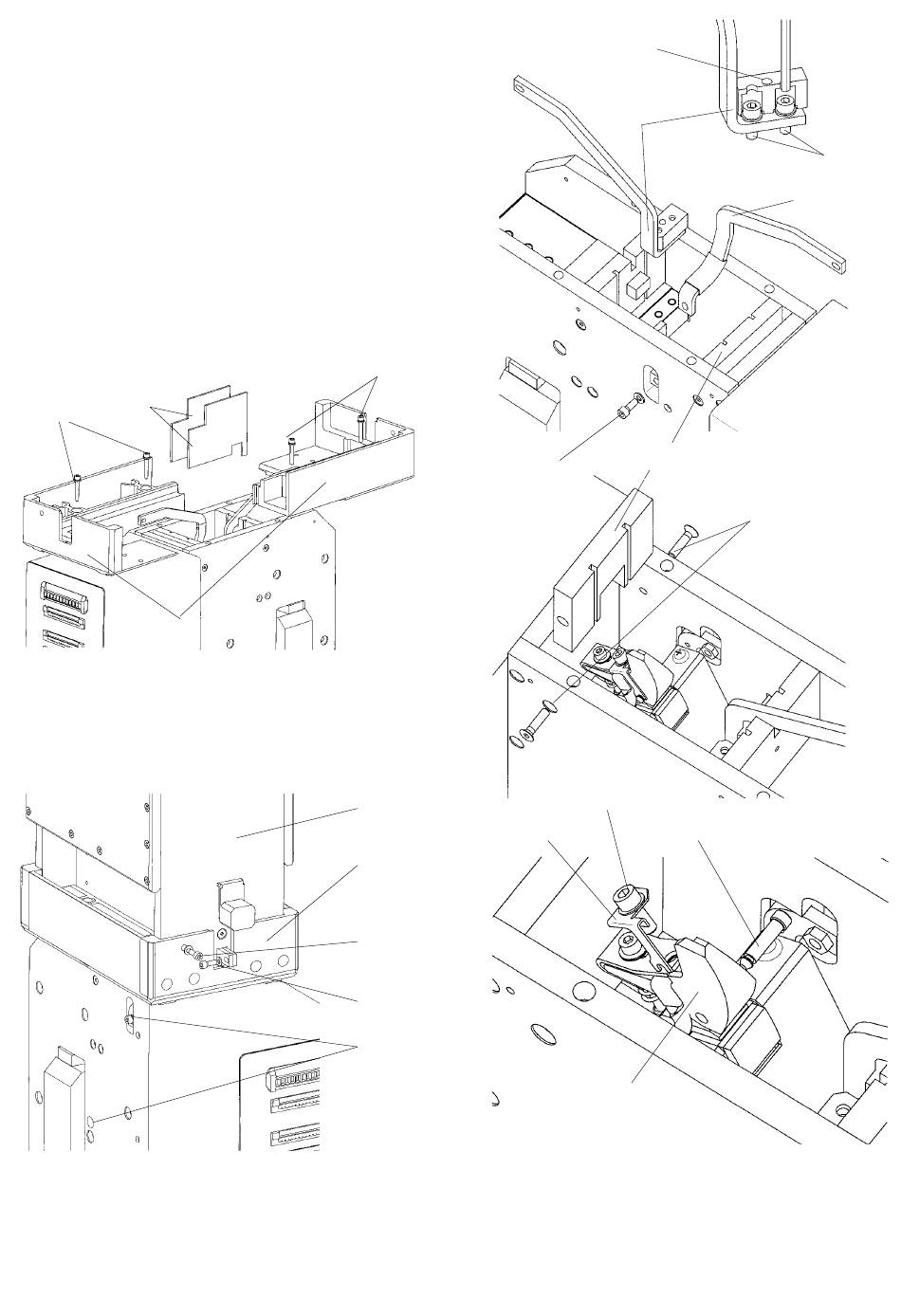

Fig. 48 Adapter and protective walls
Fig. 49 Arc chute and arc runners fixing
S47183-e 01/2008
1
2
4
3
5
Design and specifications are subject to change without notice
4b
4
6
5a
7
8
10
Fig. 50 Changing pre-arcing contact.
4a
5
6a
9
