4.3 Electrical diagrams.

4.3.1 Wiring coding system.

The main circuits are not shown in the wiring diagrams
due to clarity. The control circuit is presented as a typical
circuit diagram and is a combination of numbered basic
diagrams for drives, trips and indicators.
Using the key numbers of the basic plan, you can derive
the number of the complete diagram.
Key position:
Breaker type
Aux. voltage supply
ED tripping device
Closing drive
Aux. tripping device
Indicators
Aux. switches
SEL system
EXAMPLE:
36 / 1
Key number:
Gerapid
With voltage converter
With ED coil and NEKO
With closing drive
Wtih shunt trip
With OCT indicator
With 5 aux. switches
With SEL system

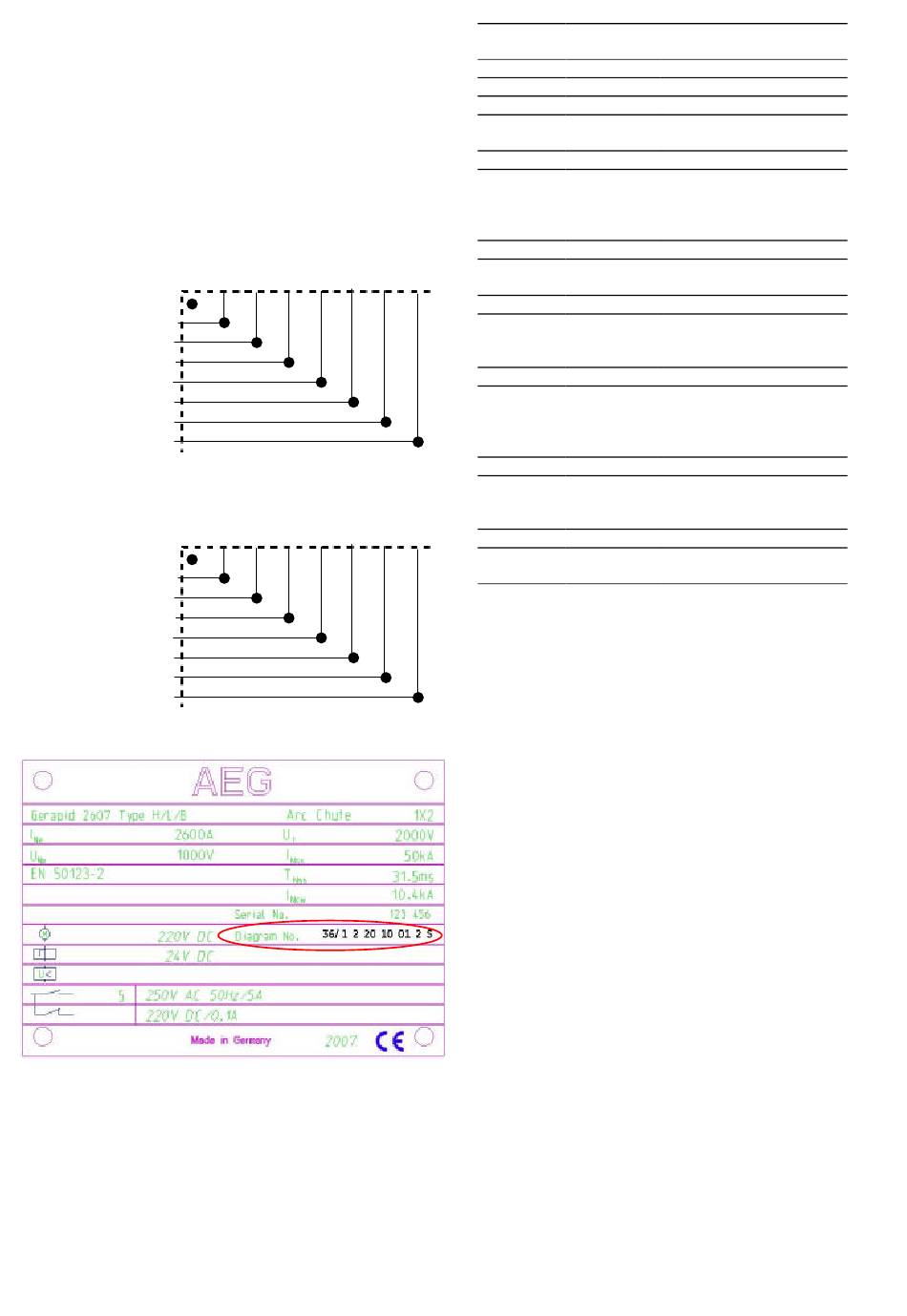

Fig. 22 Example of wiring code for AEG type labels.
16
1 / 2 3 4 5 6
2 20 10 01
Design and specifications are subject to change without notice
Key
position
Type
1
Auxiliary voltage
2
Tripping coil
3
Drive
7 8 4
Tripping device
5
Indication device
6
Auxiliary contacts
7
2 S
Current-measurement system
8
Indication of components
Q1 Circuit breaker
S1 Push button „CLOSE"
S2 Push button „OPEN""
SU control unit:
K1 Closing relay
K2 Internal emergency STOP relay
Shunt trip, zero voltage release:
K1 Internal emergency STOP relay
HS11 Auxiliary contact
ED-tripping device with internal NEKO unit:
K1 Voltage monitoring relay
1) These relays are part of internal emergency STOP circuit. It
is a 24VDC closed circuit, through all the control units in the
box. Serial connection of all emergency relays is realized
through connections ( :5/:6) in every PCB's terminal. In case
of control voltage lost or unit's damage, circuit is locking
possibility to switch ON the breaker.
Key Designation
number
36 Gerapid
1 Voltage converter
2 DC 24V external supply
0 Without ed-trip coil
1 With ed-trip coil
2 With ed-trip coil and NEKO
control unit
20 Solenoid drive with
SU control unit
00 Without trip unit
10 With shunt trip
20 With zero voltage release
00 Without indicators
01 OCT indicator
02 Arc chute indicator
03 OCT + arc chute indicator
1 3 auxiliary switches
2 5 auxiliary switches
3 10 auxiliary switches
S with SEL
1)
1)
