7. Customer support.

7.1 PST coding system.

•
The PST coding system is a new way
• to configure Gerapid according to customer needs. It
has been released in 2008 and it's not related with
any previous ordering forms.
•
This code consists of 20 digits. Every digit means cer-
tain rated value or component that might be installed
in the breaker.
• Table 7 shows all available values, components and
accessories for the Gerapid breaker family. Most of
them are describe in section 3 of this manual. Please
contact GE Sales representative in case of any ques-
tions.
•
This system is valid for Gerapid line feeder type (F),
rectifier type (R) and disconnector type (DS). However
this instruction relates only to standard, line feeder
type.
•
Not all of the configurations are possible to order. Us-
ing the electronic version of the Ordering Form, avoid
a wrong configuration selection.
•
This Excel ® based tool enable in fast and mistake
proof manner to generate PST code and Ordering
Form. Ask your GE Representative details. The number
of this tool is: APN460437.
48
Table 7.
Breaker Type (Code 1)
1 2607
2 4207
3 6007
4 8007
Arc Chute (Code 2)
1 1X2 (1000V)
2 1X3 (1500V)
3 1X4 (2000V)
Drive Supply Voltage (Code 3)
1 48 V DC
2 60 V DC
3 110 V DC
4 125 V DC
Connectors (Code 4)
1 H/H
2 H/V
3 V/H
Polarization (Code 5)
1 '+'
SEL Type (Code 6)
1 35C
2 55C
Overcurrent Trip (Code 7)
1 Fixed 1-12 kA
2 Adjust.1-12 kA
3 Fixed 12-24 kA
4 Adjust.12-24kA
Voltage Converter (Code 8)
1 24V DC±5% ext.
2 24/24 VDC
3 35..85V DC
Auxilliary Switch (Code 9)
1 3 Aux. Contacts
2 5 Aux. Contacts
Design and specifications are subject to change without notice
1 2 3 4 5 6
5 8007R
6 10007R
7 8007DS
4 2X2 (2000V) S 2X2S (2000V)
5 2X3 (3000V) E
EF4/12
6 2X4 (3600V) (4000V)
5 220 V DC 9 125 V AC
6 250 V DC A 230 V AC
7 110 V AC B 240 V AC
8 120 V AC R On Request
4 V/V B BBRail
5 SEL 6kA S Siemens
6 SEL 12kA R On Request
2 '-' 0 Not important
0 No SEL
5 Polarized adjust. 0,4-1,2 kA 0 W/O Trip
6 Polarized adjust. 0,8-2,5 kA
7 Polarized adjust. 2,0-6,0 kA
8 Polarized adjust. 4,0-8,0 kA
4 88..143V DC
5 125..353 V DC 115..240V AC
R On Request
3 9 Aux. Contacts R Other quantity
4 10 Aux. Contacts
S47183-e 01/2008

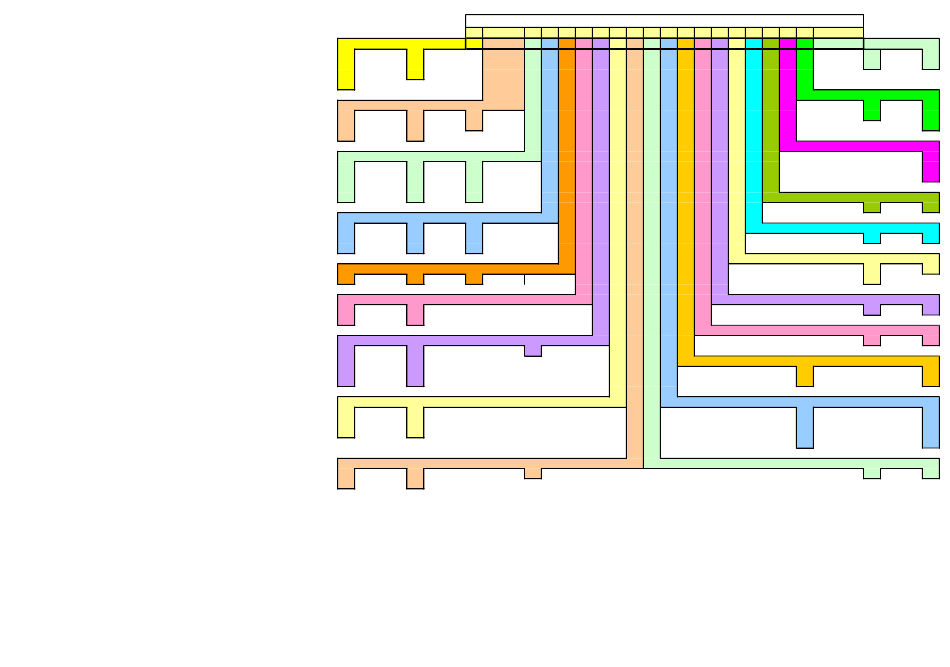

PST code positions
7 8 9 10 11 12 13 14 15 16 17 18 19
With ED-Coil and internal C-bank (NEKO)
With ED-Coil and 3C-bank (BBRail only)
Shunt Trip 125V DC
Shunt Trip 220V DC
Undervoltage Release 24 V DC
On Request
20
Delivery Version (Code 20)
China 3 Standard 1
On Request R US 2
Control Terminal Type (Code 19)
32pole Harting 3 Standard 1
108 pole Harting 4 DAD Connector 2
On Request R
Counter (code 18)
Without 0
With Mechanical Counter 1
With Electronic Counter & Battery 2
Arc Chute Indicator (Code17)
With 1 Without 0
Hand Lever (Code 16)
With 1 Without 0
Sidewall Protection (Code 15)
With 1 Without 0
AP Cover 2
Position Indicator (Code 14)
With 1 Without 0
Force Tripping Unit (Code 13)
With 1 Without 0
ED Coil (Code12)
2 Without 0
3 With ED-Coil and external C-Bank 1
Auxiliary Tripping Unit(Code 11)
4 Without 0
5 ST with external 24VDC supply 1
6 Shunt Trip 24V DC (standard) 2
R Shunt Trip 110 V DC 3
OC Indicator (Code 10)
With 1 Without 0
