4.3.3 ED coil with external capacity bank

• In this option customer provides his own solution for releasing of the ED coil, by means of external capacity bank. In this
case NEKO control unit is not installed, and coil's connected directly to front panel of control box (-X2 :10/:11).
36/ _ X _ _ _ _ _

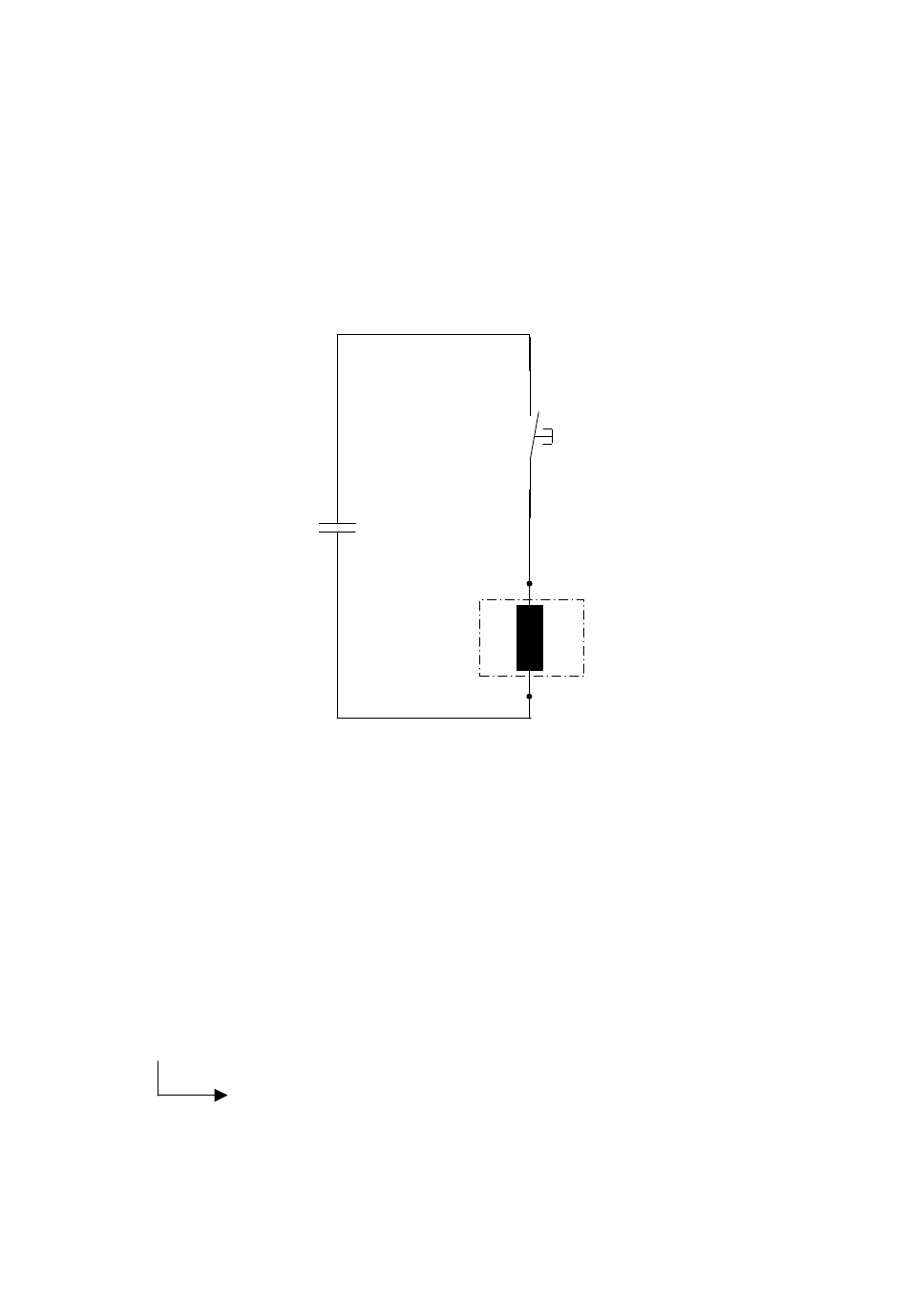

Fig. 24 ED coil with external C-bank
18
Capacity
bank:
U ~300V
F ~2000µF
Key position - 3
Key number – 0: Without ED coil.
Key number – 1: With ED coil and external C-bank.
