G E H 6 2 8 4 I N S T R U C T I O N S
Power Break® II Circuit Breaker Accessories
Shunt Trip and Shunt Trip with Lockout
Introduction
The Shunt Trip and Shunt Trip with Lockout accessories,
shown in Figures 1 and 2, can be installed in 800-4000
ampere frame Power Break®II circuit breakers. These
accessories allow the breaker to be tripped electrically from a
remote location.
In addition to providing a trip signal to the breaker, the
Shunt Trip accessories can be set up to interact with other
Power Break II accessories, when used with a MicroVersaTrip
PlusTM or MicroVersaTrip PM™ Trip Unit. DIP switches on
the rear of the breaker Trip Unit can configure the Shunt Trip
accessories to activate a Bell Alarm-Alarm Only accessory or
a Bell Alarm with Lockout accessory when a shunt trip
occurs. The Accessory
describes how this can be done. If the breaker is equipped
with a Power+™ Trip Unit, it is configured so that only
protection trips will activate a Bell Alarm­Alarm Only or Bell
Alarm with Lockout.
—

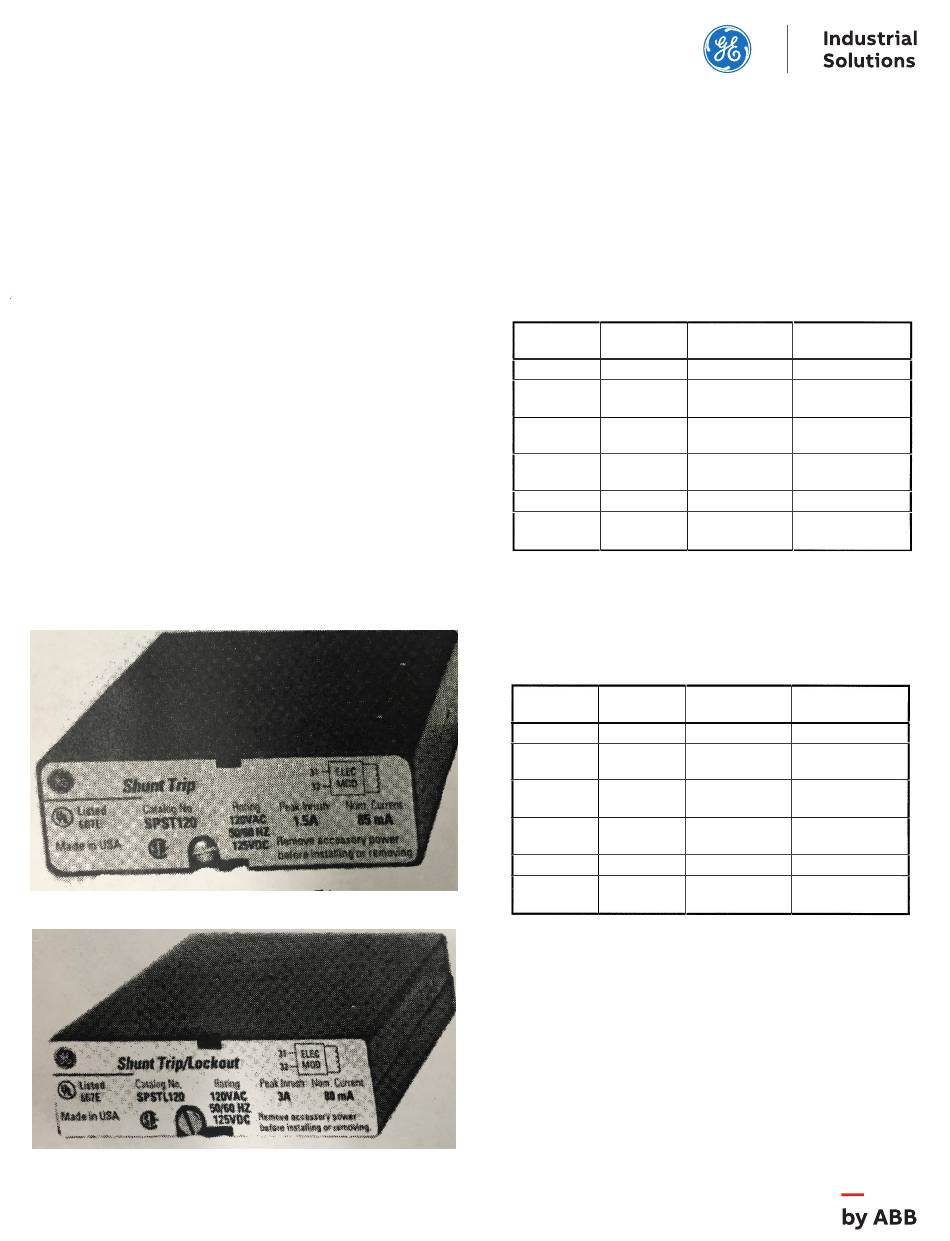

Figure 1. Shunt Trip.
—
Figure 2. Shunt Trip with Lockout.
Configuration section
The catalog numbers for various voltage applications are
listed in Table 1 for the Shunt Trip and in Table 2 for the Shunt
Trip with Lockout.
Catalog
Number
SPST012
SPST024
SPST048
SPST120
SPST208
SPST240
below
(1)
24-240 Vac devices are rated for 50/60 Hz.
(2) Peak inrush current is present for 2-6 ms after activation.
This number is provided so that fuses and supplies can be chosen
appropriately.
—
Table 1. Catalog numbers and voltages for the Shunt Trip.
Catalog
Number
SPSTL012
SPSTL024
SPSTL048
SPSTL120
SPSTL208
SPSTL240
—
Table 2 Catalog numbers and voltages for the Shunt Trip with Lockout.
Operation
Apply control voltage to terminals 31 and 32 of the terminal
strip on the right side of the breaker to trip the circuit
breaker. The Shunt Trip will cause the circuit breaker to trip
when the control voltage is greater than 75% of the rated de
voltage or 55% of the rated ac voltage. Control power to the
Shunt Trip must be removed before the breaker can be
closed. Control power to the Shunt Trip with Lockout must
be removed for a minimum of 0.25 second before the breaker
can be closed.
Voltage Peak Inrush
Rating (1) Current, A (2)
3.0
12 Vdc
24 Vac
1.5
24 Vdc
48 Vac
1.5
Vdc
48
120 Vac
1.5
125 Vdc
208 Vac 1.5
240 Vac
1.5
250 Vdc
Voltage
Peak Inrush
Rating (1)
Current, A (2)
19
12 Vdc
24 Vac
15
Vdc
24
48 Vac
7.5
48 Vdc
120 Vac
3.0
125 Vdc
208 Vac 1.9
240 Vac
1 .5
250 Vdc
Nominal RMS
Current, mA
200
140
110
85
50
40
Nominal RMS
Current, mA
300
300
200
80
60
45
