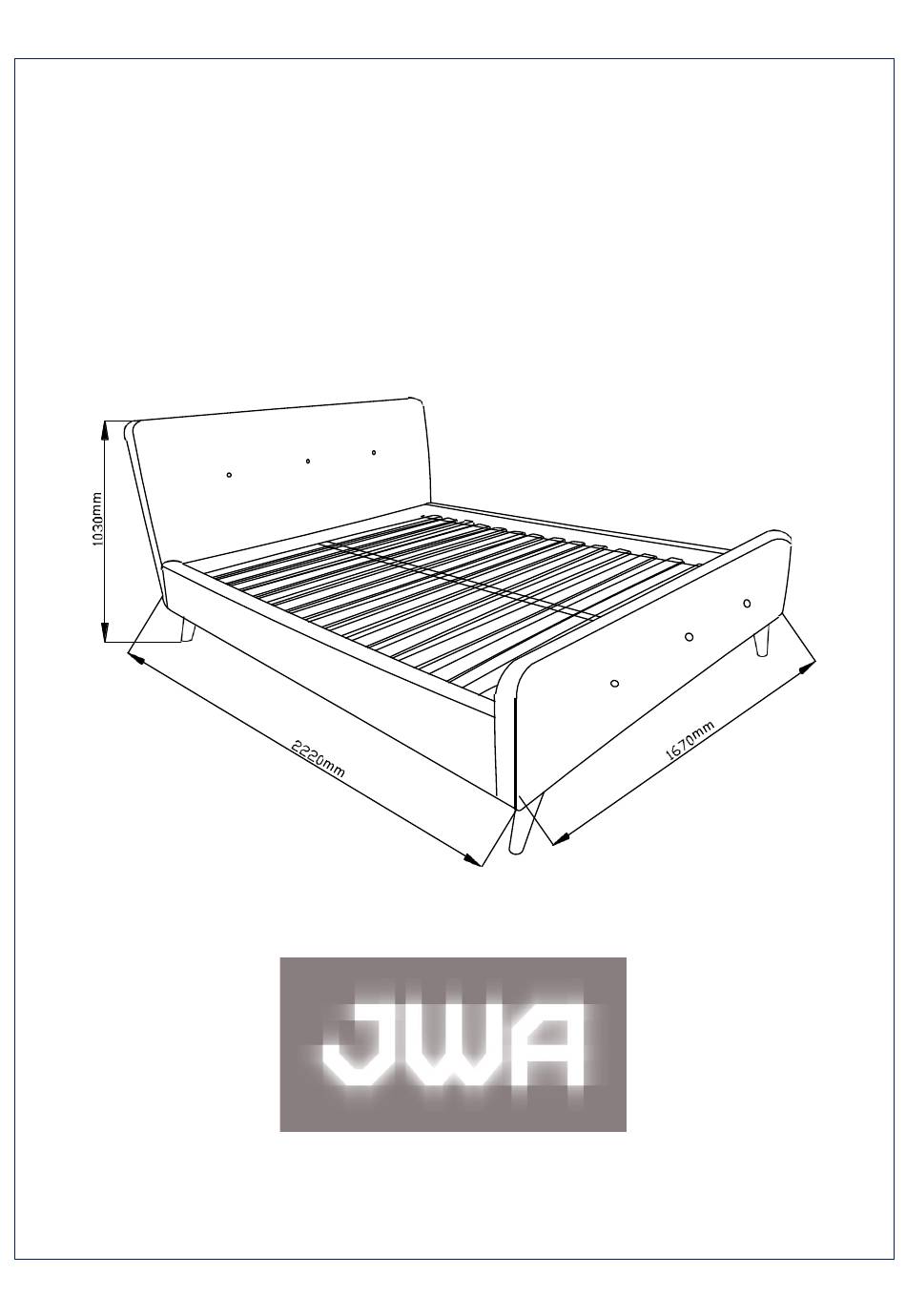

- Page 1 ASSEMBLY INSTRUCTION RAINEY Navy Queen Bed 68330 INSERT PAGE NUMBER Imported by JWA Furniture Pty Ltd, Qld, Brisbane Australia. For any assistance with assembly or for missing parts please refer to your receipt...
-
Page 2: Pre-Assembly Preparation
PRE-ASSEMBLY PREPARATION Before you start: 1. Choose a clean, level, spacious assembly area. Avoid hard surfaces that may damage the product 2. Take care when lifting. Product should be assembled as near as possible to the point of use 3. Ensure that you have all required contents for complete assembly 4. -
Page 3: Parts List
PARTS LIST M8X19 M5X100 M4X30 M8X40 M8X30 2 Side Rails Headboard 4 Centre rail Footboard Support legs 6 Slats Feet... - Page 4 STEP 1: • Prepare a floor with a blanket or cardboard. • Lay the Headboard(1) down in its back. • Thread a bolt(G) through Spring washer(H) and Washer(A). Do this for All 12 Bolts(G). • Attach 2 x Feet(7), as shown below. With 2 x bolt(G) sets per feet.
- Page 5 STEP 2: • Repeat Step 1, but this time for the Footboard(3)
- Page 6 STEP 3: • Unscrew the bolts in the Headboard(1) and Footboard(3), so they are half way out, with Allen Key(B) • Have a 2 person hold the headboard. • Attach the one of the Side Rails(2) to the Headboard(1), by clipping the bracket onto the bolts. Place the tongs of the brackets in-between the washer and headboard.
- Page 7 STEP 4: • Attach the Centre Rail(4) to the Headboard(1) and Footboard(3), as shown below. • Use 4x Bolts(G) paired with Washer(A). Fasten with Allen Key(B). STEP 5: • Now go around and tighten all the bolts from step 3. Use Allen Key(B)
- Page 8 STEP 6: • Attach the 2 x support legs(5) to the Centre Rail(4). As shown below. • Thread Bolt(F) Through Washer(A). Then push the bolt through the holes on the Centre Rail and Support Leg. Screw on Nut(D) on the bottom onto Bolt(F). Tighten bolt(F) with Allen Key(B), whilst holding nut(D) in-place with Wrench(C).
- Page 9 STEP 8: • Place the slats(6) into the bed, as shown below. • Secure the ends of the slats to the side rails with screw (E) and a Philips head screw driver. ASSEMBLY IS COMPLETE...
-
Page 10: Regular Care
REGULAR CARE: • Protect from direct sunlight • Vacuum regularly using low suction • Rotate reversible cushions regularly CLEANING: •Do not remove cushion covers for separate cleaning even though they may have zippers • Do not wash, Do not dry clean, Do not shampoo clean •Clean with hot water extraction machine.
